Distech Controls EC-Multi-Sensor-BLE Installation Manual

EC-Multi-Sensor-BLE
Ceiling mounted multi-sensor with Bluetooth

Product Description

The EC-Multi-Sensor-BLE combines a motion detector, a light sensor, a temperature sensor, and a Bluetooth transceiver in a single compact device.
This allows to receive input signals from a mobile application and to acquire presence, light level and temperature information to control all comfort pa-
rameters in a room according to the occupancy status.
The sensor can be directly connected to an ECLYPSE controller or an expansion module with a digital RJ-45 link, or daisy-chained using an ECx-Sub-
net-Adapter. It can be used alone, or with a mobile application. An LED light provides a visual feedback during the commissioning process and mobile
app use.

General Installation Requirements

For proper installation and subsequent operation of this product, pay special attention to the following recommendations:
£ Keep this product at room temperature for at least 24 hours before installation to allow any condensation that may have accumulated due to low
temperature during shipping/storage to evaporate.
£
Upon unpacking the product, inspect the contents of the carton for shipping damages. Do not install damaged modules.
£
Avoid areas where corroding, deteriorating, or explosive vapors, fumes or gases may be present.
£
Do not install onto a direct sunlight source.
£
Do not install close to airflow (fan coil unit, ceiling air diffuser, etc.).
£
The product's datasheet specifies the power consumption (amount of heat generated), the operating temperature range, and other environmental
conditions the product is designed to operate under.
£
Do not drop the product or subject it to physical shock.
Operating, handling, or servicing this product should be ensured by a qualified operator. Turn off the power
before any kind of servicing.
Any type of modification to any Distech Controls product will void the product's warranty
If the sensor is used and/or installed in a manner not specified by Distech Controls, the functionality and the protection provided by the
sensor may be impaired.
Take reasonable precautions to prevent electrostatic discharges to the product when installing, servicing, or
operating it. Discharge any accumulated static electricity by touching a grounded object with your hand before
handling the product.
®
low energy technology
Motion Sensor
Luminosity Level Sensor

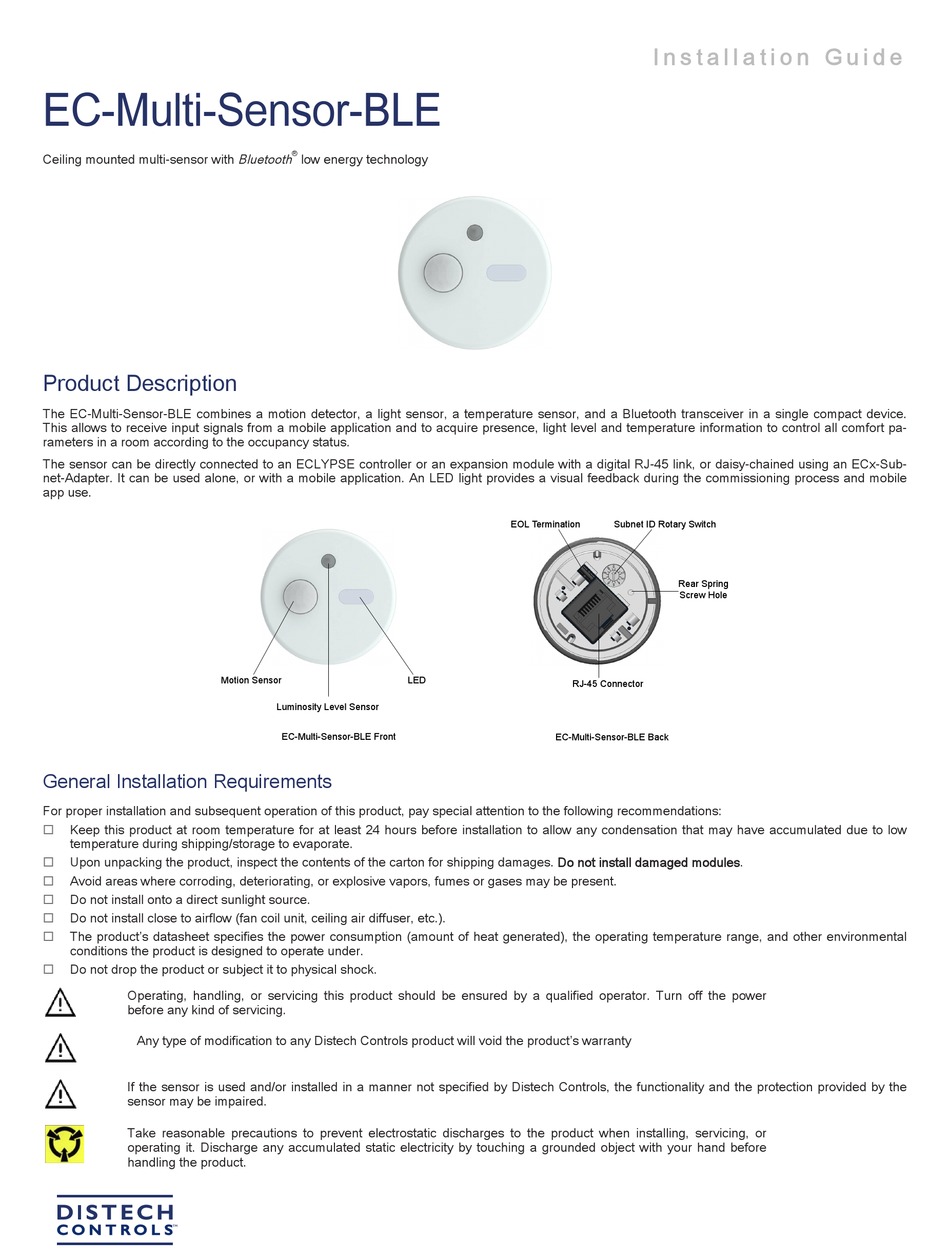

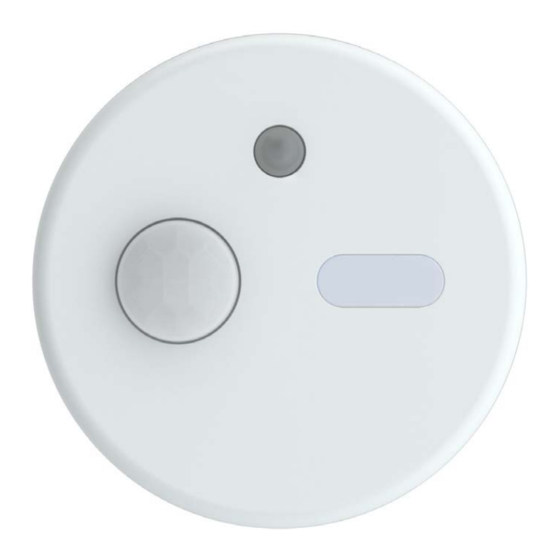

EC-Multi-Sensor-BLE Front
EOL Termination
LED
RJ-45 Connector
EC-Multi-Sensor-BLE Back
I n s t a l l a t i o n G u i d e
Subnet ID Rotary Switch
Rear Spring
Screw Hole
