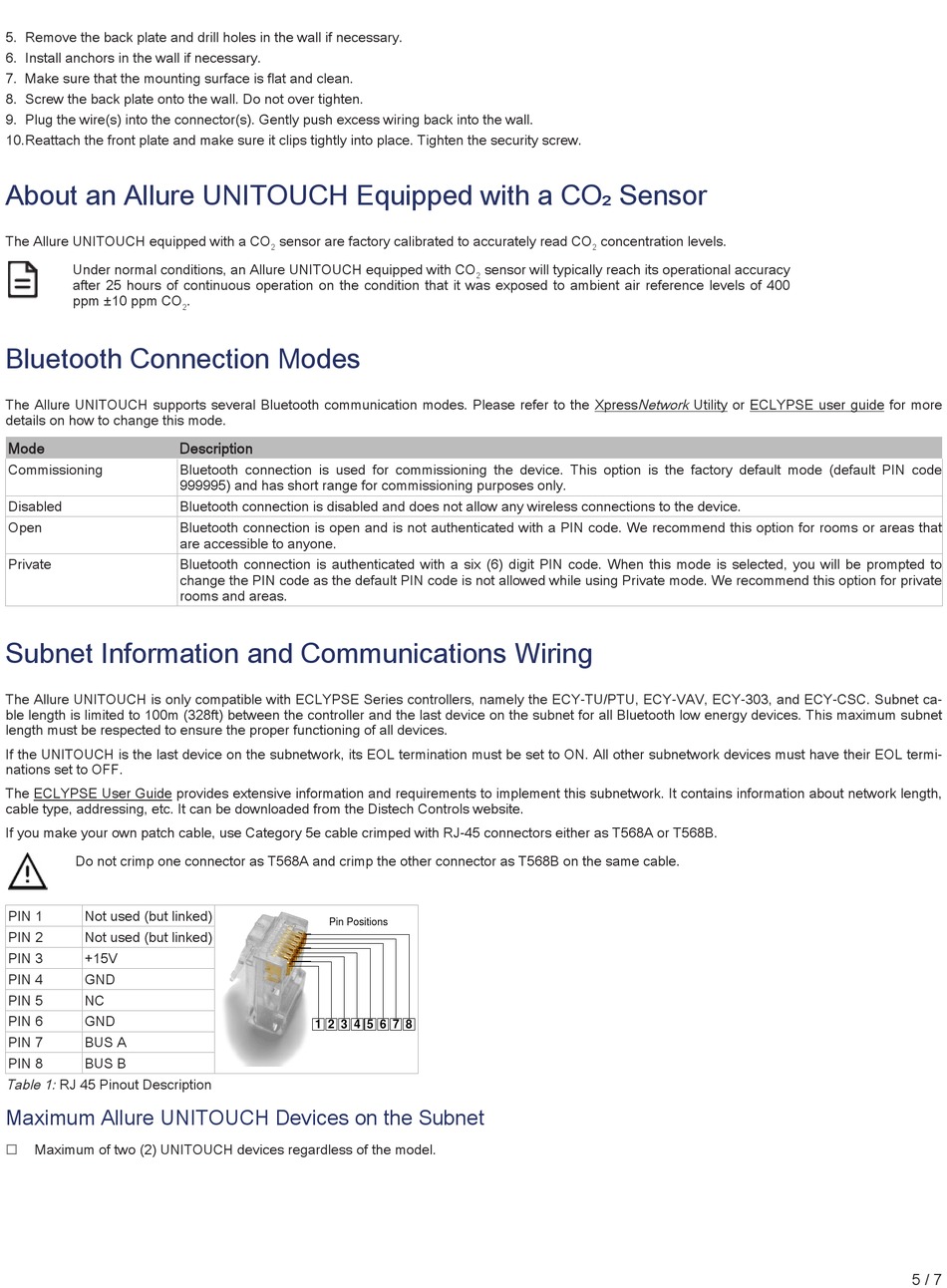

5. Remove the back plate and drill holes in the wall if necessary.
6. Install anchors in the wall if necessary.
7. Make sure that the mounting surface is flat and clean.
8. Screw the back plate onto the wall. Do not over tighten.
9. Plug the wire(s) into the connector(s). Gently push excess wiring back into the wall.
10.Reattach the front plate and make sure it clips tightly into place. Tighten the security screw.
About an Allure UNITOUCH Equipped with a CO₂ Sensor
The Allure UNITOUCH equipped with a CO
Under normal conditions, an Allure UNITOUCH equipped with CO
after 25 hours of continuous operation on the condition that it was exposed to ambient air reference levels of 400
ppm ±10 ppm CO
2

Bluetooth Connection Modes

The Allure UNITOUCH supports several Bluetooth communication modes. Please refer to the Xpress Network Utility or ECLYPSE user guide for more
details on how to change this mode.
Mode Description
Commissioning Bluetooth connection is used for commissioning the device. This option is the factory default mode (default PIN code
999995) and has short range for commissioning purposes only.
Disabled Bluetooth connection is disabled and does not allow any wireless connections to the device.
Open Bluetooth connection is open and is not authenticated with a PIN code. We recommend this option for rooms or areas that
are accessible to anyone.
Private Bluetooth connection is authenticated with a six (6) digit PIN code. When this mode is selected, you will be prompted to
change the PIN code as the default PIN code is not allowed while using Private mode. We recommend this option for private
rooms and areas.

Subnet Information and Communications Wiring

The Allure UNITOUCH is only compatible with ECLYPSE Series controllers, namely the ECY-TU/PTU, ECY-VAV, ECY-303, and ECY-CSC. Subnet ca-
ble length is limited to 100m (328ft) between the controller and the last device on the subnet for all Bluetooth low energy devices. This maximum subnet
length must be respected to ensure the proper functioning of all devices.
If the UNITOUCH is the last device on the subnetwork, its EOL termination must be set to ON. All other subnetwork devices must have their EOL termi-
nations set to OFF.
The ECLYPSE User Guide provides extensive information and requirements to implement this subnetwork. It contains information about network length,
cable type, addressing, etc. It can be downloaded from the Distech Controls website.
If you make your own patch cable, use Category 5e cable crimped with RJ-45 connectors either as T568A or T568B.
Do not crimp one connector as T568A and crimp the other connector as T568B on the same cable.
PIN 1 Not used (but linked)
PIN 2 Not used (but linked)
PIN 3 +15V
PIN 4 GND
PIN 5 NC
PIN 6 GND
PIN 7 BUS A
PIN 8 BUS B
Table 1: RJ 45 Pinout Description

Maximum Allure UNITOUCH Devices on the Subnet

£
Maximum of two (2) UNITOUCH devices regardless of the model.
sensor are factory calibrated to accurately read CO
2
.
Pin Positions
1 2 3 4 5 6 7 8
concentration levels.
2
sensor will typically reach its operational accuracy
2
5 / 7
