Distech Controls Allure UNITOUCH Instruction Manual page 3

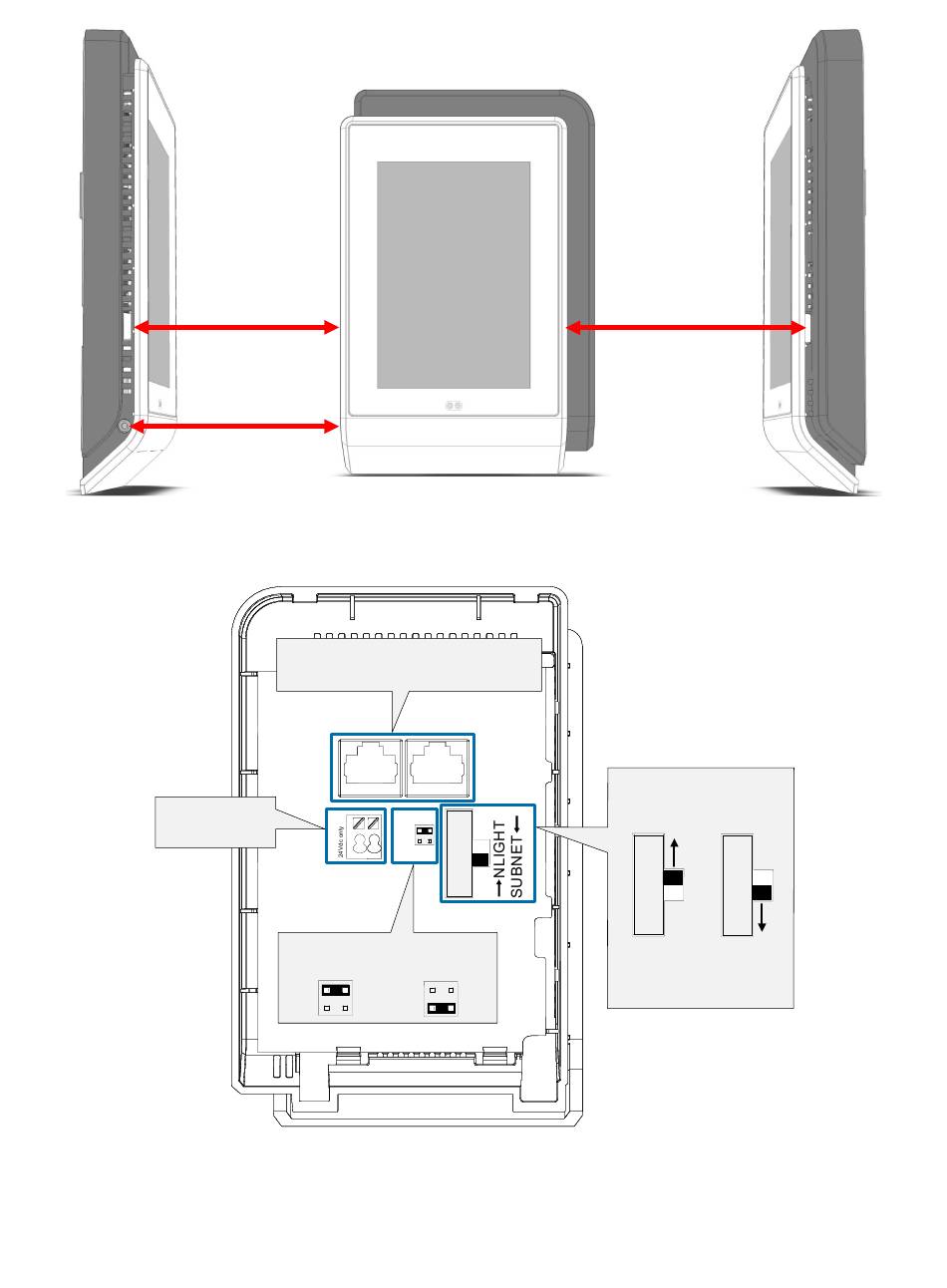

Figure 2: UNITOUCH Security Screw and Faceplate Tab Locations
Not currently
supported
Figure 3: UNITOUCH Jumper and Dip Switch Locations
Faceplate
release tab
Security screw
Front Cover Rear View
Pass-Though Subnetwork RJ-45
Subnetwork End of Line
Disabled
Connectors
EOL
OFF
EOL
ON
Enabled
Faceplate
release tab
Protocol Switch
Up Down
Position Position
nLight Subnet
Enabled Enabled
not currently factory default
( ) ( )
supported position
3 / 7
