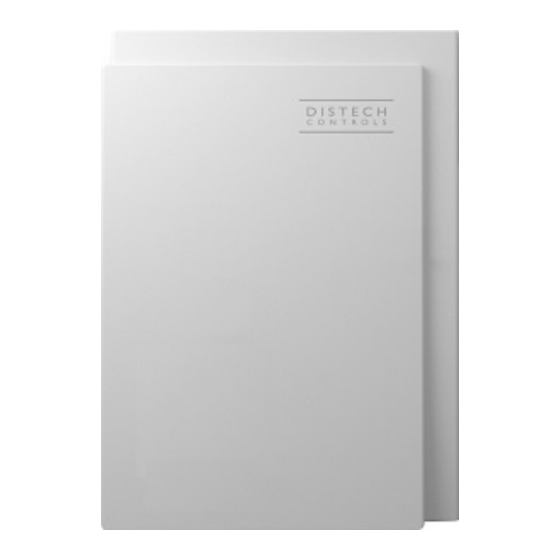

Allure™ EC-Smart-Air Series
Product Description
The Allure EC-Smart-Air communicating sensors combine precise environmental sensing for temperature, humidity and CO
enclosure.
This document describes the hardware installation procedures for the Allure EC-Smart-Air Series sensors. This line of communicating sensors consists
of the following models:
£
Allure EC-Smart-Air
£
Allure EC-Smart-Air-H
£
Allure EC-Smart-Air-C
£
Allure EC-Smart-Air-CH
General Installation Requirements
For proper installation and subsequent operation of the device, pay special attention to the following recommendations:
£
It is recommended that the product(s) be kept at room temperature for at least 24 hours before installation to allow any condensation that may have
accumulated due to low temperature during shipping/storage to evaporate.
£
Upon unpacking the product, inspect the contents of the carton for shipping damages. Do not install damaged modules.
£
The device is designed to operate under such environmental conditions as specified in its datasheet.
£
Ensure proper ventilation of the device and avoid areas where corroding, deteriorating or explosive vapors, fumes or gases may be present.
£
Do not drop the device or subject it to physical shock.
£
If the device is used and/or installed in a manner not specified by Distech Controls, the functionality and the protection provided by the device may
be impaired.
£
To ensure reading accuracy, handle the sensor with care, and avoid installing it on a vibrating surface.
Make connections to the product last. Yanking the cable while it is attached to the product can damage the
connector.
Any type of modification to any Distech Controls product will void the product's warranty.
Take reasonable precautions to prevent electrostatic discharges to the product when installing, servicing, or
operating it. Discharge any accumulated static electricity by touching a grounded object with your hand before
handling the product.
I n s t a l l a t i o n G u i d e
in a discrete and alluring
2
