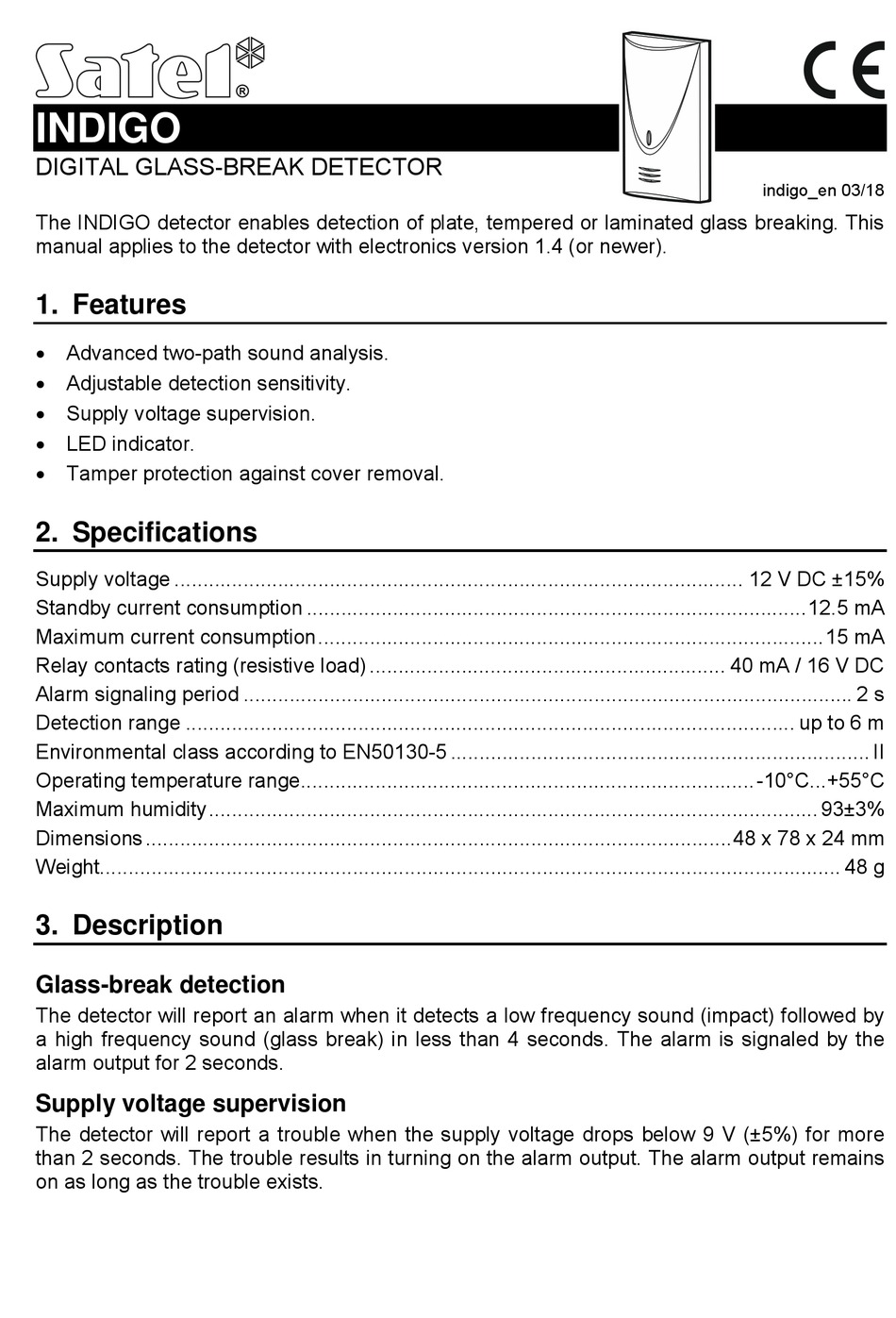

INDIGO

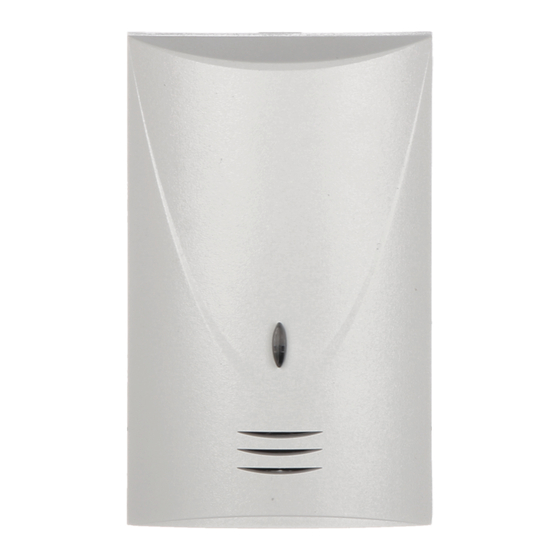

DIGITAL GLASS-BREAK DETECTOR
indigo_en 03/18
The INDIGO detector enables detection of plate, tempered or laminated glass breaking. This
manual applies to the detector with electronics version 1.4 (or newer).
1. Features
Advanced two-path sound analysis.
Adjustable detection sensitivity.
Supply voltage supervision.
LED indicator.
Tamper protection against cover removal.
2. Specifications
Supply voltage ................................................................................................... 12 V DC ±15%
Standby current consumption .......................................................................................12.5 mA
Maximum current consumption........................................................................................15 mA
Relay contacts rating (resistive load) .............................................................. 40 mA / 16 V DC
Alarm signaling period .......................................................................................................... 2 s
Detection range .......................................................................................................... up to 6 m
Environmental class according to EN50130-5 ......................................................................... II
Operating temperature range...............................................................................-10°C...+55°C
Maximum humidity.......................................................................................................... 93±3%
Dimensions ......................................................................................................48 x 78 x 24 mm
Weight................................................................................................................................. 48 g
3. Description
Glass-break detection
The detector will report an alarm when it detects a low frequency sound (impact) followed by
a high frequency sound (glass break) in less than 4 seconds. The alarm is signaled by the
alarm output for 2 seconds.
Supply voltage supervision
The detector will report a trouble when the supply voltage drops below 9 V (±5%) for more
than 2 seconds. The trouble results in turning on the alarm output. The alarm output remains
on as long as the trouble exists.
Advertisement
Table of Contents
Related Manuals for Satel INDIGO
Summary of Contents for Satel INDIGO
- Page 1 INDIGO DIGITAL GLASS-BREAK DETECTOR indigo_en 03/18 The INDIGO detector enables detection of plate, tempered or laminated glass breaking. This manual applies to the detector with electronics version 1.4 (or newer). 1. Features Advanced two-path sound analysis. Adjustable detection sensitivity.
- Page 2 INDIGO SATEL Electronics board terminal block: - alarm output (NC relay), TMP - tamper output (NC), COM - common ground, +12V - power input. tamper switch. LED ON/OFF pins to enable/disable the LED indicator (jumper installed – LED enabled; jumper removed – LED disabled).
- Page 3 9. Put the detector at the planned installation place. 10. Power up the detector. 11. Place the INDIGO TESTER close to the protected glass and use it to generate a glass- break sound. 12. If the detector reports an alarm, proceed to the next steps. If the detector fails to report an alarm, increase sensitivity or select another installation location and repeat the test.
- Page 4 6. Connect wires to the terminals. 7. Close the detector enclosure. The declaration of conformity may be consulted at www.satel.eu/ce SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND tel. +48 58 320 94 00 www.satel.eu...
