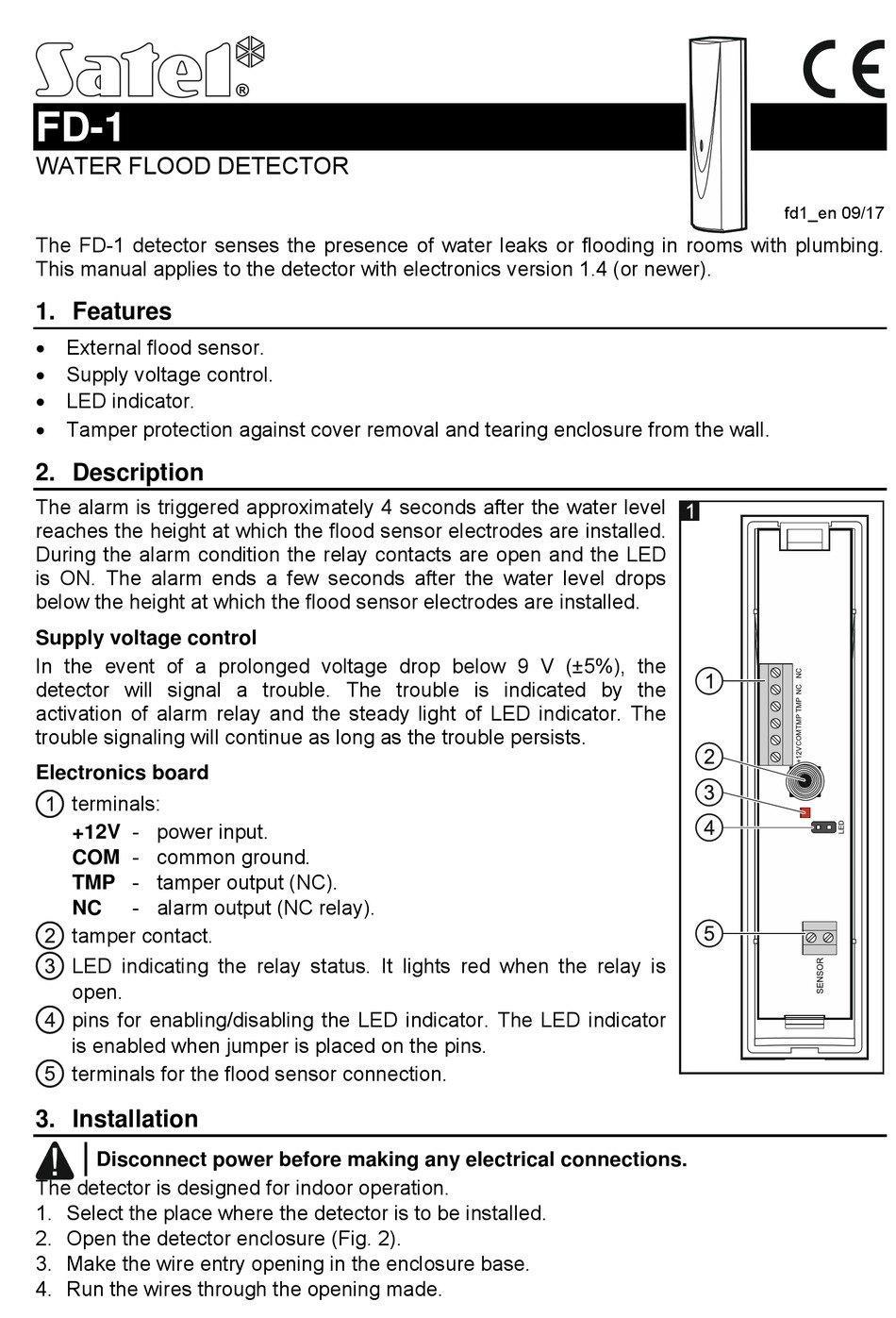

Satel FD-1 Quick Start Manual

FD-1

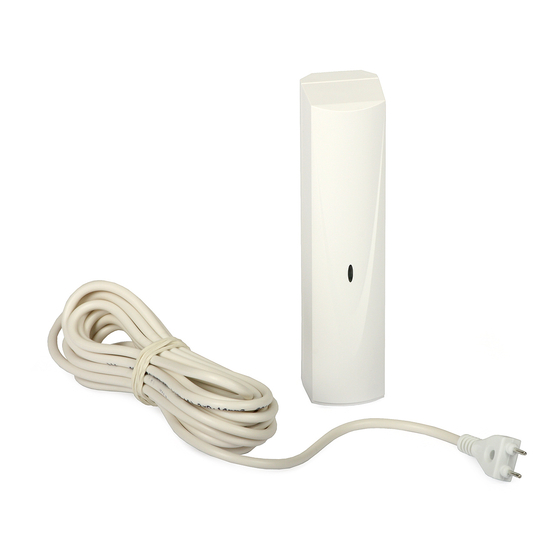

WATER FLOOD DETECTOR
The FD-1 detector senses the presence of water leaks or flooding in rooms with plumbing.
This manual applies to the detector with electronics version 1.4 (or newer).

1. Features

 External flood sensor.
 Supply voltage control.
 LED indicator.
 Tamper protection against cover removal and tearing enclosure from the wall.

2. Description

The alarm is triggered approximately 4 seconds after the water level
reaches the height at which the flood sensor electrodes are installed.
During the alarm condition the relay contacts are open and the LED
is ON. The alarm ends a few seconds after the water level drops
below the height at which the flood sensor electrodes are installed.
Supply voltage control
In the event of a prolonged voltage drop below 9 V (±5%), the
detector will signal a trouble. The trouble is indicated by the
activation of alarm relay and the steady light of LED indicator. The
trouble signaling will continue as long as the trouble persists.
Electronics board
terminals:
+12V - power input.
COM - common ground.
TMP - tamper output (NC).
- alarm output (NC relay).
NC
tamper contact.
LED indicating the relay status. It lights red when the relay is
open.
pins for enabling/disabling the LED indicator. The LED indicator
is enabled when jumper is placed on the pins.
terminals for the flood sensor connection.

3. Installation

Disconnect power before making any electrical connections.
The detector is designed for indoor operation.
1. Select the place where the detector is to be installed.
2. Open the detector enclosure (Fig. 2).
3. Make the wire entry opening in the enclosure base.
4. Run the wires through the opening made.
fd1_en 09/17
