OPERATION APPROACH

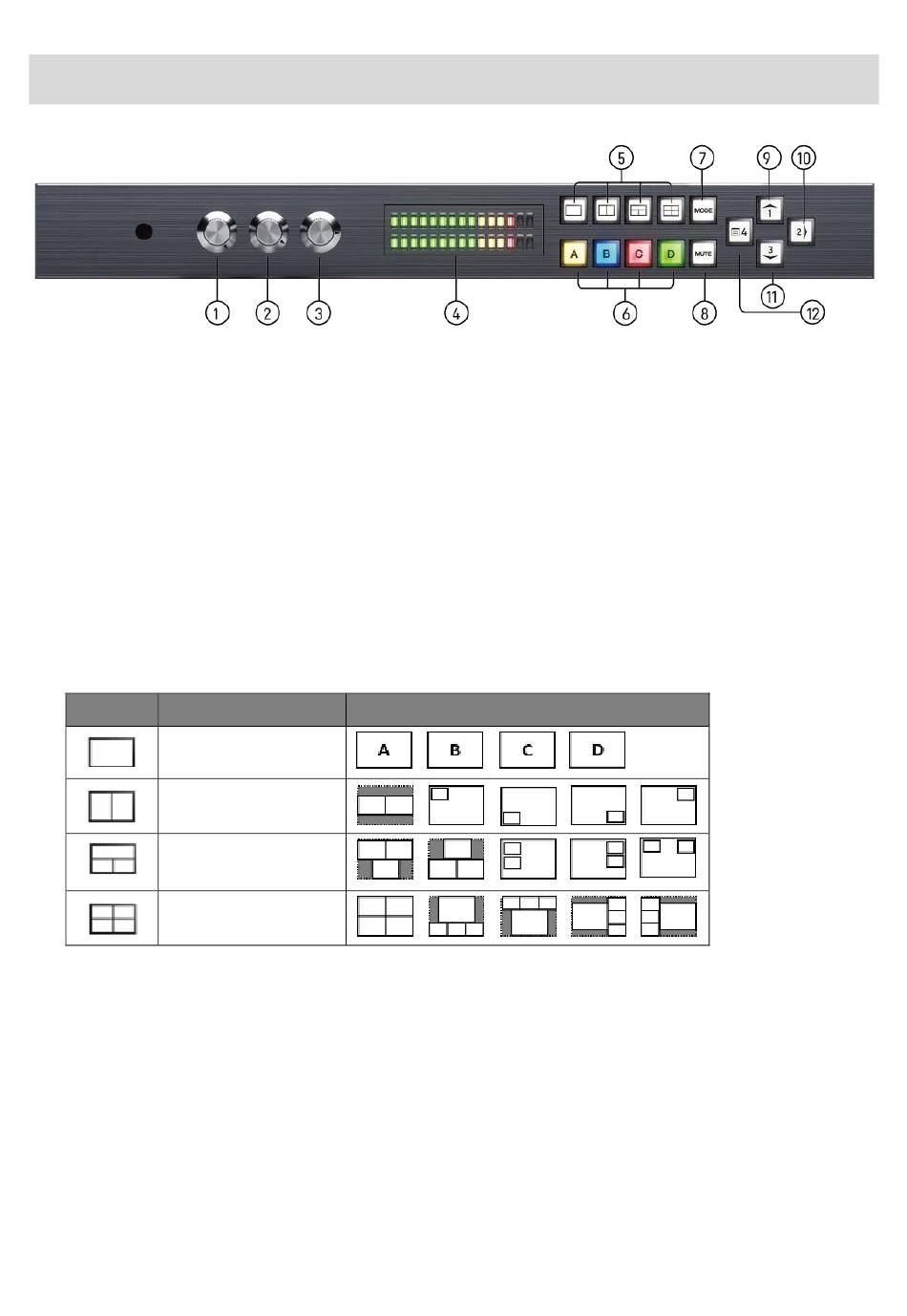

Method A: Front Panel Control
1. Line In Volume Knob
To adjust the line in sound level
2. HDMI In Volume Knob
To adjust the HDMI in sound level
3. Primary Volume Knob
To adjust the line in and HDMI in sound level together
4. LED VU Meter Display
To show audio output activity
5. Video Layout Selected Button
Select full screen, dual-view, triple-view and quad-view mode. User can switch default layout
mode by repressing video layout button.
Button Layout Mode
Full screen mode
Dual-view mode
Triple-view mode
Quad-view mode
6. Windows Selected Button
User can assign arbitrary video source to every display windows. Firstly, press one of the
windows A-D buttons. Next, press one of input 1-4 buttons to select the source of selected
windows.
(1) Windows A (Yellow):
(2) Windows B (Blue):
(3) Windows C (Red):
(4) Windows D (Green):
Default layout mode
