Operation temperature
Storage temperature
Relative humidity

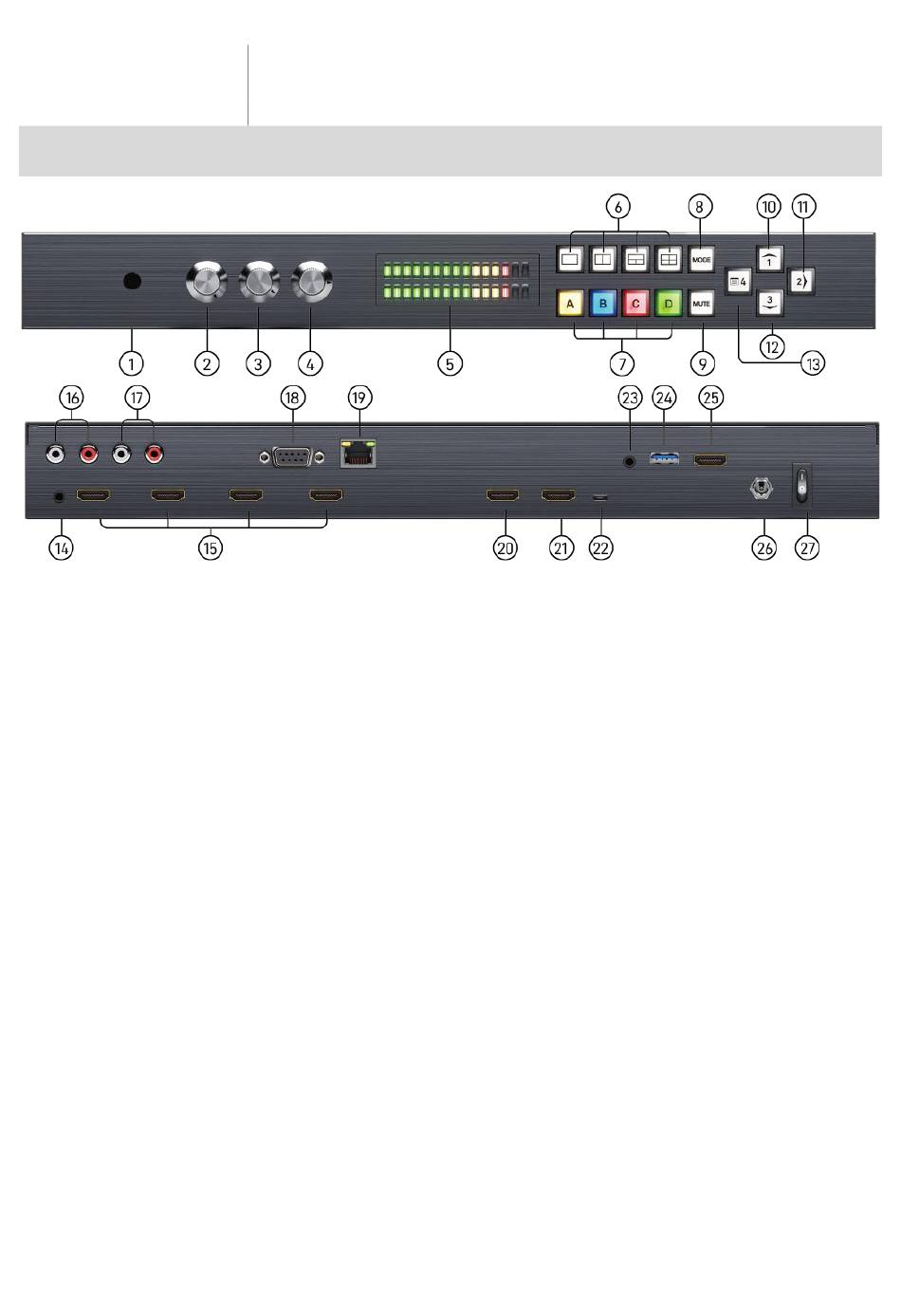

PANEL DESCRIPTIONS

1. IR SENSOR: IR sensor for receiving the IR commands from IR remote
2. LINE IN Volume Knob: to adjust the line in sound level
3. HDMI IN Volume Knob: to adjust the HDMI in sound level
4. PRIMARY Volume Knob: to adjust the line in and HDMI in sound level together
5. LED VU Meter Display: Shows audio output activity
6. Video Layout Selected Button: Select full screen, dual-view, triple-view and quad-view mode
7. Windows Selected Button: Selected windows A-D
8. Video Mode Switched Button: Switch to extend mode or mirror mode
9. Mute Button: Turn off the audio or audio/video
10. Arrow(up)/ Input 1 Button
11. Arrow(right)/ Input 2/ Enter/ Audio Source Button
12. Arrow(down)/ Input 3 Button
13. Arrow(left)/ Input 4/ OSD menu/ Lock Button
14. IR Receiver: 3.5mm socket for plugging in the extension cable of IR receiver
15. SOURCE 1-4: HDMI inputs
16. Stereo RCA(L/R) Out: Analogue audio output
17. Stereo RCA(L/R) In: Analogue audio input
18. RS-232: RS-232 control port
19. Ethernet: Ethernet control port
20. Primary HDMI OUT: HDMI output
21. Secondary HDMI OUT: HDMI output
22. Micro-USB: for F/W update
23. STEREO AUDIO OUT: Audio extracts from selected HDMI input
24. USB OUT: Connect to a USB host (PC, NB, MAC...); (capture video is the same as
0~40°C [32~104°F]
-20~60°C [-4~140°F]
20~90% RH [no condensation]
