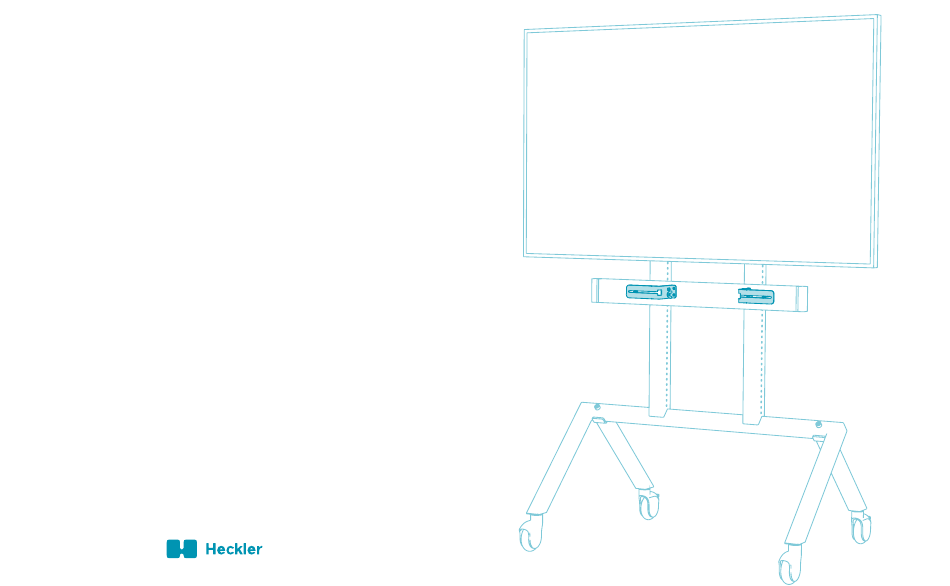

H707 - Soundbar Mount
for Heckler AV Cart
Compatible with most soundbar and soundbar-shaped devices with M4,
M5, or 1/4-20 mounting points spaced apart from 74 mm to 726 mm.
If you have any questions, please contact Heckler.
service@hecklerdesign.com
844-432-5930
Advertisement
Related Manuals for HECKLER H707
Summary of Contents for HECKLER H707
- Page 1 H707 - Soundbar Mount for Heckler AV Cart Compatible with most soundbar and soundbar-shaped devices with M4, M5, or 1/4-20 mounting points spaced apart from 74 mm to 726 mm. If you have any questions, please contact Heckler. service@hecklerdesign.com 844-432-5930...
- Page 2 IN THE BOX Soundbar Mounting Bracket Hex Key, 5mm Screw, M6, 10mm Wingnut, M6 M4 Soundbar-mounting Hardware Set Screw, M4, 20mm Wingnut, M4 M5 Soundbar-mounting Hardware Set Screw, M5, 20mm Wingnut, M5 1/4”-20 Soundbar-mounting Hardware Set Screw, 1/4-20, 3/4” Wingnut, 1/4-20 For Mounting to H702 Device Panel Screw, M4, 12mm Hex Key, 2.5mm...
- Page 3 STEP 1 Fasten the appropriate size of set screws to the soundbar and measure the distance between the mounting points.
- Page 4 STEP 2 Determine your ideal soundbar position. Below the display. Above the display. Go to page 4. Go to page 11.
- Page 5 Mounting below the display STEP 3 Based on the distance between your soundbar's mounting points, determine the correct installation of the soundbar-mounting brackets. Option B Option C Option D Option A 74 to 273mm (3 to 10.75 inches) 273 to 400mm (10.75 to 15.75 inches) 400 to 585mm (15.75 to 23 inches) 585 to 726mm (23 to 28.5 inches) See Page 5...
- Page 6 Option A When the distance between your soundbar's mounting points are spaced 74 to 273mm (3 to 10.75 inches) apart.
- Page 7 Option B When the distance between your soundbar's mounting points are spaced 273 to 400mm (10.75 to 15.75 inches) apart.
- Page 8 Option C When the distance between your soundbar's mounting points are spaced 400 to 585mm (15.75 to 23 inches) apart.
- Page 9 Option D When the distance between your soundbar's mounting points are spaced 585 to 726mm (23 to 28.5 inches) apart.
- Page 10 STEP 4 Fasten the wingnuts and install the soundbar.
- Page 11 To create improved access to your mounting points in the event that you soundbar's mounting points are positioned in front of the AV Cart vertical arms, remove the bottom two screws that fasten the soundbar-mounting brackets to the vertical arms, then swing your soundbar upwards.
- Page 12 Mounting above your display STEP 3 Install H702 Device Panel to Heckler AV Cart. Note that this step requires the use of H702 Device Panel for Heckler AV Cart.
- Page 13 STEP 4 Install the soundbar-mounting brackets to the hole pattern of Device Panel as needed to create alignment with your soundbar's mounting points. Note that the brackets can be installed closely to each other if needed. Example Example...
- Page 15 STEP 4 Fasten the wingnuts and install the soundbar.
- Page 16 Mount a pair of Logitech Rally speakers by using two H707 Soundbar Mount kits.
- Page 17 If you need to mount multiple sounbar-shaped devices, use multiple H707 Soundbar Mount kits.
