H570 - Dual Display Kit for AV Credenza
Beautifully executed video conferencing.

Advertisement

loading
Need help?

Need help?

Do you have a question about the H570 and is the answer not in the manual?

Questions and answers

Related Manuals for HECKLER H570

Summary of Contents for HECKLER H570

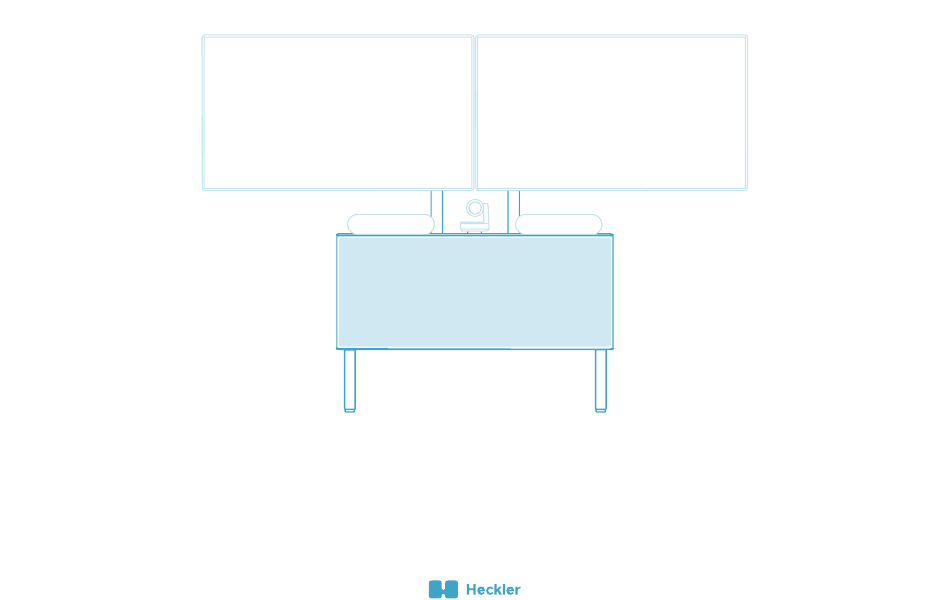

  • Page 1 H570 - Dual Display Kit for AV Credenza Beautifully executed video conferencing.
  • Page 2 Credenza, always install the legs. Failure to support the weight of one or more displays to the ground may result in injury. Always use H570 Dual Display Kit for AV Credenza in combination with the display supports and legs of H544 Support Kit. Failure to support the weight of one or more displays to the ground may result in injury.
  • Page 3 CAUTION: Shock Hazard AV Credenza is an aluminum enclosure and therefore is electrically conductive. Like all metal enclosures AV Credenza should be grounded by a professional to reduce the risk of shock due to static electricity or electrical shorts. AV Credenza features two ground lug locations for this purpose.

  • Page 4: Tools Needed

    IN THE BOX Lefthand - Dual Display Rail Righthand - Dual Display Rail Center Bracket Dual Display Rail Adapter Locknut M8 x 1.25mm 16 x Screw, M8 x 1.25mm Thread, 16mm Long Hex Key, 6mm SNAPTOGGLE Wall Anchors Screw, 3/8”, 3” Long Spacer Washer Display-Mounting Screws and Spacers...
  • Page 5 STEP 1 Install display support anchors 600mm apart. VESA 600mm Note: Display support anchors are included with H544 - Support Kit for AV Credenza.
  • Page 6 flush on the top face of the French cleat. For complete wall installation instructions, refer to the AV Credenza Instruction Guide. Go to heckler.design/H543 or scan the QR code below. For complete legs and display supports installation instructions, refer to the Support Kit for AV Credenza Instruction Guide.
  • Page 7 STEP 3 Fasten AV Credenza to the French cleat. Important Safety Step: Using the wingnuts provided, securely fasten the AV Credenza to the French cleat.
  • Page 8 Note the measurement. Distance A = Camera Mount is included with AV Credenza. For complete Camera Mount installation instructions, refer to the AV Credenza Instruction Guide Page 14. Go to heckler.design/H543 or scan the QR code below.
  • Page 9 STEP 5 Measure and note your display’s mounting positions. Measure B and C. Note the measurements. Distance B = Distance C =...
  • Page 10 STEP 6 Install display rail adapters to display supports. Use the three measurements you noted in the previous steps to locate the display rail adapters and fasten them in place. Display supports are included with H544 - Support Kit for AV Credenza. Front View...
  • Page 11 STEP 7 Route display and HDMI cables. Route power and HDMI cables from the bottom of the display supports through the exit points on the side of the display supports. Zip ties are included with H544 - Support Kit for AV Credenza.
  • Page 12 STEP 8 Install the display supports to AV Credenza. Important safety note: Use two people for this step.
  • Page 13 STEP 9 Assemble dual display rails.
  • Page 14 STEP 10 Temporarily install the dual display rails and mark hole positions. Level Notched side up. Notched side up. Temporarily fasten each dual display rail using the locknuts provided. Important note: Install each rail with the notched side up. Check each rail for straightness and level. Notched side up.
  • Page 15 STEP 11 Install SNAPTOGGLES wall anchors. Important notes: The following steps should be performed by a professional. Heavy-duty SNAPTOGGLE anchors, screws, and washers are provided for your convenience. A professional should determine if these fasteners are appropriate for your specific installation.
  • Page 16 How to install the SNAPTOGGLE wall anchors. Important note: SNAPTOGGLE anchors are compatible for use with steel wall studs. For more information go to Toggler.com. Drill a 3/4” hole. Hold metal Hold ends of straps together Place thumb between straps channel flat alongside plastic between thumb &...
  • Page 17 STEP 12 Install the dual display rails. Fasten each dual display rail using the Notched side up. Notched side up. locknuts provided. Install spacers with screws and washers provided to the wall anchors. Important note: Notched side up. Notched side up. Install each rail with the notched side up.
  • Page 18 STEP 13 Install rolling display anchors to your displays. H570 Dual Display Kit includes one set of display-mounting screws and spacers. The second set is included with H544 Support Kit. Important Notes: The following steps should be performed by a professional.
  • Page 19 STEP 14 Extend cables and double check the cable length. Before mounting each display, verify that you have ample power and HDMI cable length to reach their port locations and to easily connect these cables as you approach the display during mounting.
  • Page 20 STEP 15 Bring the display close to the Credenza and plug in the cables.
  • Page 21 STEP 16 Mount the first display to the dual display rails. Confirm the rolling display anchors are Align the rolling display anchors with the notches on the seated in the rails. display rails and gently set the display in place.
  • Page 22 Roll the display toward its center position. This will lock the display to the rail.
  • Page 23 STEP 17 Repeat Step 16 to mount the second display.
  • Page 24 STEP 18 Attach the front cover.
  • Page 25 Tip 1: Remove the displays. Roll the display all the way to the far end until the display rolling Lift the display and remove it anchors meet the wall anchoring screws. from the dual display rails.
  • Page 26 Tip 2: Roll both displays outward to access cables.
  • Page 27 Tip 3: Align displays. Gently push and pull the displays to create display alignment. Each rolling display anchor features 1/8” of forward adjustment to help align the front face of both displays.
