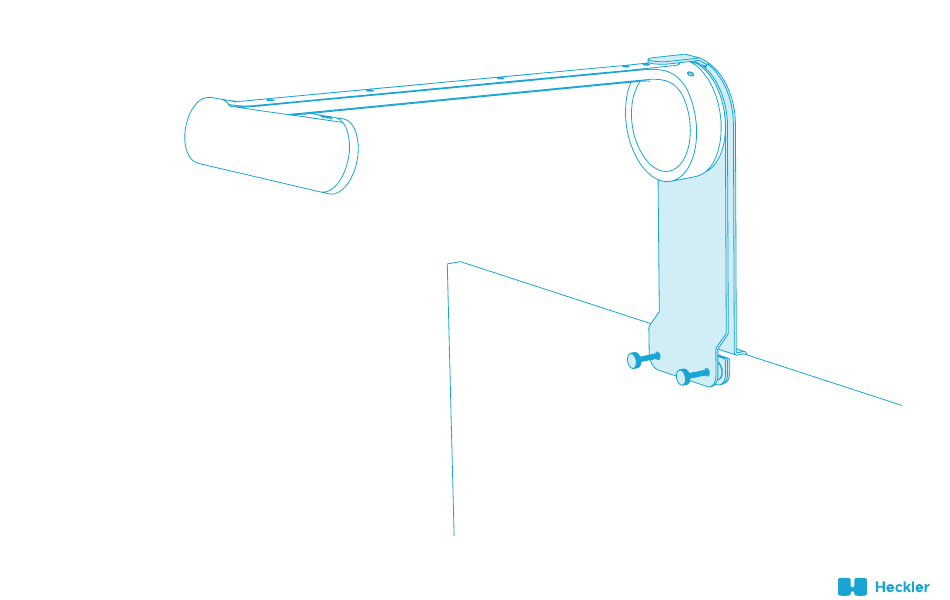

- Page 1 H876 - Whiteboard Mount for Logitech Scribe Designed & made in Arizona Patented...
- Page 2 Logitech Scribe, the whiteboard, and the doorway. This Mount is compatible with conventional and glass whiteboards varying in thickness from 5mm to 25mm. If you have any questions, please contact Heckler. service@hecklerdesign.com 844-432-5930...
- Page 3 IN THE BOX Whiteboard mount Stay-in-place tab Pan Head Screw, M4 x 0.7mm, 8mm Long Washer TOOL NEEDED Phillips Screwdriver...
- Page 4 STEP 1 Fasten the Scribe Camera Mounting Bracket to the Mount using the included screws and washers. Do not overtighten. The Camera Mounting Bracket is included with your Logitech Scribe.
- Page 5 STEP 2 Route the CAT5e cable between the front and rear surfaces of the mount as shown. Connect the CAT5e cable to the Logitech Scribe Camera. Hang and connect the Scribe Camera to its Camera Mounting Bracket. The CAT5e cable is included with your Logitech Scribe.
- Page 7 STEP 3 Fasten the stay-in-place tab as shown. Tip: The use of the stay-in-place tab is optional, but recommended when the Scribe Camera is mounted to mobile whiteboards.
- Page 8 STEP 4 Measure the width of your whiteboard and mark the center point of the board with a dry-erase marker. Position the mount so the mount's centering notch is aligned to the center line on your whiteboard. Important: Continue to support the weight of the mount and camera until the clamp is firmly engaged.
