H544 - Support Kit for AV Credenza
Beautifully executed video conferencing.

Advertisement

loading
Need help?

Need help?

Do you have a question about the H544 and is the answer not in the manual?

Questions and answers

Summary of Contents for HECKLER H544

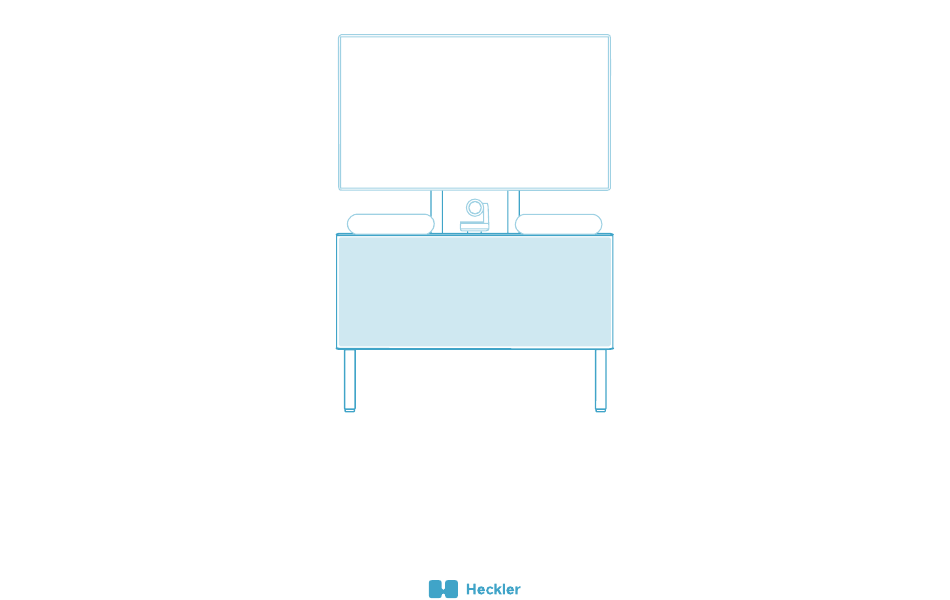

  • Page 1 H544 - Support Kit for AV Credenza Beautifully executed video conferencing.
  • Page 2 Always use H570 Dual Display Kit for AV Credenza in combination with the display supports and legs of H544 Support Kit. Failure to support the weight of one or more displays to the ground may result in injury.
  • Page 3 CAUTION: Shock Hazard AV Credenza is an aluminum enclosure and therefore is electrically conductive. Like all metal enclosures AV Credenza should be grounded by a professional to reduce the risk of shock due to static electricity or electrical shorts. AV Credenza features two ground lug locations for this purpose.
  • Page 4: Tools Needed

    IN THE BOX Display Support Display Support Anchor Screw, 10-32, 1/2" Long Hex Key, 1/8” Flanged Wingnut, 3/8"-16 Screw, 3/8"-16, 2-1/2" Long Hex Key, 5/16” Cable Tie Display-Mounting Screws and Spacers TOOLS NEEDED Level Tape Measure Power Drill Stud Finder 3/4”...
  • Page 5 STEP 1 Install display support anchors. VESA 800mm VESA 600mm VESA 400mm Measure the horizontal distance between your display’s VESA mounting positions. Fasten the display support anchors to the corresponding locations as shown below. VESA 400 VESA 600 VESA 800...
  • Page 6 STEP 2 Determine the height of AV Credenza and install legs. The standard height of AV Credenza with Support Kit positions the top surface of AV Credenza at 36” above finished floor. If you would like a 35” or 34” installation height, fasten the legs as shown below.
  • Page 7 STEP 3 Install 19” rack components and organize the devices and cables. For complete installation instructions, refer to the AV Credenza Instruction Guide Page 8-11. Go to heckler.design/H543 or scan the QR code below.
  • Page 8 Cleat Hole Position AFF 30” 29” 28” For complete French cleat installation instructions, refer to the AV Credenza Instruction Guide Page 6-7. Go to heckler.design/H543 or scan the QR code below. AV Credenza Top Surface 36” 30” 18” 12.75” AV Credenza Bottom Surface...
  • Page 9 STEP 5 Hang AV Credenza body to the French Cleat. Using two people, carefully hang AV Credenza body with legs to the French cleat. As you lower the AV Credenza to the cleat, take care to align the cleat's anchoring posts to the corresponding slots in the back wall of AV Credenza.
  • Page 10 STEP 6 Fasten AV Credenza to the French cleat. Important Safety Step: Using the wingnuts provided, securely fasten the AV Credenza to the French cleat.
  • Page 11 Note the measurement. Distance A = Camera Mount is included with AV Credenza. For complete Camera Mount installation instructions, refer to the AV Credenza Instruction Guide Page 14. Go to heckler.design/H543 or scan the QR code below.
  • Page 12 STEP 8 Fasten display supports to your display. Use measurement A and the notch that indicates the top of AV Credenza to position each display support to your display. Important Notes: The following steps should be performed by a professional. Select the appropriate screw to fasten each display support to your display.
  • Page 13 STEP 9 Route display and HDMI cables. Route power cables and HDMI cables from the bottom of the display support through the exit points on the side of the display support. Use the provided zip ties to secure the cables near their exit points. Tip: You may need to source long power cables and long HDMI cables to reach from the displays to the devices...
  • Page 14 STEP 10 Install the display supports to AV Credenza. Important safety note: Use two people for this step.
  • Page 15 STEP 11 Connect cables.
  • Page 16 STEP 12 Attach the front cover.
