Heckler AV

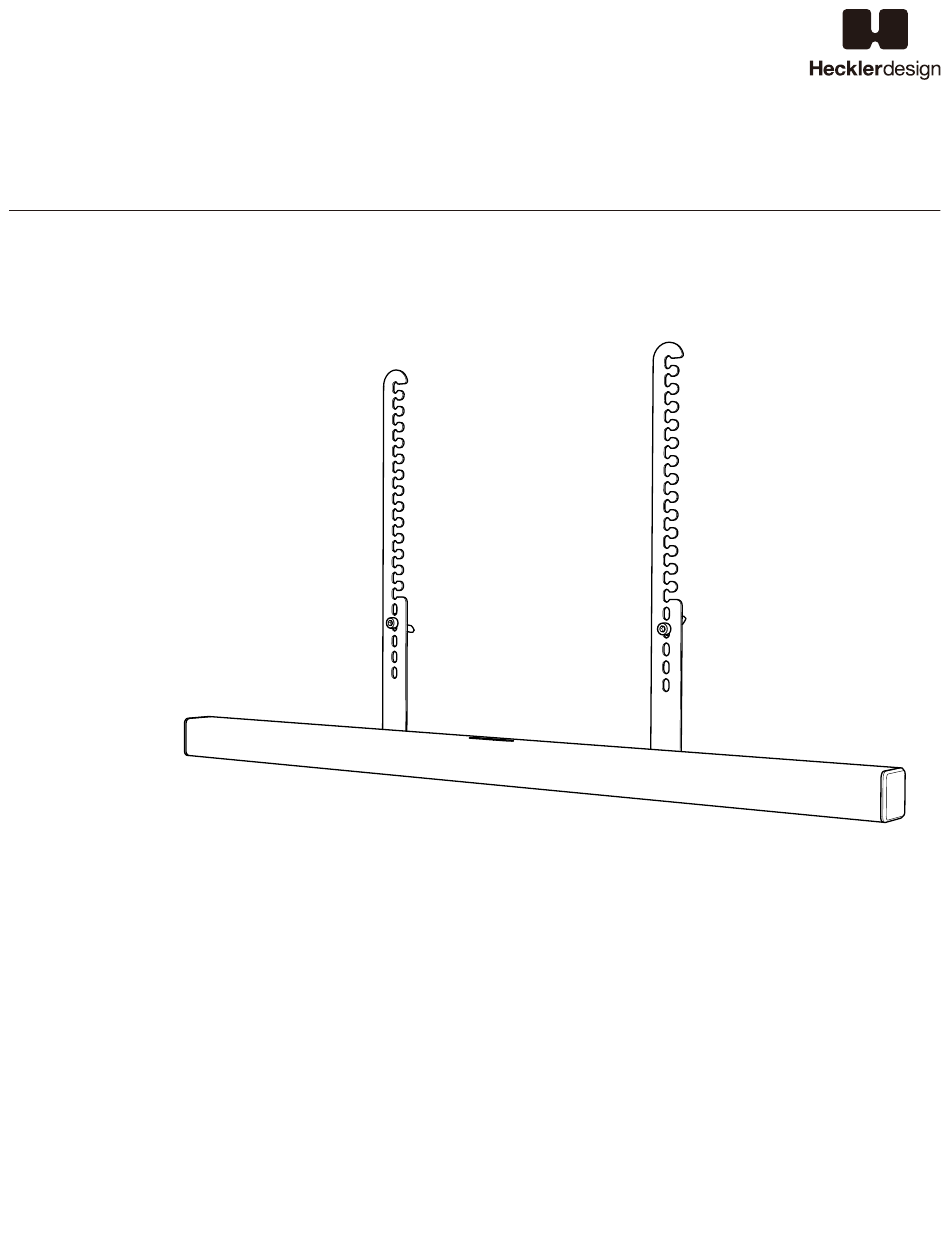

SOUNDBAR KIT
Soundbar Mounting Bracket for Heckler TV Stand & AV Cart
Assembly & Installation
Compatible with soundbars
35 inches wide and wider
Limited Warranty
Heckler Design warrants your product to be free from defect in material and
workmanship for a period of two years from the original date of purchase.
Electronic components are warranted to be free from defect for a period of one
year from the original date of purchase. If you discover a defect, please contact
service@hecklerdesign.com. Heckler Design will repair, at our discretion, using
new or refurbished components. If repair is not possible, Heckler Design will
replace the item.
H520

Advertisement

loading
Need help?

Need help?

Do you have a question about the SOUNDBAR KIT and is the answer not in the manual?

Questions and answers

Summary of Contents for HECKLER SOUNDBAR KIT

  • Page 1 Limited Warranty 35 inches wide and wider Heckler Design warrants your product to be free from defect in material and workmanship for a period of two years from the original date of purchase. Electronic components are warranted to be free from defect for a period of one year from the original date of purchase.
  • Page 2 Index Parts Soundbar bracket assembly Installation to Heckler TV Stand/AV Cart Rear-mounted/under-mounted soundbar Keyole-mounted soundbar...
  • Page 3 Assembly tool, (5/64, 2 inch) F165 M5 wingnut (0.8mm thread) F603 M4 wingnut (0.7mm thread) F602 M8 wingnut (1.25mm thread) F520...
  • Page 4 M5 set screw (0.8mm thread) F601 M4 set screw (0.7mm thread) F600 M4 keyhole-mounting screw (0.7mm thread) F604 Soundbar bracket stabilization magnet F596 Soundbar bracket stabilization screw F534 Soundbar Kit assembly screw F590...
  • Page 5 1 Assemble soundbar bracket F590 F165 2 Install magnets F596...
  • Page 6 3 Loosen display mounting hardware Heckler TV Stand Heckler AV Cart 4 Carefully pull lower edge of display forward Heckler TV Stand Heckler AV Cart...
  • Page 7 5 Hook soundbar bracket arms on threaded posts, between vertical arms & rubber spacers Heckler TV Stand Heckler AV Cart 6 Add rigidity to Soundbar Kit with secondary screws and wingnuts F534 F520 Heckler TV Stand Heckler AV Cart...
  • Page 8 7 Tighten TV mounting hardware Heckler TV Stand Heckler AV Cart...
  • Page 9 Rear-mounted/under-mounted Soundbar Under-mounted soundbars: use the under-mounted brackets included with your soundbar 8 Mount Soundbar F600 F602 F601 F603 Heckler TV Stand...
  • Page 10: Install Mounting Screws

    Keyhole-mounted Soundbar 9 Install mounting screws F604 F602 Heckler AV Cart...
  • Page 11 10 Hang soundbar on mounting screws Heckler TV Stand 11 Tighten wingnuts Heckler TV Stand...
  • Page 12 Heckler TV Stand Heckler AV Cart...
