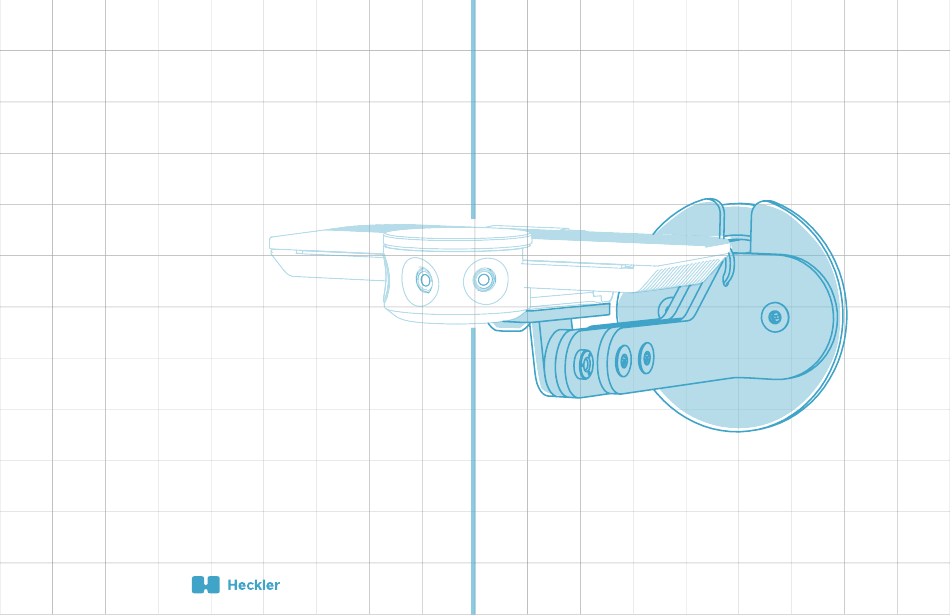

- Page 1 H582 - Cam Wall Mount for Jabra PanaCast...
- Page 2 IN THE BOX Cam Wall Mount Gangbox Wall Anchor Camera Mounting Screw Camera Mounting Key Assembly Key Wall Mounting Screw Cable Tie...
-
Page 3: Tools Needed
TOOLS NEEDED Tape Measure Power Drill Phillips 2” Drill Bit head Bit COMPONENTS NEEDED (Not Included) Jabra PanaCast Jabra PanaCast USB Cable If you have any questions, please contact service@hecklerdesign.com. - Page 4 STEP 1A Locate mounting position (single display) Important Notes: Locate and mark the ideal location for your Cam Wall Mount. It could be mounted underneath, above or beside the single display.
- Page 5 STEP 1B Locate mounting position (dual display) Important Notes: Locate and mark the ideal location for your Cam Wall Mount. It could be mounted underneath, in between, and above the dual display.
- Page 6 Optional 1A Drill 2” hole for Gangbox...
- Page 7 Optional 1B Install Gangbox...
- Page 8 Optional 1C Route USB-C cable and close lid...
- Page 9 Optional 2 Install wall anchor...
-
Page 10: Front Mount
Step 2 Disassemble Cam Wall Mount Front mount Back plate... - Page 11 STEP 3A Fasten the back plate to Gangbox...
- Page 12 STEP 3B Fasten the back plate to wall anchor...
- Page 13 STEP 4 Install front mount Using the assembly key to install the front mount.
- Page 14 STEP 5 Install the Jabra PanaCast...
- Page 15 STEP 6 Adjust and set camera mount length. Loosen the screw with the assembly key to adjust camera mount length, and then tighten it.
- Page 16 STEP 7 Adjust and set camera angle. Loosen the screw with the assembly key to adjust camera angle, and then tighten it.
- Page 17 STEP 7 Fasten cable tie and done.
