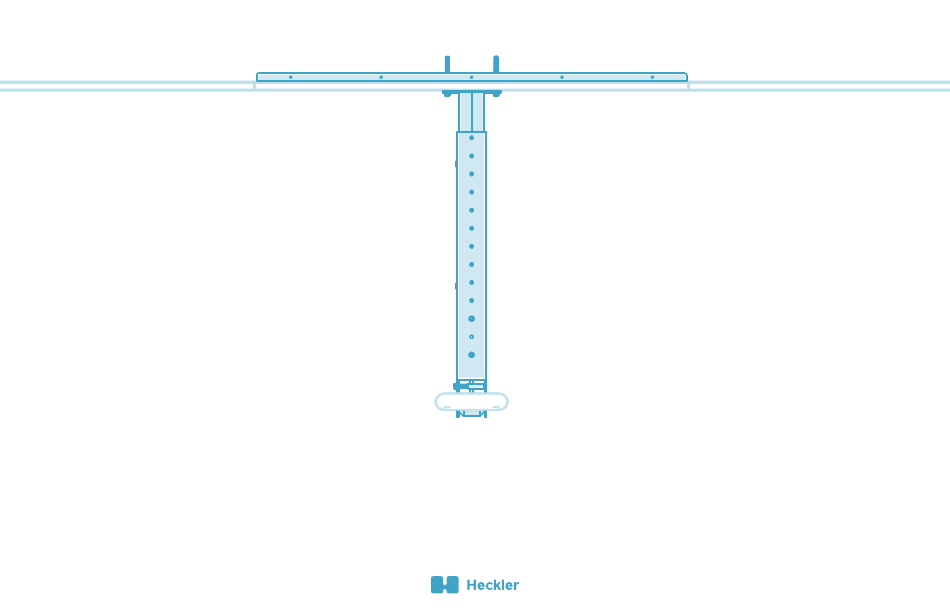

- Page 1 H573 - Ceiling Mount for Logitech BRIO...
- Page 2 To reduce the risk of severe injury or death to persons, review these installation safety steps before proceeding: This product hangs overhead in a commercial setting and is installed to directly to the structure of the room. Therefore, this product should be installed by a professional.
- Page 3 IN THE BOX Ceiling Mount Support Bracket Mounting Wingnut Self-Retaining Washer Mounting Screw Camera-Mounting Screw Hex Key, 9/64” Hex Key, 5/32”...
-
Page 4: Tools Needed
TOOLS NEEDED Ladder Tape Measure Power Drill 3/16” 1” Spade Drill Bit Drill Bit COMPONENTS NEEDED (Not Included) Logitech BRIO BRIO USB-C Cable Icron USB 2.0 Ranger 2311 If you have any questions, please contact service@hecklerdesign.com. - Page 5 STEP 1 Disassemble Ceiling Mount Use the 9/64” Hex Key to remove front screws. Use the 9/64” Hex Key to remove side screws.
- Page 6 STEP 2 Configure the USB ranger extender and cable Position the USB ranger Extender above the post Organize the cable to best fit inside the mount. Leave extra cable for future adjustment.
- Page 7 STEP 3 Fasten the cover Important: Please align the tab to guide screws into posts.
- Page 8 STEP 4 Determine the length of the Mount Ceiling Height 80” Important Notes: Based on the ADA rules, the camera should not be mounted lower than 80” from the ground. Please calculate the ideal Mount length based on your room. Ceiling Height - 80”...
- Page 9 STEP 5 Prepare the ceiling tile...
-
Page 10: Top View
STEP 6 Determine the mounting orientation of the support bracket to the ceiling tile Top view Wall White board 24”x 24” tile 24”x 24” tile 24”x 48” tile 48“x 24” tile... - Page 11 STEP 7 Measure and determine the length of the Mount 1” hole 3/16” hole Trace the slots of the support bracket to Use the mount to mark the mounting Find the center hole position and the top surface of the ceiling tile. hole position on the tile.
- Page 12 STEP 8 Install Logitech BRIO Loosen screw and remove the Plug in the USB-C cable to the camera mount. Logitech BRIO. Insert the BRIO and USB-C cable into Re-install camera mount and the camera mount, and mounting the tighten screw with 9/64” hex key. screw with 5/32”...
- Page 13 STEP 9 Re-assemble mount to the determined length Ceiling Mount Length...
- Page 14 STEP 10 Feed the four screws Fasten the Mount to ceiling tile through the pre-drilled holes. Fasten four wingnuts and self-retaining washers.
- Page 15 STEP 11 Install the ceiling tile and camera mount Loosen the screw to adjust the camera angle. Tip: Activate the camera to determine the best angle. Tighten the screw with the 9/64” hex key.
