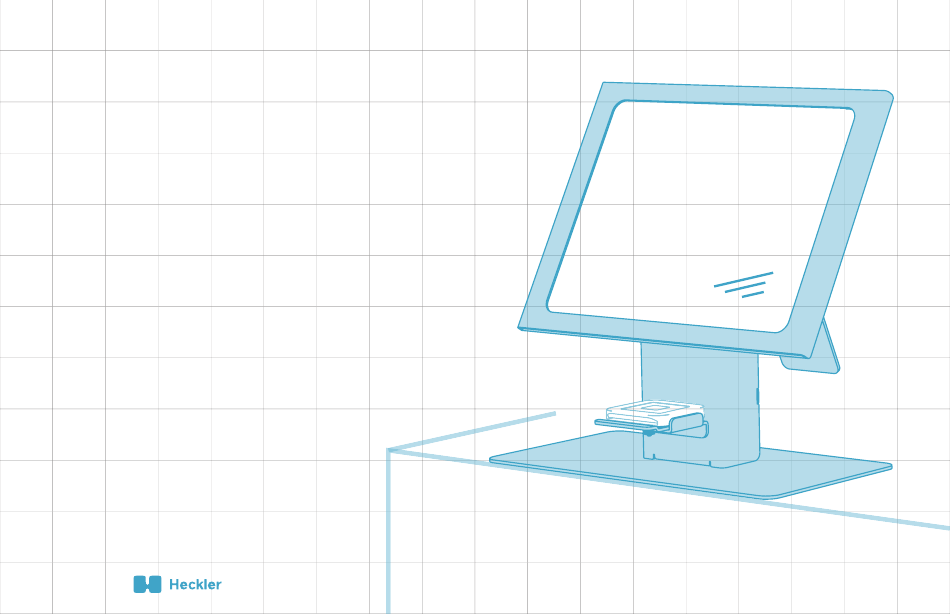

- Page 1 All manuals and user guides at all-guides.com H563 - Koala Kiosk Stand for iPad Pro 12.9-inch (3rd Gen) For support, please contact Heckler. service@hecklerdesign.com. 844-432-5930...
- Page 2 all-guides.com...
- Page 3 All manuals and user guides at all-guides.com IN THE BOX Koala Kiosk Stand USB-C hub with USB-C Charge Cable and Audio Cable Hex Assembly Key Torx Assembly Key Mounting Hardware Alcohol Pad CAT 6 Ethernet Cable...
-
Page 4: Components Needed
All manuals and user guides at all-guides.com COMPONENTS NEEDED (Not Included) Square Contactless MicroUSB Cable for Apple 18W USB-C Apple USB-C Charging Cable iPad Pro 12.9-inch (3rd Gen) Reader Square Contactless Reader Power Adapter Included with your iPad Included with your iPad Pro 12.9-inch (3rd Gen) Pro 12.9-inch (3rd Gen) OPTIONAL COMPONENTS... - Page 5 All manuals and user guides at all-guides.com STEP 1 Remove back hatch.
- Page 6 All manuals and user guides at all-guides.com STEP 2 Determine how to mount Kiosk Stand. Without Base plate With Base plate Skip ahead to step 6...
- Page 7 All manuals and user guides at all-guides.com STEP 3 Disassemble base plate. Use the Hex Assembly Key to remove two srews from base plate.
- Page 8 all-guides.com...
- Page 9 All manuals and user guides at all-guides.com STEP 4 Drill mounting holes in table top. Table front edge Table Top 4.45” 1” 2” Drill two 1/4" holes and one 3/4" center hole...
- Page 10 All manuals and user guides at all-guides.com STEP 5 Install mounting hardware.
- Page 11 All manuals and user guides at all-guides.com STEP 6 Remove front bezel.
- Page 12 All manuals and user guides at all-guides.com STEP 7 Install iPad Pro and connect USB-C cable. Make sure the iPad orientation is correct. The sleep/wake button should be positioned in the lower right corner. Route the USB-C cable as shown.
- Page 13 All manuals and user guides at all-guides.com STEP 8 Reinstall front bezel. The front bezel is asymmetric. Position the bezel as shown.
- Page 14 all-guides.com...
- Page 15 All manuals and user guides at all-guides.com STEP 9 Install Square Contactless Reader and route its Micro USB Cable. Route the Micro USB Cable Use Alcohol Pad to clean the bottom of Square Contactless Reader. Adhere Square Contactless Reader to bracket. Slide bracket in place, tighten thumb nut.
- Page 16 All manuals and user guides at all-guides.com STEP 10 Connect cables to USB-C hub USB-C Port USB Port Audio Port...
- Page 17 All manuals and user guides at all-guides.com STEP 11 Organize cables and USB-C Hub inside neck and reinstall back hatch.
- Page 18 All manuals and user guides at all-guides.com STEP 12 Select your data and power solution. Conventional AC Power PoE+ Networking and Networking Data Power WiFi Texas GAT-USBC - POE+ Splitter for USB Type C Conventional Network Switch Apple Power Adapter (USB-C) PoE+ Network Switch...
