Sadie Tallboy
Assembly Instructions
Thank you for your purchase. Please follow the instructions for correct assembly.
While we took great effort to ensure these assembly instructions were correct at
the time of printing, sometimes updates are required post production. For the
most up to date versions please refer to the product page on our website.
mocka.com.au/mocka.co.nz
B
C
A
screw
bolt
dowel
x36
x10
x67
CL
H
I
wedge
screw
slide
x8
x8
rail x5
WARNING:
Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety wall anchor
with all furniture sold and we recommend these are used to prevent your product tipping. The fixing device
provided should fit most wall types, but please note that different wall materials may require different fixing
devices from those supplied.
mocka.co.nz | mocka.com.au
D
E
locking
screw
screw
nut x67
x50
DL
CR
slide
slide
rail x5
rail x5

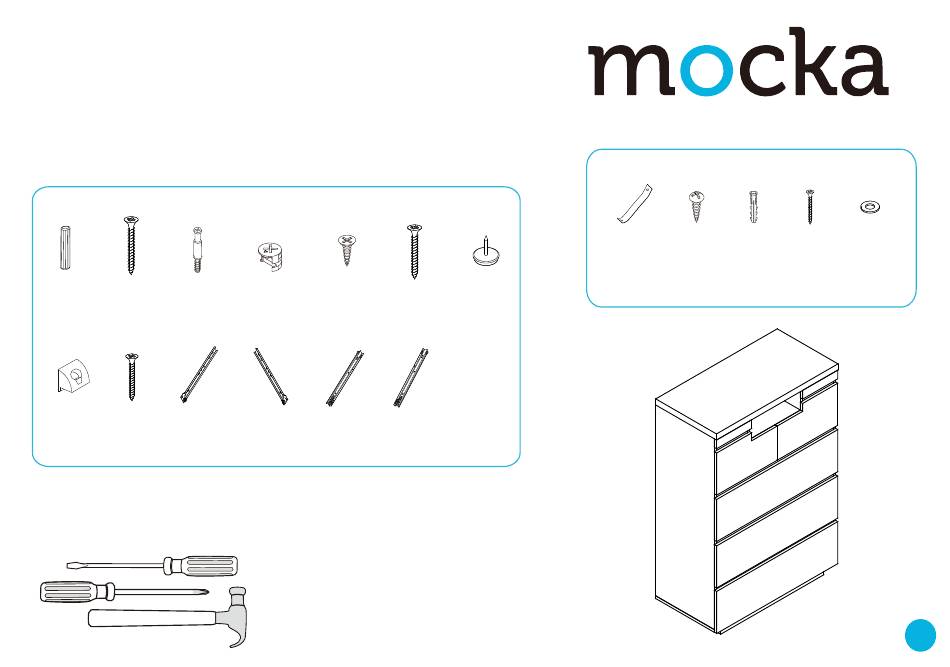

Hardware Supplied
Phillips & Flathead screwdrivers
and hammer required
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
F
G
plastic
x23
glide x4
DR
slide
rail x5
V
W
X
safety
screw
wall
x1
strap x1
anchor
x1
Wall Strap
Y
Z
wall
washer
screw
x2
x1
1
Advertisement
Related Manuals for Mocka Sadie Tallboy
Summary of Contents for Mocka Sadie Tallboy
- Page 1 Sadie Tallboy Assembly Instructions Thank you for your purchase. Please follow the instructions for correct assembly. While we took great effort to ensure these assembly instructions were correct at the time of printing, sometimes updates are required post production. For the most up to date versions please refer to the product page on our website.
-
Page 2: Panel Layout
Sadie Tallboy Assembly Instructions Panel layout 39 38 Insert 12x bolts (C) into panels [1]. Tighten with a screwdriver. mocka.co.nz | mocka.com.au... - Page 3 Sadie Tallboy Assembly Instructions Attach 4x slide rails (CL) and 4x slide rails (CR) to panels [3] and [4] Insert 14x bolts (C) into panels [3] and [4]. Tighten with a screwdriver. with 24x screws (E). Tighten with a screwdriver.
- Page 4 Sadie Tallboy Assembly Instructions Insert 4x bolts (C) into panels [7], [8] and [9]. Tighten with a Attach panel [9] to panels [7] and [8] with 4x dowels (A) and secure with screwdriver. 4x screws (B). Tighten with a screwdriver.
- Page 5 Sadie Tallboy Assembly Instructions FLIP Attach panels [14] to panels [7] and [8] with 2x dowels (A) and secure Attach 1x slide rail (CL) and 1x slide rail (CR) to panel [10] as shwon. secure with 2x locking nuts (D). Tighten with a screwdriver.
- Page 6 Sadie Tallboy Assembly Instructions Attach panel [10] to panel [9] with 2x dowels (A) and secure with 2x Attach panels [11] and [17] to panel [10] with 2x dowels (A) and secure locking nuts (D). Tighten with a screwdriver. with 2x screws (B). Tighten with a screwdriver.
- Page 7 Sadie Tallboy Assembly Instructions Attach panels [12] and [18] to panel [3] with 4x dowels (A) and secure Attach panels [11], [14] and [17] to panel [3] with 3x dowels (A) and secure with 4x locking nuts (D). Tighten with a screwdriver.
- Page 8 Sadie Tallboy Assembly Instructions Slide panel [5] down along the grooves between the panels [17] Insert 7x dowels (A) into panels [11], [12], [14], [17] and [18] . and [18] as shown. mocka.co.nz | mocka.com.au...
- Page 9 Sadie Tallboy Assembly Instructions Attach panel [4] to panels [11], [12], [14], [17] and [18] secure with 7x Slide panel [5] down along the grooves between the panels [3] locking nuts (D). Tighten with a screwdriver. and [4] as shown.
- Page 10 Sadie Tallboy Assembly Instructions Insert 10x bolts (C) into panel [2]. Tighten with a screwdriver. Attach panel [2] to panels [3] and [4] with 4x dowels (A) and secure with 4x screws (B). Tighten with a screwdriver. mocka.co.nz | mocka.com.au...
- Page 11 Sadie Tallboy Assembly Instructions Insert 4x bolts (C) into panels [16]. Attach panels [15] and [16] together Attach panels [15] and [16] to panel [2] secure with 10x locking nuts (D). with 4x locking nuts (D). Tighten with a screwdriver. Attach 4x plastic Tighten with a screwdriver.
- Page 12 Sadie Tallboy Assembly Instructions Attach panels [13] to panel [1] secure with 4x locking nuts (D). Tighten with Slide panel [6] down along the grooves between the panels [3] a screwdriver. and [4] as shown. mocka.co.nz | mocka.com.au...
- Page 13 Sadie Tallboy Assembly Instructions Drawers x5 Insert 23x bolts (C) into panels [34], [35] and [36]. Tighten with a screwdriver. Attach panels [1] and [13] to panels [3]，[4]，[7] and [8] with 8x dowels (A) and secure with 8x locking nuts (D). Tighten with a screwdriver.
- Page 14 Sadie Tallboy Assembly Instructions Drawers x5 Drawers x5 Attach panels [30] and [31] to panels [34], [35] and [36], secure with 20x Slide panels [33] and [38] down along the grooves between the panels locking nuts (D) as shown. Tighten with a screwdriver. Attach panels [39] [30] and [31].
- Page 15 Sadie Tallboy Assembly Instructions Drawers x5 Drawers x5 Attach panels [30], [31], [32] and [37] as shown using 23x screws (F). Attach slide rails (DL) and slide rails (DR) to the underside of the side panels Tighten with a screwdriver.
- Page 16 Sadie Tallboy Assembly Instructions Attach 8x wedges (H) to the back of the unit as shown, and secure Insert the assembled drawers into the corresponding compartments with 8x screws (I). Now attach 1x safety strap (V) to the back edge as shown.
- Page 17 Sadie Tallboy Assembly Instructions strap wall anchor screw Once assembled lift furniture into place, do not drag. Attach the other You’re done, enjoy! end of the safety straps (V). Fasten to the wall using 1x washer (Z), 1x wall anchor (X) and 1x screw (Y). Ensure unit is balanced and steady before use.
