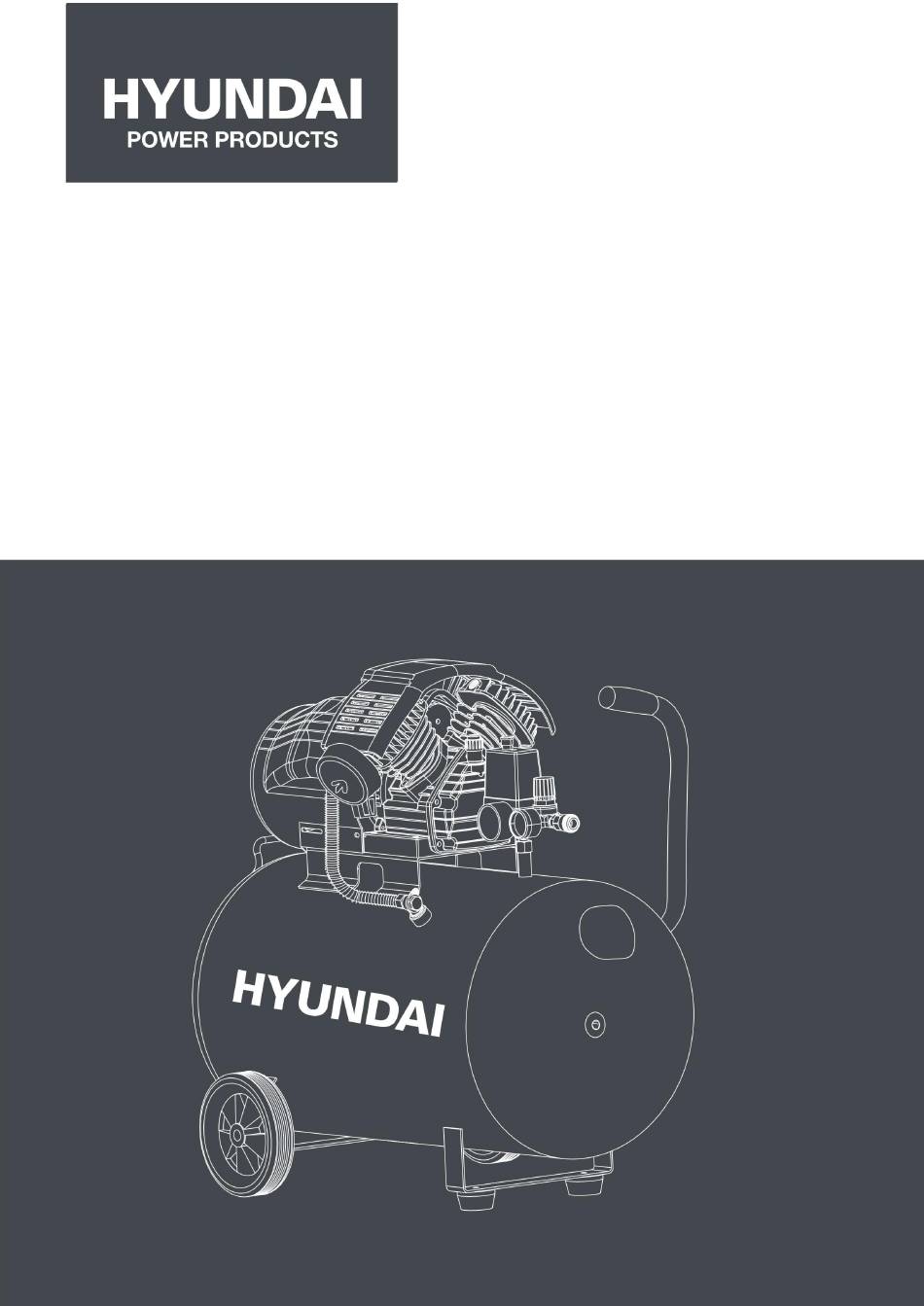

- Page 1 AIR COMPRESSOR HC100L-A ORIGINAL INSTRUCTIONS...
-
Page 2: Table Of Contents
Caution! The user should carefully read all the instructions before operating this machine and keep this manual for future reference. Table of Contents Product presentation.................1 II. Components name................1 III. Technical features................1 IV. Checks on receipt................2. V. Safety Instructions................2 VI. Preparation before use..............7 VII. -
Page 3: Product Presentation
Product presentation This air compressor features a new design and excellent quality. Having the advantage of being compact, with beautiful design layout, lightweight, easy to handle, highly reliable and quiet, it is suitable for many applications in the mechanical and chemical industries, for spraying and decoration, automatic control systems, as well as in any other field requiring compressed air. -
Page 4: Checks On Receipt
Sound pressure level 75,2dB(A)， K=1,96dB(A) Guaranteed sound power level 97dB(A) Input temperature: 10℃ -40℃, intermediate temperature: 170-200℃, Discharge Temperature: 10℃ -40℃. Input pressure: 0 Bar Intermediate and discharge pressure: 0~8Bar. Lubrication system pressures and temperature limits: 8Bar, 200℃ Note: the noise emission has been measured according to the conditions provided for in the standards EN1012 and EN ISO 2158. - Page 5 Read the operating instructions. Wear ear protection. Do not open the valve before connecting the air hose. The device can be switched on automatically. Risk of high temperature. Risk of electric shock. Do not use the portable compressor with the door or fence open. B.
- Page 6 could get tangled in the moving parts. Rubber gloves and non-slip shoes are recommended for outdoor work. Wear a protective helmet if you have long hair. 8. Wear eye protection. Also wear a dustproof mask Do not damage the power cable. Never carry the compressor by its cable or pull on it to disconnect it from the power socket.
- Page 7 parts. If this condition is not met, the user could be exposed to considerable danger. Connect a dust extraction device. If the compressor features a housing to connect a dust collection or extraction device, make sure that it is properly connected and used.
- Page 8 The lubrication oil should be clean, the oil level should be kept at the recommended level on the scale. High oil viscosity during cold start, clogging of the oil filters or causing a malfunction of the valve can lead to a lack of oil. Disconnect the plug to turn off the power and open the output valve.
-
Page 9: Preparation Before Use
recommended oil: SAE30 or L-DAB100 compressor oil recommended For the air filter: The air filter should be cleaned at least once a month. The air compressor should be kept away from any flammable materials. The compressor should not be used in such applications unless appropriate additional precautions are taken;... - Page 10 Pressure switch Control valve 2 Discharge valve 1 Safety valve (Fig.3) 7. the compressor is controlled by a pressure switch during normal operation. It stops automatically when the pressure reaches its maximum level or restarts automatically when the pressure drops to its minimum level. The maximum and minimum pressure levels have been preset at the factory.
-
Page 11: Maintenance
VIII. Maintenance Clean the crankcase and change the oil after the first 10 hours of operation. Check the oil level every 20 hours, refill if needed (Fig. 5). Open the drain valve under the tank to clear condensation every 60 hours of operation. -
Page 12: Troubleshooting
X. Troubleshooting Problem Possible causes Solutions The engine is (1) Fuse blown, or circuit breaker (1) Check, change the fuse, switch not running tripped on the circuit breaker. (2) Faulty electrical connection (2) Check and repair wires (3) Overheated engine (3) Press the reset button or wait for an automatic restart Repair or replace... -
Page 13: Parts List
XI. Parts list N° Name N° Name Crankcase Crankshaft Cover Joint Washer Crankcase cover Bearing Bolt Bolt Oil plug gasket Spring... - Page 14 Oil filler cap Base Bolt Stator Air venting Rotor Connecting rod Bearing Circlip Sealing gasket Piston pin Air valve Piston Pressure monometer Piston ring Regulator Joint Connector Bolt Pressure switch Spring Pressure monometer Cylinder Connector Bolt Safety valve Valve gasket Discharge pipe Valve Check valve...
-
Page 15: Ec Declaration Of Conformity
Declaration of Conformity BUILDER SAS ZI, 32 rue aristide Bergès – 31270 Cugnaux - France Declares that the machinery designated below: COMPRESSOR HC100L-A S/N : 20201225576-20201225785 Complies with the provisions of the Directive "machinery" 2006/42/EC and regulations National transposing it;... -
Page 16: Warranty
XIII. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 17: Product Failure
XIV. P R O D U C T FA I L U R E WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 18: Warranty Exclusions
XV. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
