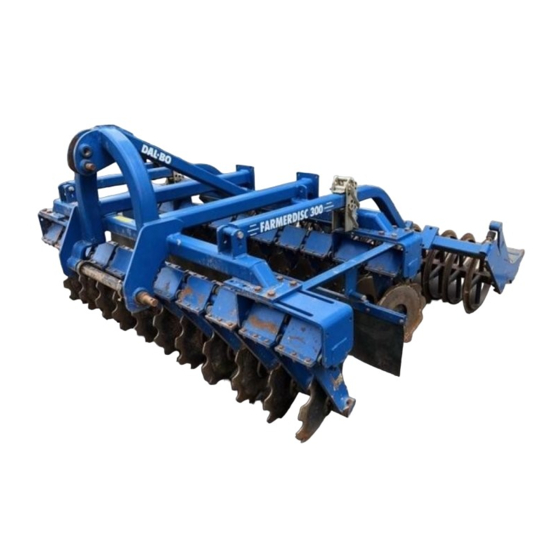

  • Page 1 FARMERDISC 300, 350, 400 cm...

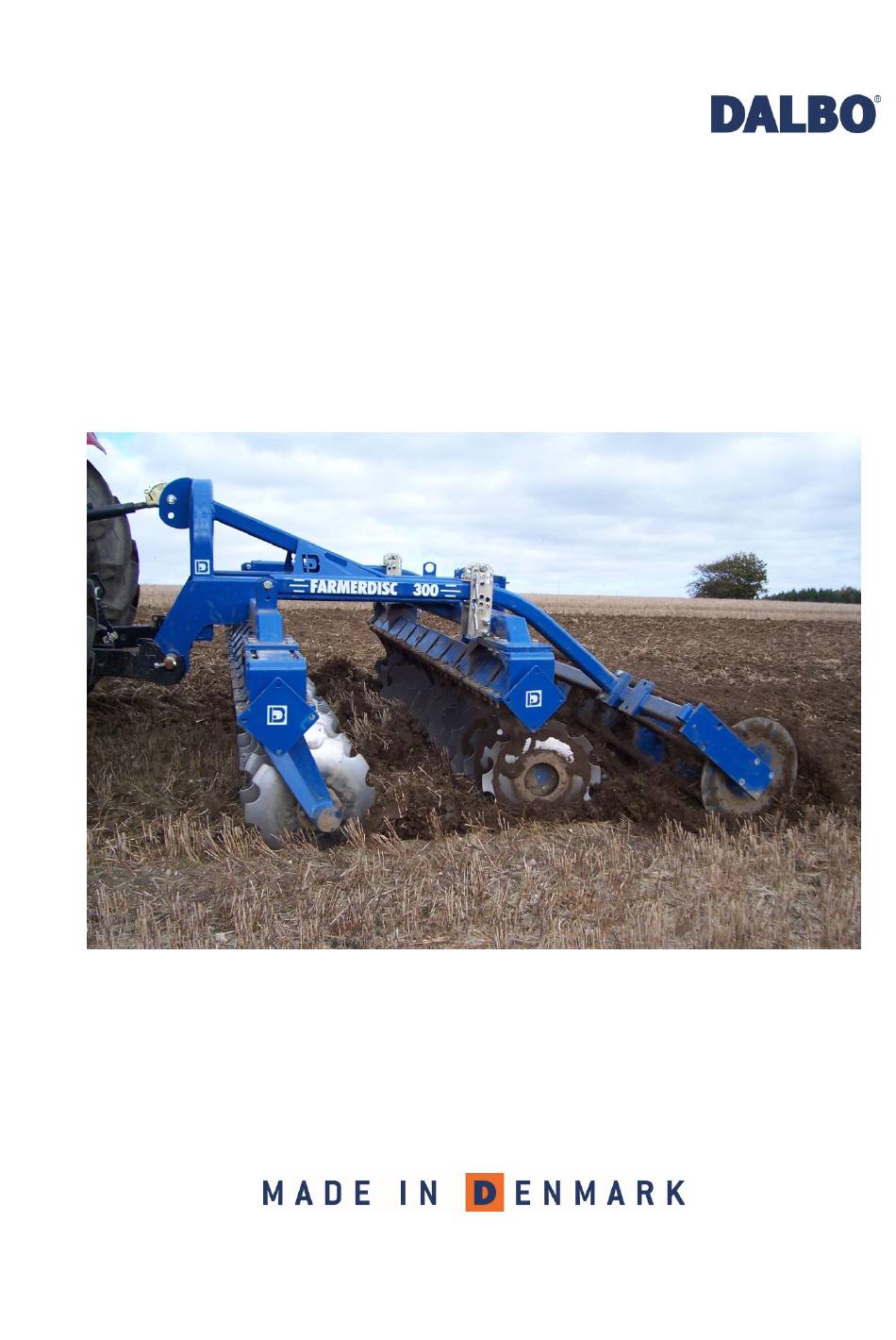

  • Page 3 Congratulations on the purchase of your new FARMERDISC. To ensure safe operation and to obtain optimal use of the machine, read the rules and instructions of the following operator`s manual carefully before operating the machine. © Copyright 2002. All rights reserved, DALBO A/S. Your FARMERDISC: Type no.: Serial no.:...

  • Page 4: Table Of Contents

    Table og Contents SAFETY ..........................5 ENERAL .......................... 5 YDRAULIC YSTEM ......................5 .......................... 6 ITCHING AINTENANCE AND EPAIRS ....................6 RANSPORT ........................6 ORRECT ........................7 TECHNICAL DATA ......................... 8 HOW TO USE THIS MANUAL ....................9 ELIVERY .......................... 9 APPLICATION ........................

  • Page 5: Safety

    FARMERDISC Safety The safety alert symbol is used throughout this manual to identify important safety warning messages concerning your safety, the safety of other users or the func- tional safety of the implement. Observe all safety instructions and make them readily accessible to all users of the equipment.

  • Page 6: Hitching

    FARMERDISC • Clean the hydraulic fittings thoroughly before connection. Ensure that the pres- sure is relieved in the hydraulic system before connecting the hydraulic hoses to the hydraulic services of the tractor • After making repairs to the hydraulic system, thoroughly bleed air out of the system.

  • Page 7: Correct Use

    FARMERDISC • It is the reponsibility of the driver to consult with local traffic authorities in order to ensure that the size, weight and load of the machinery may be transported on public roads. • When towing the implement, the total weight of the tractor and the maximum al- lowed axle load must not be exceeded.

  • Page 8: Technical Data

    FARMERDISC Technical Data FARMERDISC Working-width (cm) Transport-width (cm) HP (recommended) Gross weight kg: with Tube-packer 1750 1800 1850 Gross weight kg: with T-rings 1900 1975 2050 Side 8...

  • Page 9: How To Use This Manual

    FARMERDISC How To Use This Manual If the order of points described under the main subject areas of the manual seems confusing or illogical, refer to the Table of Contents where all subject headings can be found. The main points of the operator´s manual are placed into five main categories: •...

  • Page 10: Application

    FARMERDISC Application The FARMERDISC is an entirely new generation of very compact and simple mounted disc harrows. The FARMERDISC is particularly suitable for working in the topsoil where the majori- ty of plant transformation takes place. With only one drive the FARMERDISC is able to provide a complete cutting of the field and a homogeneous mixing of crop resi- dues and micro-organisms in the soil.

  • Page 11: Hitching And Unhitching

    FARMERDISC Hitching and Unhitching Hitching Fig. 2 Attach the lift arms first and then the top link. Adjust the top link so that the frame is horizontal.  • Remember to secure with lynch pins Hydraulic System FARMERDISC requires 1 double acting hydraulic output. (only applies when transport chassis is mounted (extra equipment)) Table 1.

  • Page 12: Adjustments And Settings

    FARMERDISC Adjustments and Settings The FARMERDISC is preset in the factory, but it will always be necessary to make some fine adjustments before use. Numerous adjustment possibilities make your FARMERDISC more versatile and allow you to obtain optimum performance from the implement. Depth The operating depth is controlled by the rear T-ring roller or the Tube-packer.

  • Page 13: Disc Setting

    (B). Always make the measurement on the left side of the machine. (when standing behind the machine and looking ahead in the direction of travel.) Basic settings of discs Type Front (mm) Rear (mm) FARMERDISC 300, 350, 400cm Side 13...

  • Page 14: Side Reducer

    FARMERDISC Side Reducer Fig. 5 On the right side of the FARMERDISC an arm is mounted to reduce soil drop- pings from the front disc. Adjust the arm vertically with the pin (A) accord- ing to the working depth of the FARMERDISC.

  • Page 15: Operating And Driving Instructions

    FARMERDISC Operating and Driving Instructions Proper operation is essential for optimum performance of your FARMERDISC. Proper operation concerns both the carrying out of tillage operations in the field, as well, as the following of safety precautions. Make sure that you have a thorough under- standing of all safety precautions.

  • Page 16: Fault Detection

    FARMERDISC Fault Detection Fault Cause Repair The soil is thrown • The side reducer is not • Adjust the side reducer. too far to the side operating correctly. causing an earth • FARMERDISC is not • Adjust the toplink causing the bank.

  • Page 17: Maintenance

    FARMERDISC Maintenance Proper maintenance ensures a long life for the FARMERDISC, and optimum perfor- mance from the implement. To facilitate maintenance, grease fittings have been mounted on those locations, where wear on the equipment is the greatest.  Tighten all nuts, bolts, hydraulic fittings or any other fastened as- semblies after the first workday.

  • Page 18: Hydraulic System

    FARMERDISC Hydraulic System Inspect all hydraulic hoses for chafing or leaks. Check hoses for pinching.  To avoid rust, any projecting piston rods should be coated with oil or grease, if the FARMERDISC is to be parked for a long period of time. Remember to remove the oil or grease prior to operation.

  • Page 19: Replacements And Repairs

    FARMERDISC Replacements and Repairs  Safety is important in connection with all repair work on the FARMERDISC. The following safety precautions and the precautions listed in the beginning of this manual must be observed. Before performing any adjustments, maintenance or repairs on the machinery, always unfold the FARMERDISC, and lower the imple- ment to the ground or secure in transport position, engage the trac- tor brakes, turn off the engine and remove the ignition key, to avoid...

  • Page 20: Replacing Seals For Wheel Chassis

    FARMERDISC Replacing seals for wheel chassis Fig. 9 Cylinder 80/40-350 1 Empty the cylinder of oil by moving the piston gently back and forth. 2 Move the piston to the middle position, unscrew the end cap (pos. 3) of the cyl- inder tube (pos.

  • Page 21: Replacing Shaft, Bearings And T-Rings

    FARMERDISC Replacing shaft, bearings and T-rings Lower the FARMERDISC to the ground. Securely support and block the roller if neces- sary. Watch out for unintentional rolling movement, when bolts in the bearings have been removed. Fig. 10 1 Remove bolts in the bearings. 2 Roll the shaft with the T-rings away from the frame.
  • Page 22 FARMERDISC Fig. 11 1 Remove the disc. 2 Unscrew the nub cap. 3 Remove the nut. 4 Unfold the shaft. 5 Remove the outermost bear- ing. 6 Remove the innermost bearing. 7 Remove the bearings on the shaft. 8 Remove the seal. Clean the shaft and nub housing.

  • Page 23: Scrapping

    FARMERDISC Scrapping Relieve the pressure in the hydraulic system. When dismounting/mounting components, always pay attention to the weight of the part, that you are about to handle. It is important to support or secure the part, so that it cannot fall. Dismount all hydraulic hoses and cylinders and empty the oil.

  • Page 24: Spare Parts

    FARMERDISC Spare Parts Side 24...
