53-1003990-22 Installation Guide
Power Supply and Fan Assemblies
The power supply and fan assembly units can be removed and replaced without special tools. The units are identical and
fit into either slot.
NOTE
The power supply and fan assembly units are hot-swappable if they are replaced one at a time.

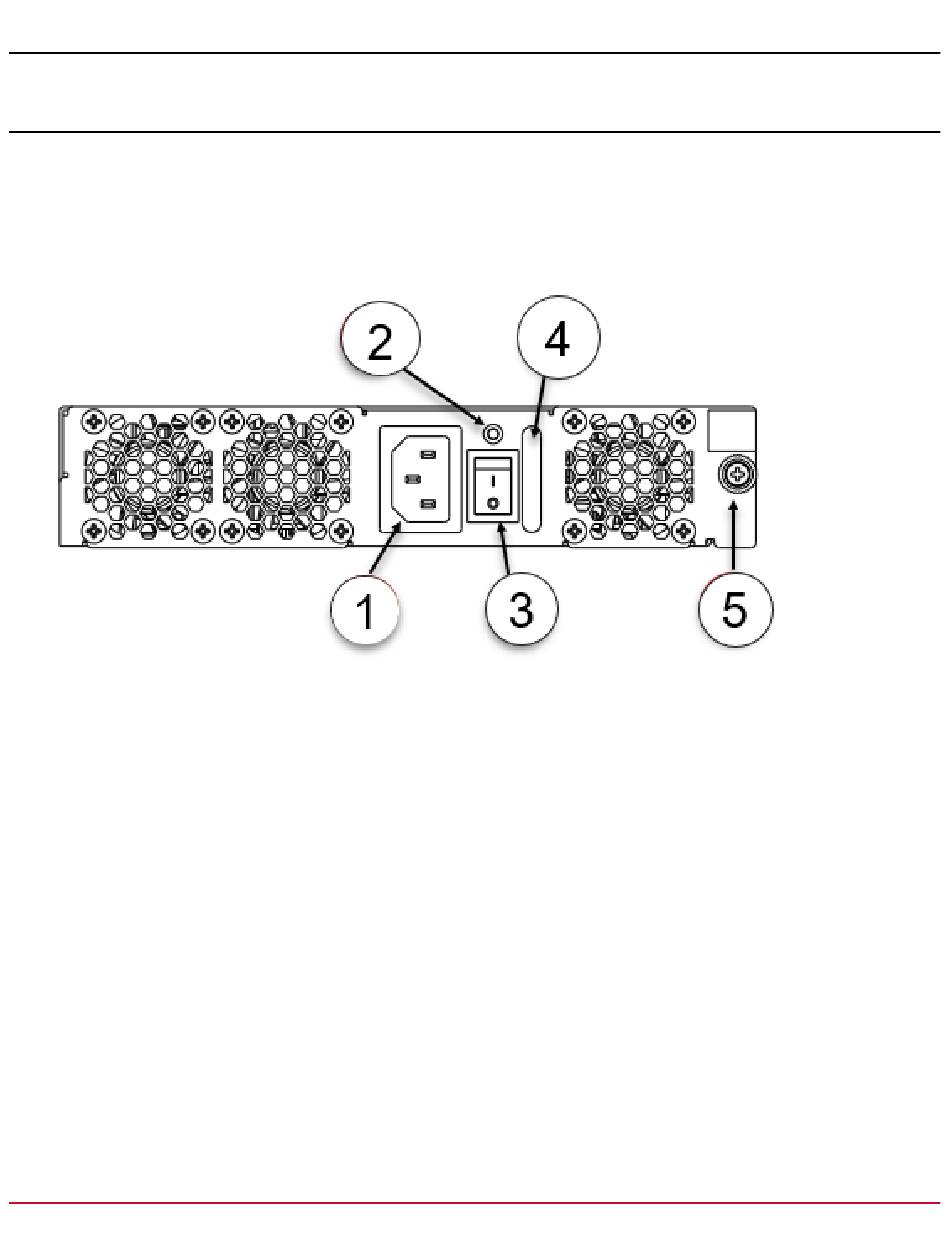

Figure 36: AC Power Supply and Fan Assembly
1. AC Power Cable Receptacle
2. Power Supply and Fan Assembly Status LED
3. Power-On/Off Switch
4. Power Supply and Fan Assembly Handle
5. Captive Screw
®
Brocade
G620 Switch Hardware Installation Guide
53-1003990-22
66
