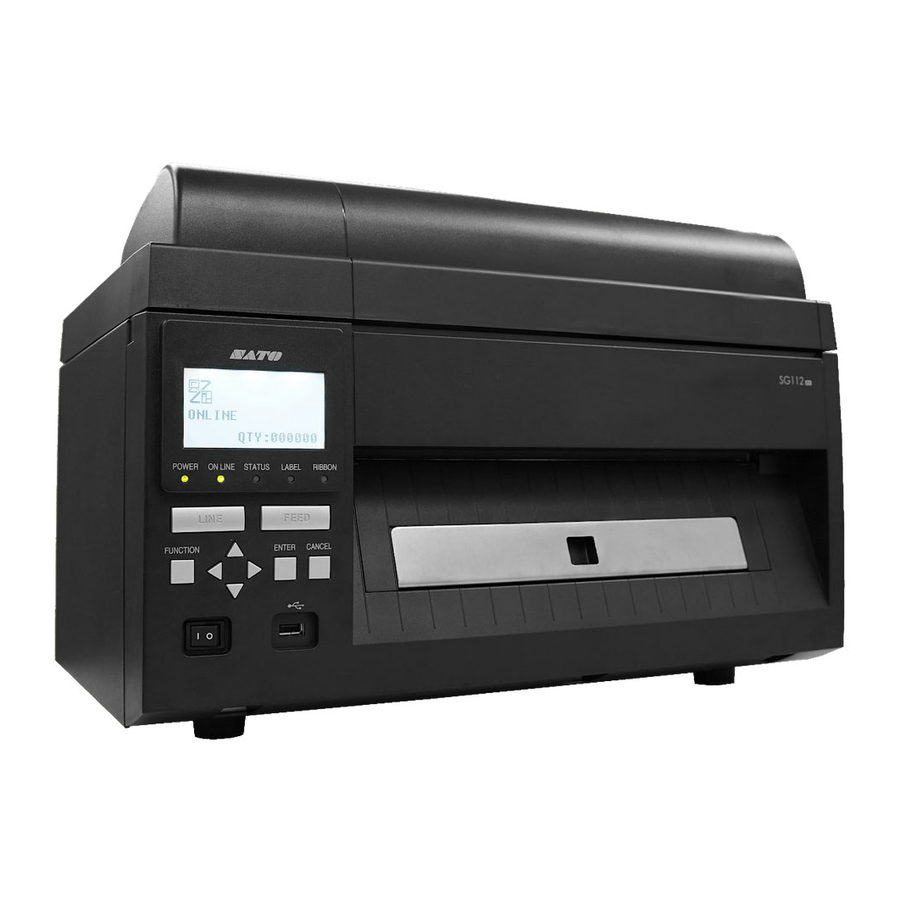

SATO SG112 - Barcode Printer Quick Guide

Accessories

1. Power cord*
2. Ribbon core
3. Quick guide
4. Safety instructions
5. Global Warranty Program leaflet
   * The power cord is not supplied depending on the region
   The shape of power plug varies depending on the region.

Parts Identification

1. Top cover
2. Operator panel
3. Power switch
4. USB connector (Type A)
5. Ribbon rewind holder
6. Print head
7. Ribbon supply holder
8. Media discharge outlet
9. Head release lever
10. Media inlet
11. Media guide
12. SD card slot
13. USB connector (Type B)
14. LAN connector
15. IEEE1284 connector
16. RS-232C connector
17. EXT connector
18. AC input terminal

Options

19. Stacker
20. Unwinder

• Real-time clock kit

Turning on the Power

Turning off the Power

• Make sure that the printer is in offline mode before pressing the power switch


Loading the Carbon Ribbon

• Set the carbon ribbon (A) and the ribbon core respectively.
• Attach the carbon ribbon to the ribbon core with adhesive tape (B) or the like.
• Wind the carbon ribbon in the direction of the arrow a few rounds (C).


Loading Media

• Adjust the media guide to the media size and then tighten the thumb screws (D) to fix the media guide position.
• After turning on the power, the printer will automatically load the media when you insert the media into the media inlet.
• Use only the supply products specified by SATO.


Basic Specifications

Print method: Direct thermal and Thermal transfer
Head density (Resolution): 305 dpi
Model name: SG112-ex
Dimensions: 475 (W) x 314 (D) x 320 (H) mm (18.7" x 12.3" x 12.6") (not including protruding parts)
Weight: Approx. 23 kg (50.7 lbs) (not including media and options)
Power consumption:
Input power voltage condition: AC 100 V, 50 Hz
At peak: 413 VA/404 W (at 30% printing ratio, darkness: 10, speed: 6 inch/sec)
Standby: 28 VA/24 W
Power requirements:
Input voltage: AC 100 - 240 V, ±10%, 50 - 60 Hz
Environmental conditions (Temperature/Humidity):
Operating: 5 - 40 ºC (41 - 104 ºF), 30 - 80% RH (non-condensing)
Storage: −5 - 60 ºC (23 - 140 ºF), 30 - 90% RH (non-condensing)
