User's Manual
PV3
BARCODE PRINTER
Rev. 1.00
V10 CONSUMIBLES S.L.
Calle Llanos de Jerez 18 Nave 9 Coslada https://v10consumibles.com Tel: 910 269 309

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PV3 and is the answer not in the manual?

Questions and answers

Related Manuals for SATO PV3

Summary of Contents for SATO PV3

  • Page 1 User’s Manual BARCODE PRINTER Rev. 1.00 V10 CONSUMIBLES S.L. Calle Llanos de Jerez 18 Nave 9 Coslada https://v10consumibles.com Tel: 910 269 309...

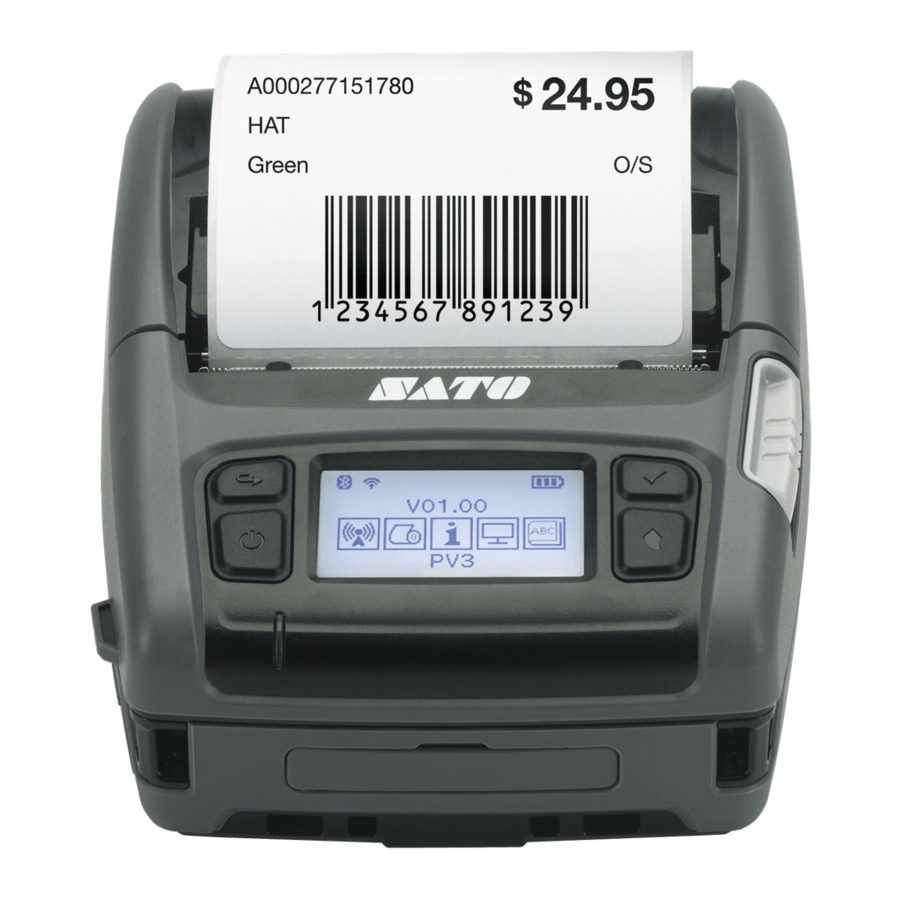

  • Page 2 Introduction The PV3 is a 3-inch thermal barcode printer which simultaneously connects with Bluetooth and Wireless LAN. I deal for smart mobility labelling due to its compact, lightweight design with an easy-to-open peeler and LCD. ※ The main features of the printer are as follows 1.
  • Page 3 Safety Information Warnings must be heeded carefully in order to prevent serious Warning physical harm. Cautions must be heeded in order to prevent minor injuries, Caution equipment damage, or data loss. Symbol Information DC (Direct current) Warning, Caution Ethernet V10 CONSUMIBLES S.L. Calle Llanos de Jerez 18 Nave 9 Coslada https://v10consumibles.com Tel: 910 269 309...

  • Page 4: Table Of Contents

    Table of Contents 1. Content Confirmation ......................10 2. Product Part Names ......................10 3. Installation & Usage ......................12 3-1 Battery Installation ......................12 3-2 Battery Charging ......................12 3-2-1 Using AC/DC Adaptor ..................12 3-2-2 Using 1CH Battery Charger (Optional) ..............13 3-2-3 Using 4CH Battery Charger (Optional) ..............
  • Page 5 In this chapter, the basic concept of SLCS and some information necessary for the programmer to use SLCS will be explained. Please read this part before starting programming for efficient and easy use of SATO BARCODE PRINTERS. 6. Paper Specification This manual contains paper specifications needed to use barcode printer V10 CONSUMIBLES S.L.
  • Page 6 Safety Precautions In using the present appliance, please keep the following safety regulations in order to prevent any hazard or material damage. WARNING Violating following instructions can cause serious injury or death. Do not plug several products into one multi-outlet. You must use only the supplied adaptor.
  • Page 7 CAUTION Violating following instructions can cause slight wound or damage the appliance. If you observe a strange smoke, odor or noise from Keep the desiccant out of children’s reach. the printer, unplug it before taking following • If not, they may eat it. measures.
  • Page 8 Battery Safety Warning Please be sure to read this guide prior to use. Warning 1. If the battery is not charged after the charging time, stop charging and contact the seller. 2. Store and use the battery where it will not come into contact with liquid (water, salt water, etc.).
  • Page 9 12. Do not disassemble or modify the battery. The battery contains safety and protection devices to prevent danger. It may reduce battery performance and life due to damage, or there may be a risk of overheating, rupturing or igniting. 13. If any leakage of the battery comes into contact with the eyes or skin, immediately rinse with clean water such as tap water and consult a doctor immediately.

  • Page 10: Content Confirmation

    1. Content Confirmation The following items should all be contained in the printer package. Contact the dealer from which the purchase was made if any item is damaged and/or missing. ※ Basic items Battery Pack Belt Strap Download Guide Installation Guide Paper Disks (for 12mm inner diameter)

  • Page 11: Product Part Names

    2. Product Part Names • Front Paper Cover Peeler Menu Move Button Power Button Charge Indication LED Cover Open Button Shoulder Strap Ring Menu Select Button Outer Terminal Cover Paper Feed Button • Rear Hole for mounting belt strap Battery Interface Cap Cable Connection Power Connection...

  • Page 12: Installation & Usage

    3. Installation & Usage 3-1 Battery Installation 1) Insert the battery in the bottom of the printer, and ensure that you align the battery hook properly. 2) Push the battery into the slot until you hear it snap in place. NOTE Since the battery is partially changed at the time of purchase, charge the battery prior to product...

  • Page 13: Using 1Ch Battery Charger (Optional)

    SATO when using a single battery charger. SATO is not legally liable for any such damages. Caution - You must use the battery charger provided by SATO to use the singles battery charger. (AC/DC adaptor is not available) V10 CONSUMIBLES S.L.

  • Page 14: Using 4Ch Battery Charger (Optional)

    3-2-3 Using 4CH Battery Charger (Optional) 3-2-3-1 Connecting the cables 1) Connect the power cord to the Adaptor, and Connect the Adaptor to the power connector of the quad battery charger. 2) Plug the power cord into a power Outlet. Input power is 100 ~ 240VAC, 50/60Hz, 1.0A.
  • Page 15 3-2-3-2 Charging Battery 1) Insert the battery into the 4CH Battery Charger as shown in the figure on the left. 2) Gently slide the battery until it reaches the bottom of the charger. 3) Charging starts as soon as the battery is completely inserted.

  • Page 16: Paper Installation

    3-3 Paper Installation 1) Press the Open button to open the paper cover. 2) Insert the paper as shown. (Remove the empty core.) 3) Align the paper as shown. 4) Pull out the paper as shown and close the paper cover. V10 CONSUMIBLES S.L.
  • Page 17 NOTE The specification of the paper inner diameter of the standard paper disks are 19 mm. If you are using paper with a smaller inner diameter, remove the paper disks as shown below and replace it with the supplied 12 mm paper disks.

  • Page 18: Using Peeler

    3-4 Using Peeler 1) Insert the paper after open the peeler as shown. 2) Pull out the paper after close the peeler as shown. V10 CONSUMIBLES S.L. Calle Llanos de Jerez 18 Nave 9 Coslada https://v10consumibles.com Tel: 910 269 309...

  • Page 19: Using Belt Strap

    3-5 Using Belt Strap 1) Insert the belt strap screw into the belt strap hole. Belt Strap 2) Use a coin to tighten the belt strap screw Coin as shown in the image. 3) Unfasten the belt strap Velcro. Belt 4) Slide the belt strap over a belt.

  • Page 20: Using Fan Fold Paper

    3-7 Using Fan Fold Paper 1) After keeping the paper guide wide as shown in the figure, hold the paper guide by lifting left guide holder as shown in the figure. 2) Separate the fan fold cover by pushing as shown in the figure.

  • Page 21: Using 3Inch Paper

    3-8 Using 3inch Paper After keeping the paper guide wide as shown in the figure, hold the paper guide by lifting right guide holder as shown in the figure. NOTE Use only when you are using 3 inch (80mm) paper. V10 CONSUMIBLES S.L.

  • Page 22: Using Control Panel

    3-9 Using Control Panel • Power Button This button is used to turn the printer on, off, to move to main menu or to operate the action. 1) When the printer is off, press this button for approximately 2 seconds to turn on the power. 2) When the printer is on, press this button for approximately 2 seconds to turn off the power.

  • Page 23: Recommended Papers

    3-10 Recommended Papers • Receipt paper - TF50KS-E (Paper Thickness: 65μm): Nippon Paper Industries Co., Ltd. - PD 150R (Paper Thickness: 75μm): New Oji Paper Mfg. Co., Ltd. - PD 160R (Paper Thickness: 75μm): New Oji Paper Mfg. Co., Ltd. - P350 (Paper Thickness: 62μm): Kansaki Specialty Paper, Inc.

  • Page 24: Self-Test

    4) After the wireless interface information is printed, the self-test is automatically terminated. • Self-Test Sample SATO PV3 CONFIGURATION FIRMWARE VERSION : V01.00 STD 010118 EMULATION : SLCS & BPL-Z & BPL-C PRINT DARKNESS...
  • Page 25 (Bluetooth) (Wireless LAN) RF INTERFACE STATUS (BT) RF INTERFACE STATUS (Wireless LAN) BLUETOOTH F/W VER : 2.0.4 Wireless LAN F/W VER : 02.02(4002) MAC ADDRESS MAC ADDRESS FRIENDLY NAME : SPP-L3000 SYSTEM NAME : SPP-L3000 MODE : CLASSIC NETWORK MODE : SOFT AP AUTH &...

  • Page 26: Lcd Menu

    5. LCD Menu You can check printer status and setting information through LCD. • Top icon Icon Description Bluetooth is enabled but not connected to the host device. Bluetooth is enabled and connected to the host device. Display signal strength of Wireless LAN. Can not searching the registered AP Password incorrect Receiving data, printing or paper feed...
  • Page 27 • Main menu icon Icon Description Check / set the status of the wireless interface 1) Bluetooth - Check Bluetooth Device name - SSP (Secure Simple Pairing) / PIN code mode setting - Check MAC address - BLE / Classic mode setting - Bluetooth On / Off setting 2) Wireless LAN - Check SSID setting and encryption...

  • Page 28: Peripherals Connection

    6. Peripherals Connection This product can communicate with other devices via Bluetooth, Wireless LAN communication and cable. 6-1 Bluetooth, Wireless LAN Connection 1) The printer can be connected to devices equipped with Bluetooth communication capacity (PDAs, PCs, etc.). 2) Use the Bluetooth connection function supported by the device to connect to the printer.

  • Page 29: Printer Cleaning

    7. Printer Cleaning If the interior of the printer is dusty, print quality can decline. In such a case, follow the instructions below to clean the printer. Sensor (B) Print head (A) 1) Open the paper cover and remove the paper, if present. 2) Clean the print head (A) using the cloth or cotton swab soaked in alcohol for medical.

  • Page 30: Appendix

    8. Appendix 8-1 Specifications Item Description Printing Method Thermal printing Print Speed Up to 5 ips Resolution 203 dpi 10 SLCS Resident Bitmap Fonts One SLCS Resident Scalable Font 16 BPL-Z™ Resident Bitmap Fonts Font One BPL-Z™ Resident Scalable Font 7 BPL-C™...

  • Page 31: Label Types

    AC/DC Adaptor, 1CH Battery Charger, 4CH Battery Charger, 8-2 Label Types • The labels used on this product are composed of the following materials; • SATO logo label: PC • Rating Label: PET • Other labels: PET V10 CONSUMIBLES S.L.
  • Page 32 SATO CORPORATION. The information contained herein is designed only for use with this SATO product. SATO is not responsible for any direct or indirect damages, arising from or related to use of this information.
  • Page 33 Caution Some semiconductor devices are easily damaged by static electricity. You should turn the printer “OFF”, before you connect or remove the cables on the rear side, in order to guard the printer against the static electricity. If the printer is damaged by the static electricity, you should turn the printer “OFF”.
  • Page 34 Revision History Rev. Date Page Description 1.00 ??.08.19 V10 CONSUMIBLES S.L. Calle Llanos de Jerez 18 Nave 9 Coslada https://v10consumibles.com Tel: 910 269 309...
