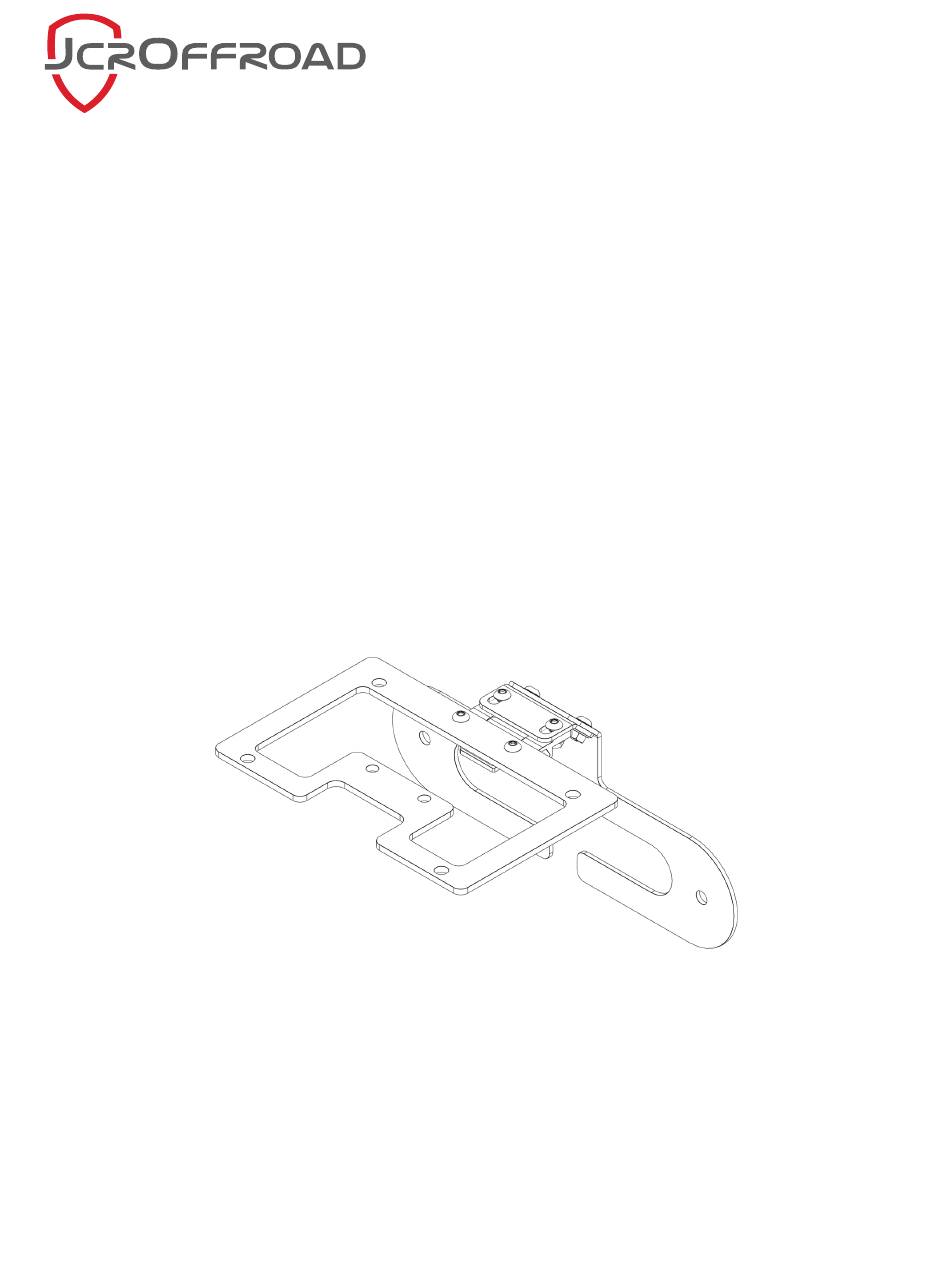

FAI R L E A D LI CEN SE
PL AT E F LI P
IN S TAL L I NSTRU C TIO NS
Please read the mounting instructions below carefully before attempting to install.
Thank you for purchasing from JcrOffroad! Checkout our website, www.jcroffroad.com for other great off-road
products. Be sure to rate and review our product online. If you have any questions or are missing parts, please
don't hesitate to call us at 269-353-1184!
Advertisement
Related Manuals for JCROffroad UNI-FPF-PC
Summary of Contents for JCROffroad UNI-FPF-PC
- Page 1 Please read the mounting instructions below carefully before attempting to install. Thank you for purchasing from JcrOffroad! Checkout our website, www.jcroffroad.com for other great off-road products. Be sure to rate and review our product online. If you have any questions or are missing parts, please...
- Page 2 I NCLU D E D HARDWARE 5/16"-18 x 3/4" 1/4"-20 x 3/4" Button Head Button Head 5/16"-18 1/4"-20 Lock Nut Serr. Flange Nut Adjustable Hinge...
- Page 3 I NCLU D E D PARTS...
- Page 4 The bracket will bolt together as shown below. The small angled bracket highlighted in red will only be used on bumpers with completely vertical fairleads. If your bumper has an angled fairlead, the hinge will bolt directly to the fairlead-side bracket. The bracket will then slide over the winch line and bolt behind the fairlead.
