ORDERING INFORMATION ( continued)
C O N T R O L L E R
MCW100C1007
MCW100C1015
MCW100E1005
MCW100E1013

TECHNICAL DATA

OPERATING VOLTAGE
12 Volt Model: 11 to 15 Vdc
24 Volt Model: 22 to 30 Vdc
SUPPLY CURRENT
0.6 A, maximum, not including output current to the valve
MAXIMUM VOLTAGE DROP (3 A load current)
3.5 Vdc
CURRENT OUTPUT
3 A, maximum

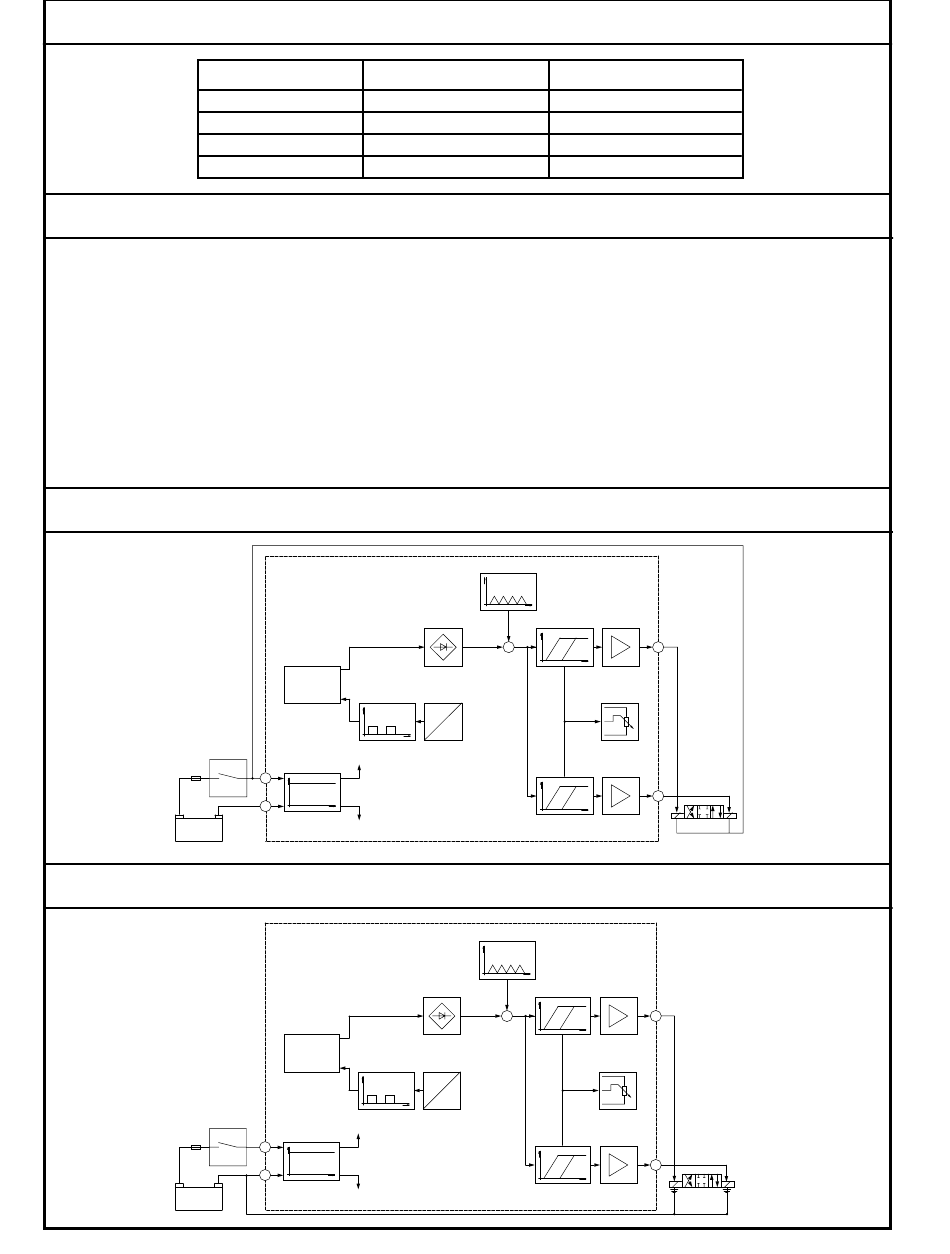

BLOCK DIAGRAM MCW100C - Ground Side Switching
F
+ -
Battery
BLOCK DIAGRAM MCW100E - High Side Switching
F
+
-
Battery
BLN-95-9013

SUPPLY VOLTAGE

12 Vdc
24 Vdc
12 Vdc
24 Vdc
Microsyn
f
V
440 Hz
V
t
Voltage regulator
V
t
Microsyn
f
V
440 Hz
V
t
Voltage regulator
V
t

TYPE OF OUTPUT

Ground side switching
Ground side switching
High side switching
High side switching
REVERSE POLARITY PROTECTION
200 Vdc, maximum
SHORT CIRCUIT PROTECTION
Full, with 0.5 Ω maximum resistance
TIME PROPORTIONAL OUTPUT FREQUENCY
f = 3 Hz ± 1 Hz
MINIMUM PULSE WIDTH
t = 37 ms ± 12 ms
V
3 Hz
t
+
V
-
+
t
Sensitivity
potentiometer
V
t
V
3 Hz
t
+
V
-
+
t
Sensitivity
potentiometer
V
t
2
