INSTALLATION - MOUNTING

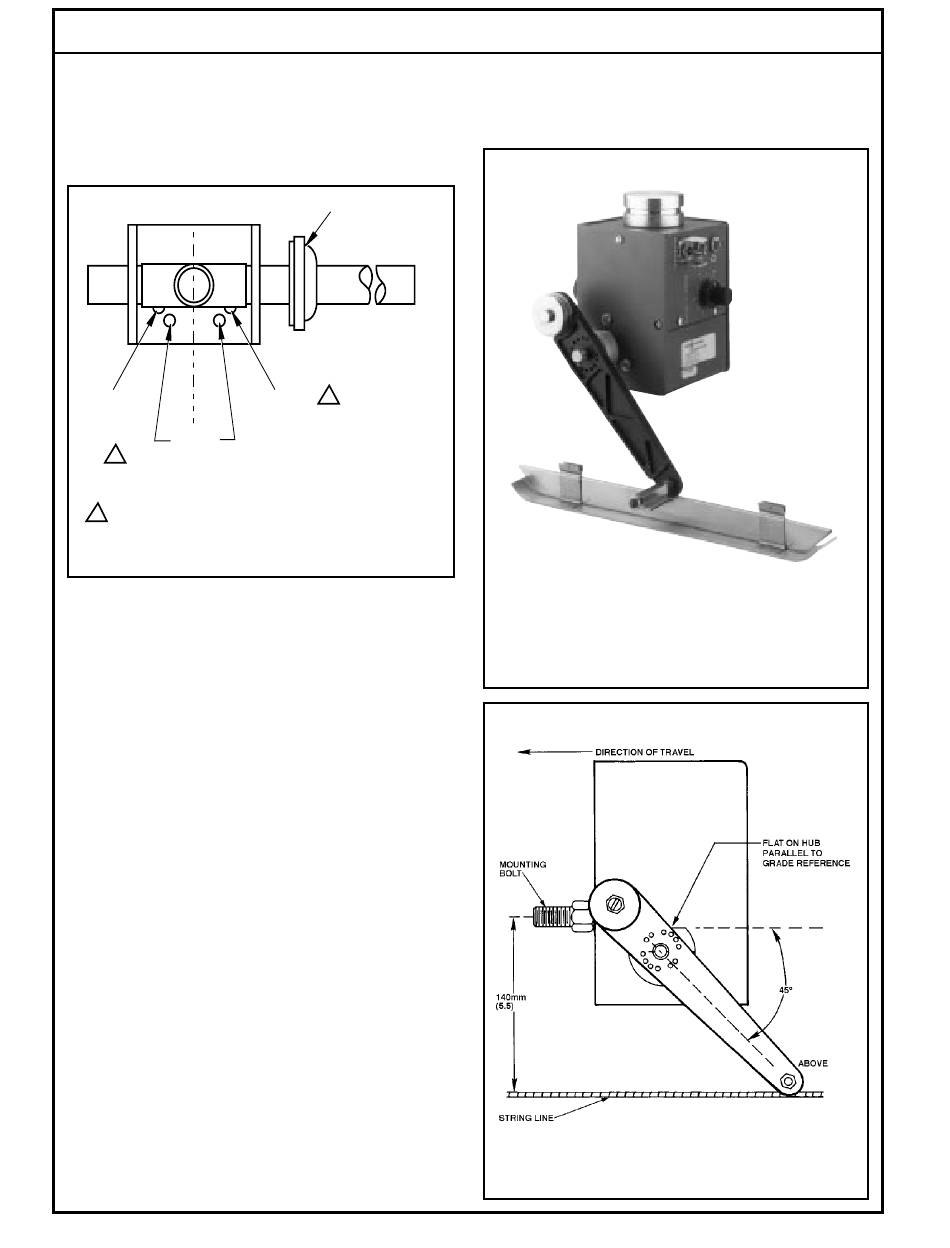

Attach the appropriate follower to the hub. Note the guide
hole location, and direction of travel. Guide holes in the
mounting bracket for the steering follower, Part number
KG07002, are located as shown (see Figure 7). The follower
may be attached to either hub. The right angle follower, Part
number KG04003, is used for grade applications.
STEERING
LEFT HUB
GRADE
RIGHT LEFT
1
HUB HUB
THE RIGHT HUB IS DEFINED AS THE ONE WITH
1
THE SPRING BIAS ADJUSTMENT THUMBSCREW
Figure 7.
After the follower has been installed, adjust the spring on the
hub so the follower exerts a very light pressure on the
stringline or reference surface. Note that the flat of the hub is
parallel to the top of the case when the MCW100C,E is at null
position.
BLN-95-9013
BREAKAWAY JOINT
STEERING
1
RIGHT HUB
952B
A skate assembly (Part number KG06001) and ski assembly
(Part number KG02001) may be used with the right angle
follower (Part number KG04003) when a firm reference
surface is used. (See Figures 8 and 9.)
Figure 8.
Figure 9.
6
1829
951A
