5.3. Basic Measurement – Pulse Velocity
In order to measure the pulse velocity it is necessary to measure the path length between the
two transducers.
* Best results are obtained when the received signal level is around 75%. Use the automatic
gain and voltage settings (See Chapter 3) for optimized performance.
© 2013 by Proceq SA

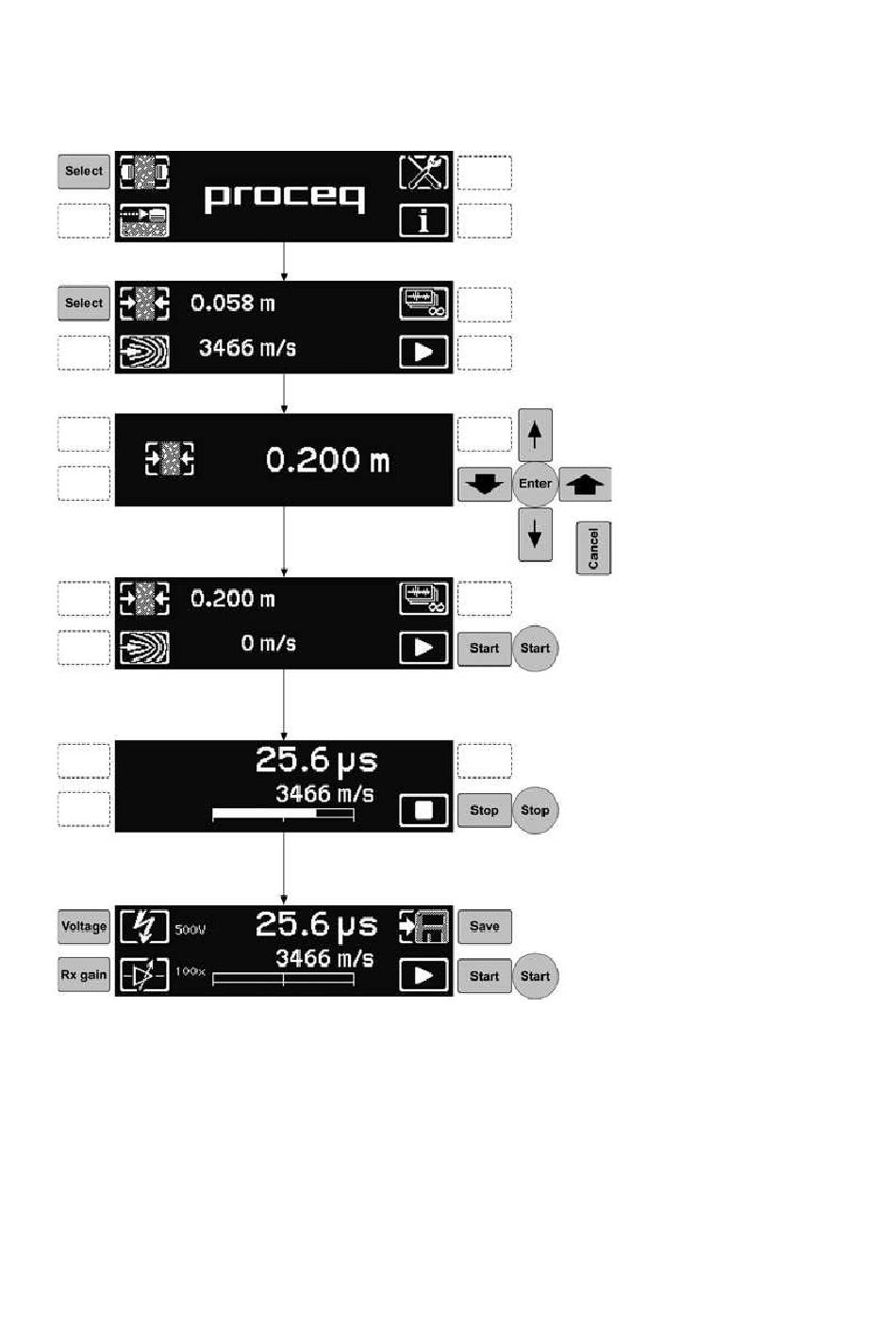

Select
"Basic Measurements"
Select parameter setting "path
length"
Enter the path length
Start the measurement
The display shows:
- Transmission time
- Measured pulse velocity
- Received signal level *
Stop the measurement
(Not necessary in burst mode)
Save the result or:
Adjust the gain settings.
(See Chapter 3) or:
Start a new measurement
