5.2. Basic Measurements
Basic measurements consist of a single measurement without the need to reposition the transducers.
There are two basic measurements, depending on which parameter is known, either the path length
or the pulse velocity.
Set path
length
Set pulse
velocity
Saving Measurements
Review List (Pundit Lab

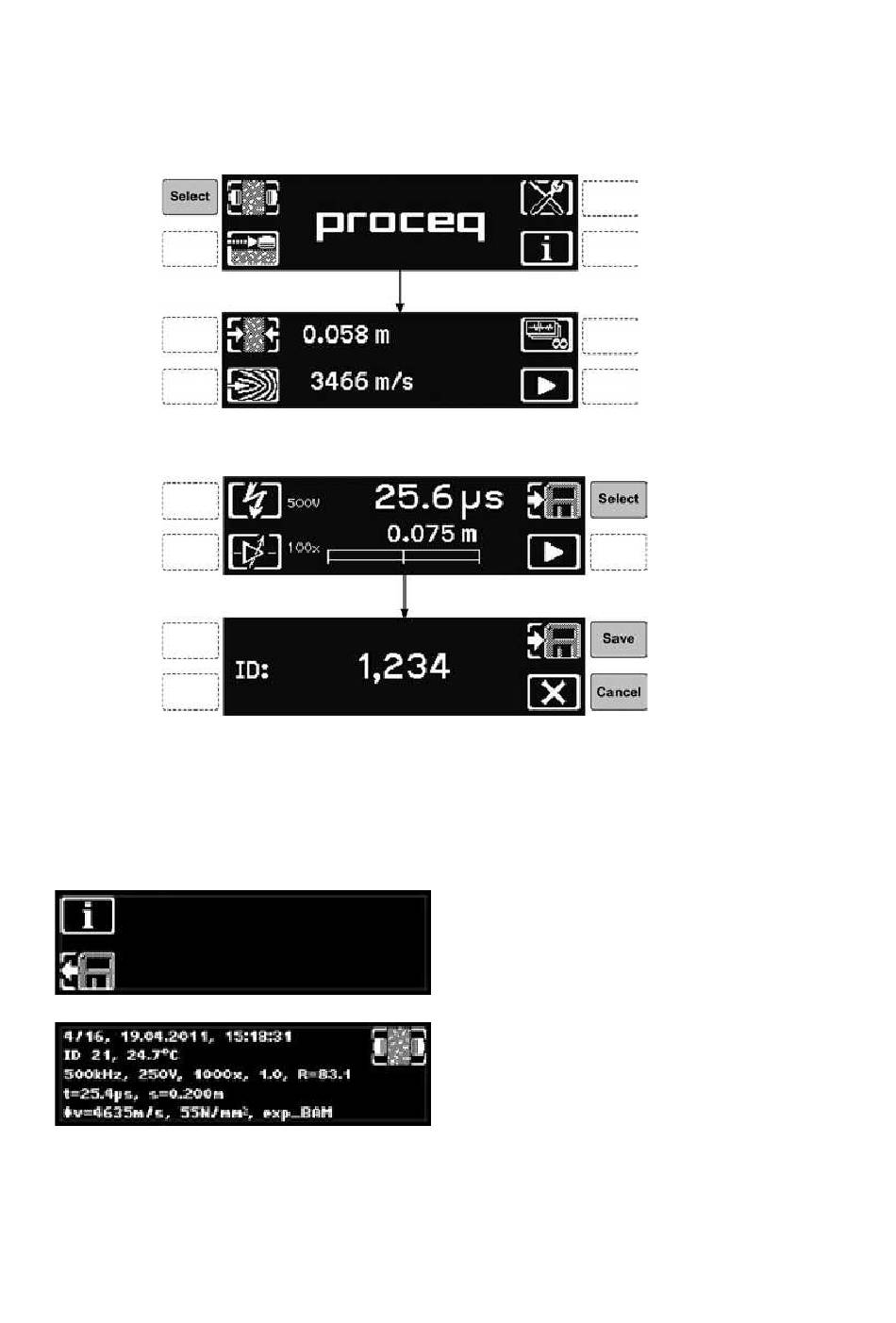

From the main menu, clicking on the system information key (See getting started) brings up a sub
menu:
1st row : Measurement ( e.g. 4 of 16) / Time stamp
2nd row: Measurement ID / Temperature
3rd row: Frequency / Voltage / Gain / Correction factor / Rebound value (SONREB only)
4th row: Transmission time / Distance
5th row: Pulse velocity / Compressive strength / Conversion curve
© 2013 by Proceq SA
+ only)
An asterisk beside the pulse velocity or the
Select this to key to display the system
information.
Select this key to go the review list which
allows previous measurements to be viewed.
distance indicates that this is the parameter
that was calculated.
Continuous/Burst
transmission
Stop/Start
Measurement
At the end of a
measurement the test
result can be saved.
Save into a file defined
by an ID number.
Do not save and return
to the previous screen.
