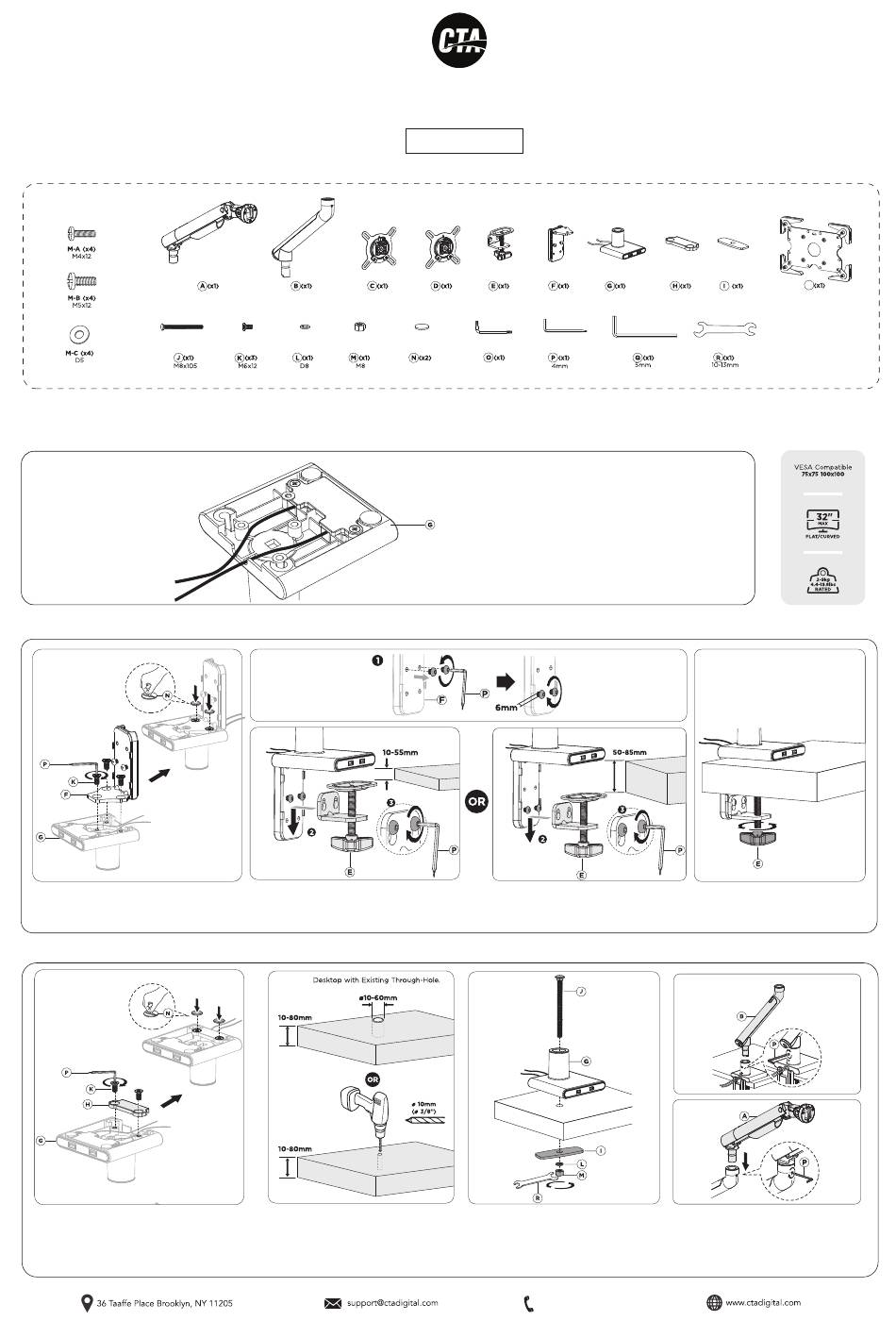

CTA PAD-SSMANS Instruction Manual

Slim Spring Arm Mount w/ USB Ports and
Universal Security Enclosure for Medium Size Tablets
CONTENTS:
INSTALLATIONS:

1. Pre-setup :

2. Setting Up Clamp Mount Option :

2A. Align L-shape component(F) with base of clamp mount
as shown above. Rotate in screws (K) through using
provided tool (P) until securely tighten. Afterwards peel off
sticker back of padding (N) and place firmly on the screws
(K).

3. Setting Up Grommet Mount Option :

3A. Align base (G) with component (H). Rotate in screws (K)
with provided tool (P) until securely tightened. After, locate
base pads and remove backing. Place adhesive side of pads
on the screws as illustrated above.
PAD-SSMANS
INSTRUCTION - MANUAL
Non-Security VESA
Plate Option with Plate Option using
knob turn to provided (P) tool to
lock/unlock
2B. Identify the overall thickness of the surface the clamp will be mounting on. If the thickness is in the 10-55mm range, you
will be using the higher setting on the L-shape bracket of the base. If the thickness is in the 50-85mm range, you will be using
the lower setting. Rotate in the screws (F) of the bracket until halfway in leaving some space. Hook on the knob component
(E). After hooked on, use the provided tool (P) and securely tighten the screws (F) until securely fastened.
**Powerdrill not
included and for
illustration
purposes only
3B. Using drill (not included), drill a 10mm diameter
hole for the grommet mount installation. If existing
hole is available, make sure diameter is in the
10-60mm range prior to setup for proper installation.
Security VESA
lock/unlock
1A. Prior to beginning the grommet or clamp
installation - press the USB cables into the groove
as shown to properly setup.
3C. Align base (G) with pre-drilled hole and insert
long screw (J) through the base and hole. From below
insert grommet mount components (I, L, M) onto the
long screw. Using fingers initially, rotate all the
grommet components until tightly fastened. Using
provided wrench tool (R),rotate hex nut (M) until
securely tightened.
888-733-4448
S
2C. Rotate knob (E) until securely tighten to
fasten clamp to surface.
3D. Take the bottom part of the clamp arm (B) and
insert the bottom connector into the base (G) as
illustrated above. Then tighten with provided tool (P)
until securely fastened. Then take the top part of
clamp arm (A) and insert into top connector part of the
bottom arm. Tighten joint with provided tool (P) as
illustrated.
