with VESA Tablet Security Holder
CONTENTS:
A
INSTALLATION:
1. Setting up Base to Body
A
**Lift or push down
lever to lock or
unlock wheels
1A. Align base (A) to body as shown. From below, rotate in (A) screw using
provided tool (I) until securely tightened.
3. Setting up Tray
J
3A. Using the small mount component (J), insert from the base (as shown
above). Using your fingers, slide until preferred height.

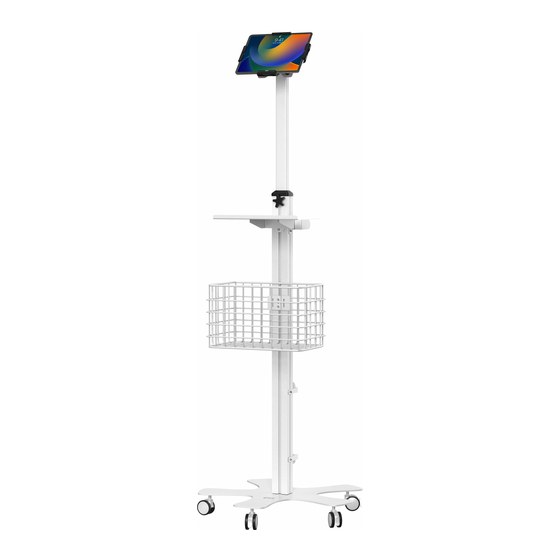

Medical Floor Stand
PAD-MFSV
INSTRUCTION - MANUAL
B
C
D
I
H
D
M5 x 14
M5 Allen Key
A
J
H
E
x4
M4 Nut
M5 x 14
F
x4
I
M5 x 8
G
x4
M5 Allen Key
M4 x 10
2. Attaching Enclosure to VESA
E
M4 Nut
G
x4
M4 x 10
A
2A. Place hex nut (E) on the front side of the holder VESA in the hex hole. Then,
align holder holes (L) to VESA plate holes (A). Rotate in screws(G) from behind
until securely tightened.
J
C
I
3B. Align tray (C) to mount component (J),then
rotate in screw (F) in from front as shown using
provided allen key (I) until securely tightened.
888-733-4448
L
J
M
K
Stack of 4 Piece
Foam Adapters
M4 Allen key
N
F
I
M5 Allen Key
M5 x 8
x1
L
x2
