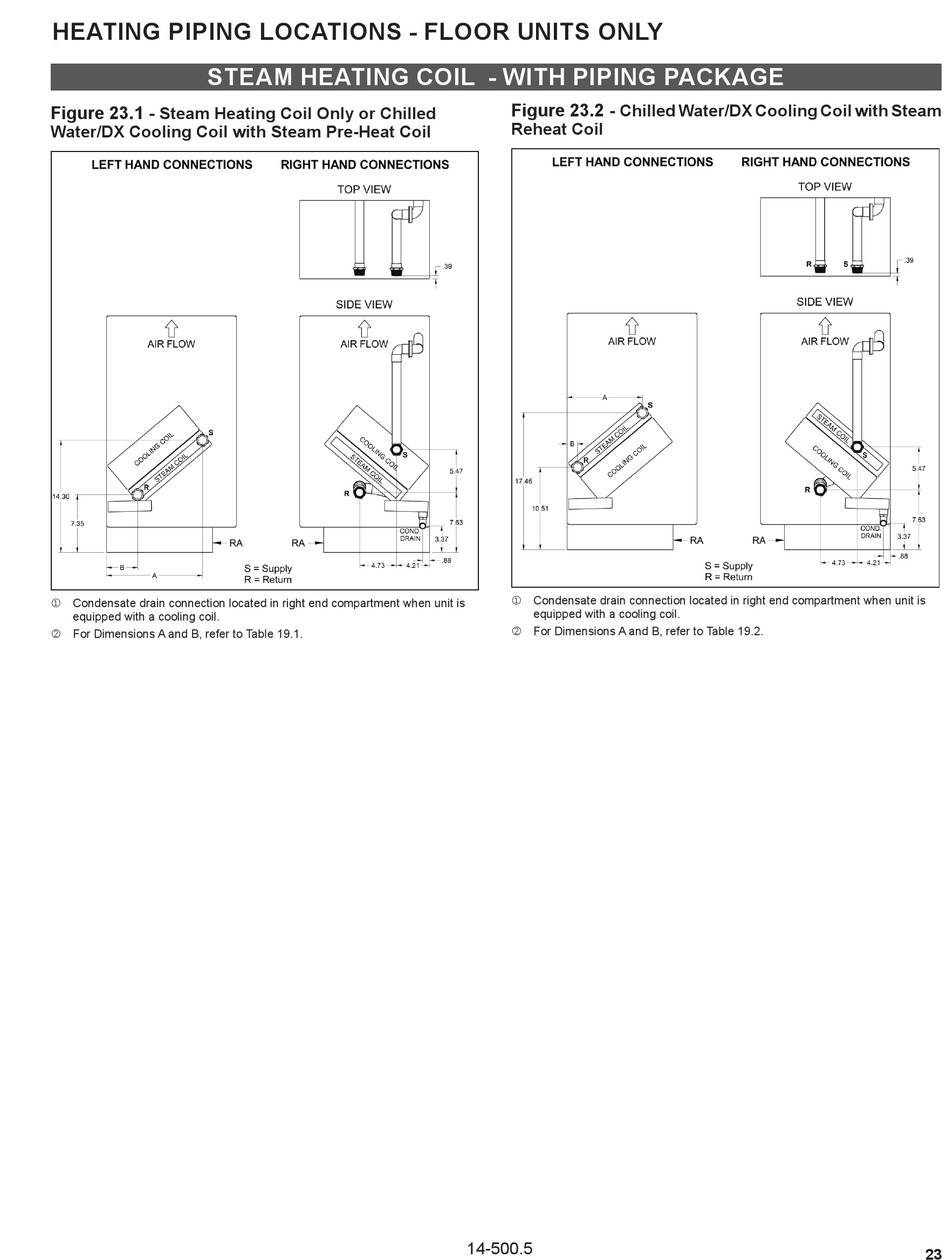

HEATING PIPING LOCATIONS - FLOOR UNITS ONLY
STEAM HEATING COIL - WITH PIPING PACKAGE
Figure 23.1 - Steam Heating Coil Only or Chilled
Water/DX Cooling Coil with Steam Pre-Heat Coil
j Condensate drain connection located in right end compartment when unit is
equipped with a cooling coil.
k For Dimensions A and B, refer to Table 19.1.
Figure 23.2 - Chilled Water/DX Cooling Coil with Steam
Reheat Coil
j Condensate drain connection located in right end compartment when unit is
equipped with a cooling coil.
k For Dimensions A and B, refer to Table 19.2.
14-500.5
23
