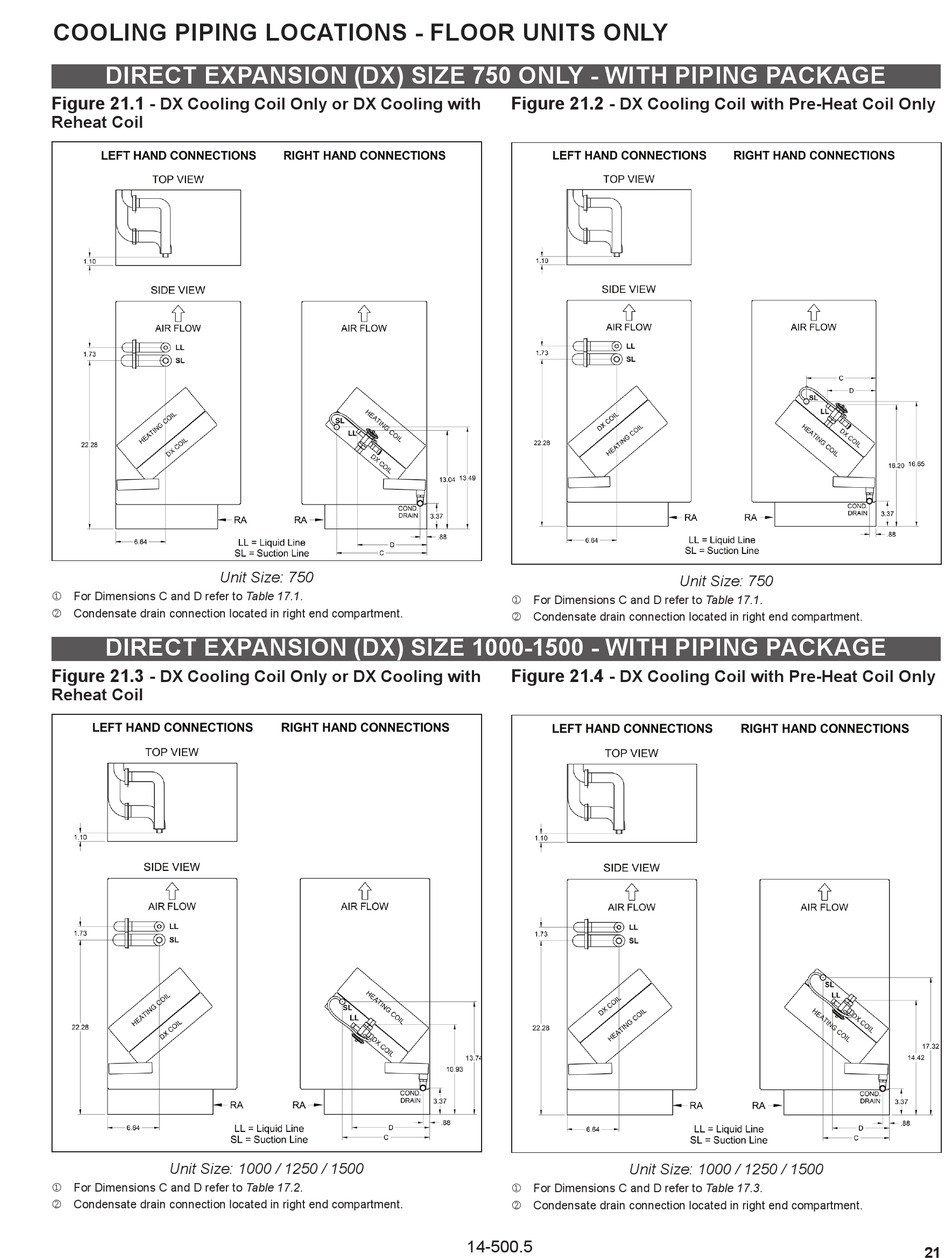

COOLING PIPING LOCATIONS - FLOOR UNITS ONLY
DIRECT EXPANSION (DX) SIZE 750 ONLY - WITH PIPING PACKAGE
Figure 21.1 - DX Cooling Coil Only or DX Cooling with
Reheat Coil
Unit Size: 750
j For Dimensions C and D refer to Table 17.1.
k Condensate drain connection located in right end compartment.
DIRECT EXPANSION (DX) SIZE 1000-1500 - WITH PIPING PACKAGE
Figure 21.3 - DX Cooling Coil Only or DX Cooling with
Reheat Coil
Unit Size: 1000 / 1250 / 1500
j For Dimensions C and D refer to Table 17.2.
k Condensate drain connection located in right end compartment.
Figure 21.2 - DX Cooling Coil with Pre-Heat Coil Only
j For Dimensions C and D refer to Table 17.1.
k Condensate drain connection located in right end compartment.
Figure 21.4 - DX Cooling Coil with Pre-Heat Coil Only
Unit Size: 1000 / 1250 / 1500
j For Dimensions C and D refer to Table 17.3.
k Condensate drain connection located in right end compartment.
14-500.5
Unit Size: 750
21
