D01393105A

EtherNet/IP™ Instructions for Use

TD-9000T(E/IP)

Need help?

Do you have a question about the TD-9000T and is the answer not in the manual?

Questions and answers

Summary of Contents for Teac TD-9000T

Page 1 D01393105A EtherNet/IP™ Instructions for Use TD-9000T(E/IP)
Page 2 EtherNet/IP is a trademark of ODVA, Inc. TEAC is a trademark of TEAC CORPORATION, registered in the U.S. and other countries. Other company names, product names and logos in this document are the trademarks or registered trademarks of their respective owners.
Page 3 2-3. Cyclic communication (implicit messages) ... . .7 Communication from a TD-9000T to a scanner ..7 Communication from a scanner to a TD-9000T ..9 2-4.

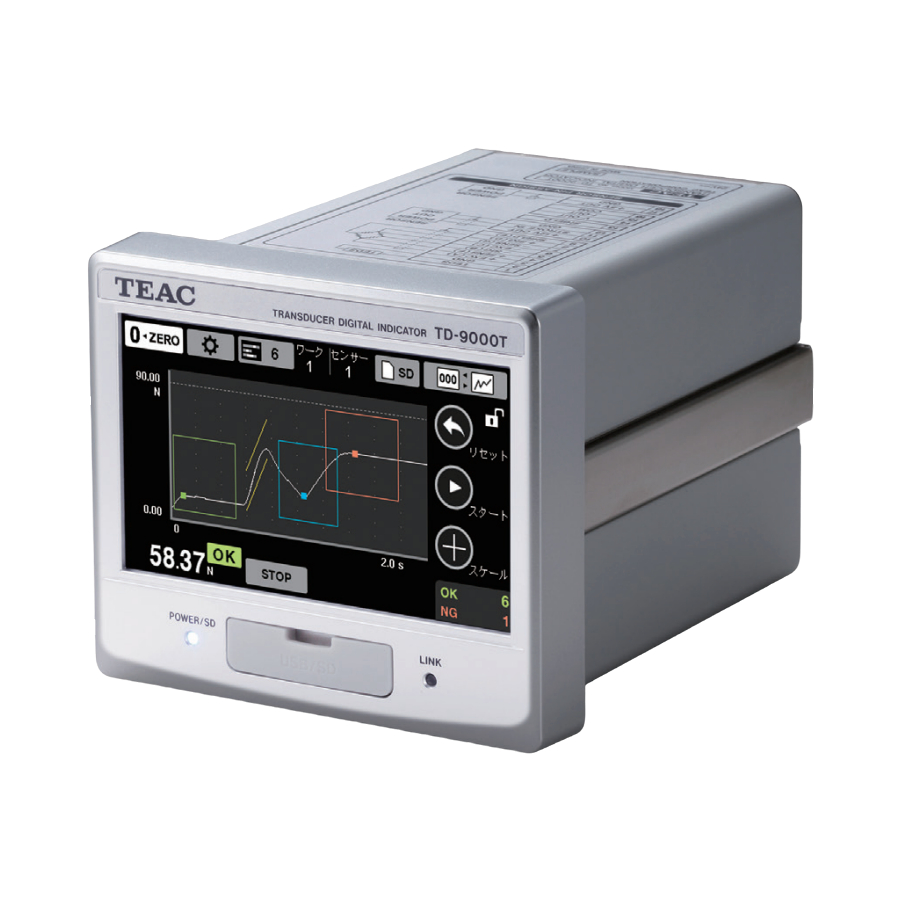

Page 4 1. Names and functions of parts 1-1. Front LINK indicator Unlit: No connection Blinking: Waiting for connection Lit: Connection established Blinking rapidly: Connection error...
Page 5 1. Names and functions of parts 1-2. Back Blinking green Online but connection not established SENSOR connector Lit red IP address is duplicated or fatal error Insert the included sensor connector plug here. Blinking red One or more connections have timed out (CIP Class 1 or 3) CONTROL connector MS indicator...
Page 6 2. Communication functions 2-1. FIELD NETWORK 2-2. EtherNet/IP Refer to the following values for connection input/output settings. 2-1-1. SETTINGS Input settings To open the FIELD NETWORK screen, touch the buttons in the Instance ID: 100 following order on the Home Screen. Data size: 48-byte CALIB.
Page 7 Communication from a TD-9000T to a scanner will return indicator values and measurement results. Data size is 24 words. o Communication from a scanner to a TD-9000T will send control signals to start/stop measurement, for example. Data size is 1 word.
Page 8 2. Communication functions Measurement status Measurement X axis Setting Measuring Trigger output Band judgment complete displacement Status Setting Overall displacement judgment Overall load judgment Status Current status Setting OVER/FULL SD card error Sensor number Work number Status bit1 bit0 bit3 bit2 bit1 bit0...
Page 9 2. Communication functions Communication from a scanner to a TD-9000T Output data (scanner to TD-9000T) Clear results Prevent Enable/ Clear peak/ Force back- Start/stop (reset mea- Setting touchscreen disable judg- Switch zone Reserved surement bottom light lighting measurement operation ment output...
Page 10 NOTE If values other than parameters are set, they will be ignored. System Content Command Command No. Byte Parameter Note Device name 5010 “TD-9000T “ ASCII Firmware version 5020 “1.00 “ ASCII Backlight setting (LCD 5301 0 to 3 BRIGHTNESS)
Page 11 2. Communication functions Content Command Command No. Byte Parameter Note 0: None, 1: Load, 2: Displacement, 3: OK Output item 5510 count, 4: NG count Load output threshold (HI) 5511 ±99999 Load output threshold (LO) 5512 ±99999 Displacement output Trigger output 1 5513 ±99999 threshold (HI) Displacement output 5514 ±99999...
Page 12 2. Communication functions Calibration Content Command Command No. Byte Parameter Note 0: Sensor Memory 1, 1: Sensor Sensor memory 1000 Memory 2, 2: Sensor Memory 3, 3: Sensor Memory 4 Sampling 1006 0: 5 kHz, 1: 25 kHz Y axis 1007 0: Load, 1: Load and displacement X axis 1008 0: Time, 1: Displacement The definitions 0:80 ms, 1: 170 ms, 2: 400 ms, 3: 800 ms, change according...
Page 13 2. Communication functions Content Command Command No. Byte Parameter Note Enable/disable 1200 0: Disabled, 1: Enabled linearization The point desig- nated by this can be Select linearization point 1201 1 to 5 changed with the fol- lowing commands. Selection point enabled/ 1202 0: Disabled, 1: Enabled disabled...
Page 14 2. Communication functions Content Command Command No. Byte Parameter Note Count number (higher Always set from 1600 Higher 2 digits (0–15) 2 digits) higher. Count number (lower 1–15000000 range 1601 Lower 6 digits (000000 to 999999) 6 digits) with higher Display value (equivalent Pulse displace- 1602...
Page 15 2. Communication functions Content Command Command No. Byte Parameter Note The zone set by this 1 to 5 can be changed Set zone number 7200 (resets to 1 when power turned on/off ) with the following commands. Enable zone 7201 0: Disabled, 1: Enabled Zone range starting point 7202...
Page 16 2. Communication functions Transmission of measurement and band waveforms The maximum amount of data is 2240 for measurement and band waveforms. To send data, divide all data into 10 parts, and send 224 data with a single command number. Use measurement range (305) and band waveform range (306) commands, and look up necessary data ranges. Waveform data Excluding decimal points, send indicator values as 2-byte binary data for each single data unit.
Page 17 3. Setting lists 3-1. Setting value list Item Setting Format Default value Setting range/options CONTROL INPUT Selection CONT. TERMINAL CONT. TERMINAL, COMM. FIELD NETWORK MEMORY CONTROL Selection FORBID FORBID, ALLOW IP ADDRESS Input 192.168.0.10 0.0.0.0 to 255.255.255.255 EtherNet/IP SUBNET MASK Input 255.255.255.0 0.0.0.0 to 255.255.255.255...
Page 18 4. Specifications EtherNet/IP communication specifications Transmission type 10BASE-T/100BASE-TX Transmission 10/100 Mbps speed Communication 100 m or less between nodes distance Transmission cable Category 5/5e STP cable Topology Star, line, tree Maximum number No limit of connected units General Weight About 1,040 g o Specifications and appearance are subject to change without notice.
