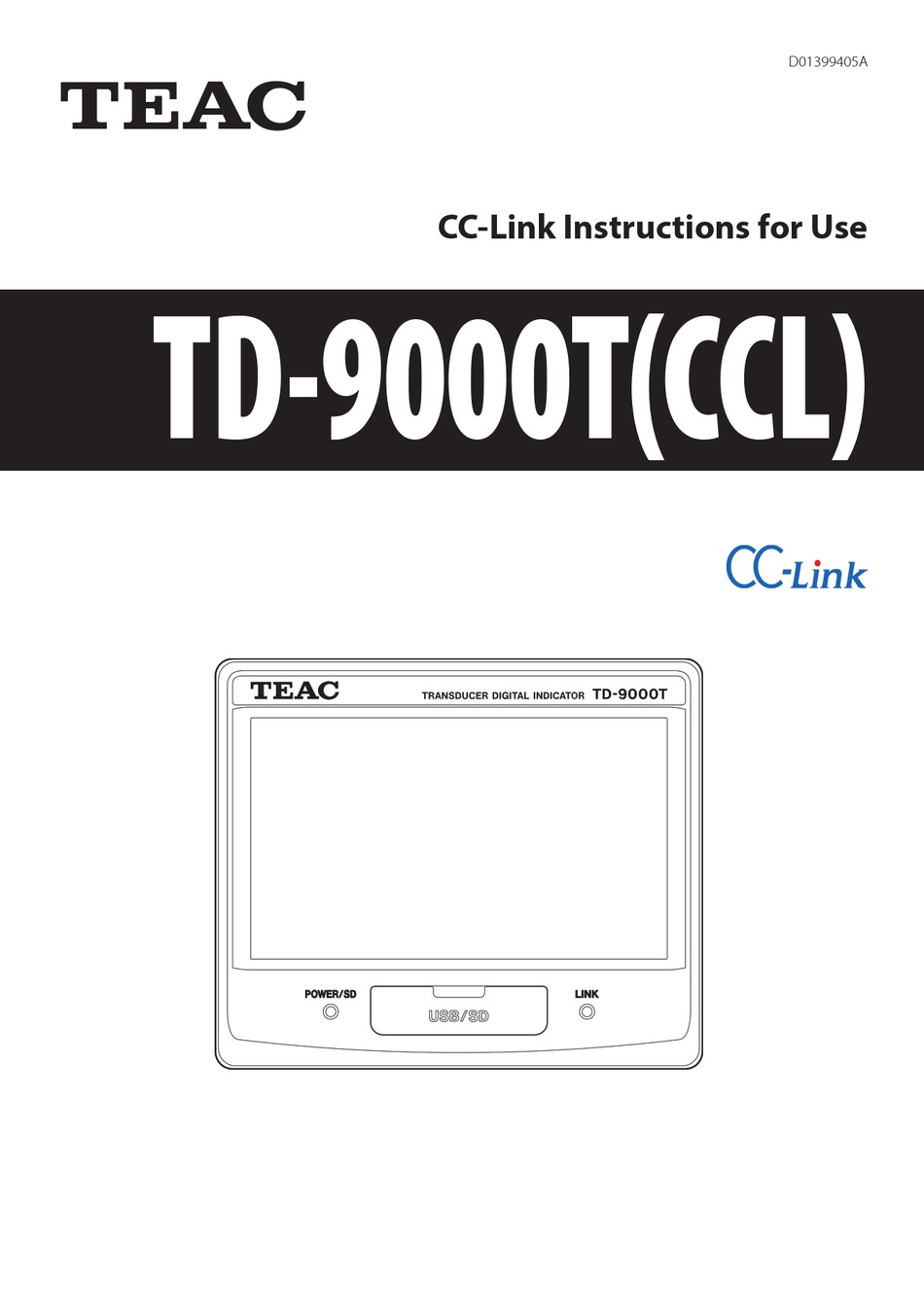

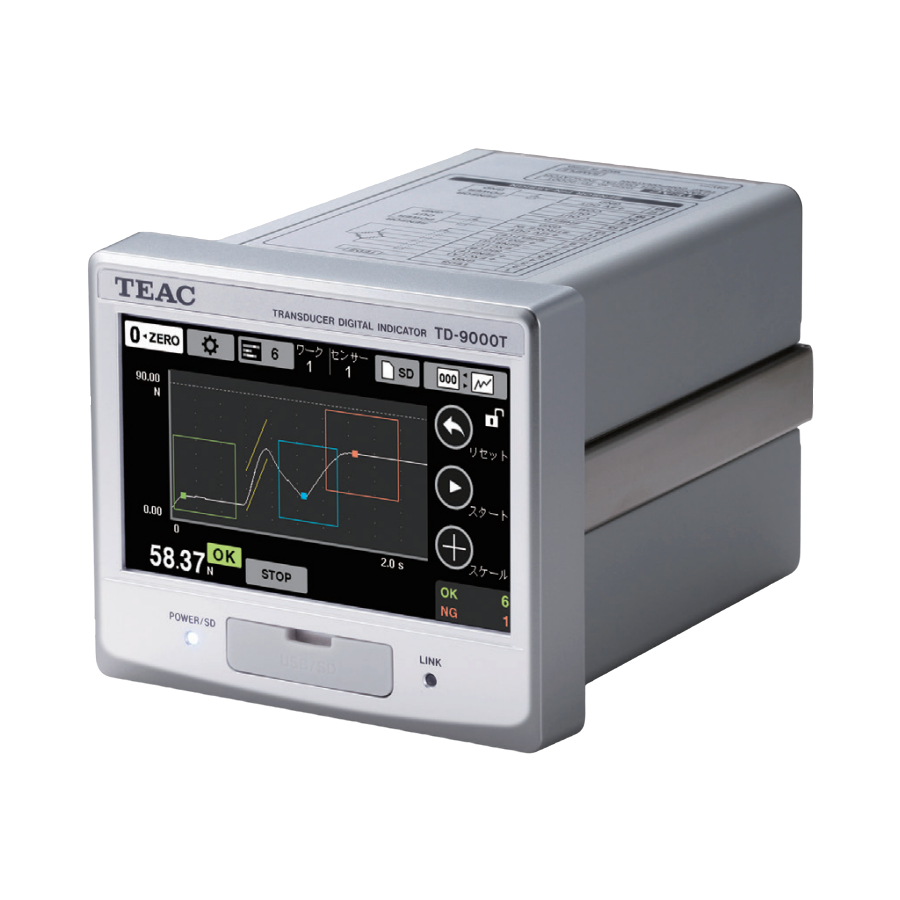

  • Page 1 D01399405A CC-Link Instructions for Use TD-9000T(CCL)

  • Page 2: Introduction

    Introduction Thank you for purchasing the TD-9000T (CCL) Digital Indicator. ATTENTION Please read this manual and the manual for the main unit com- CC-Link and USB/RS232C can be used for transmission with pletely before using them to get the best performance and this unit.

  • Page 3: Table Of Contents

    Contents Introduction ..........2 5.

  • Page 4: Names And Functions Of Parts

    1. Names and functions of parts 1-1. Front LINK indicator Unlit: Network not connected (link to network not established) Blinking: Transmission error Lit: Refreshing and polling...

  • Page 5: Back

    1. Names and functions of parts 1-2. Back Indicators SENSOR connector Insert the included sensor connector plug here. Unlit: Network not connected or transmission error occurred (invalid carrier, timeout, CONTROL connector etc.) Lit: After network joined, refreshing and polling received normally DC power supply input terminals Connect a DC power supply.

  • Page 6: Communication Functions

    2. Communication functions 2-1. Field network 2-2. CC-Link 2-1-1. Settings 2-2-1. Settings To open the FIELD NETWORK screen, touch the buttons in the To open the CC-Link screen, touch the buttons in the following following order on the Home Screen. order on the Home Screen.

  • Page 7: Cc-Link Settings

    59SNB) before use. Connect the ferrite core to the TD-9000T (CCL) end. o If a TD-9000T (CCL) will be the unit at both ends, connect terminators to both DA and DB. o Always disconnect the power before working with wiring.

  • Page 8: Address Map

    3. CC-Link settings 3-3. Address map 3-3-1. Remote registers with 4 stations occupied (pages 0–2) Real-time page (page 0) TD-9000T (CCL) e Master station Master station e TD-9000T (CCL) Station Remote Remote input Address Name Address Name Area output RWr0000...

  • Page 9: Waveform Page

    3. CC-Link settings Waveform page (page 2) TD-9000T (CCL) e Master station Master station e TD-9000T (CCL) Station Remote Remote input Address Name Address Name Area output Waveform data (n)/ Band waveform data (n)/ RWr0000 0x2E0 RWw0000 0x1E0 Band start position...

  • Page 10: Remote I/O With 4 Stations Occupied

    3. CC-Link settings 3-3-2. Remote I/O with 4 stations occupied TD-9000T (CCL) e Master station Master station e TD-9000T (CCL) Station Remote Remote input Address Name Address Name output RX0000 Exclusive area response RY0000 Exclusive area request RX0001 RY0001 RX0002...
  • Page 11 3. CC-Link settings TD-9000T (CCL) e Master station Master station e TD-9000T (CCL) Station Remote Remote input Address Name Address Name output RX0020 CONTINUE RY0020 RX0021 STOP RY0021 RX0022 WAIT RY0022 RX0023 RY0023 Screen selection (indicator RX0024 Screen display (indicator value)
  • Page 12 3. CC-Link settings TD-9000T (CCL) e Master station Master station e TD-9000T (CCL) Station Remote Remote input Address Name Address Name output RX0030 High limit (HI) RY0030 Zone 1 RX0031 OK (OK) RY0031 load RX0032 Low limit (LO) RY0032 RX0033...

  • Page 13: Remote Registers With 2 Stations Occupied

    3. CC-Link settings 3-3-3. Remote registers with 2 stations occupied (pages 0–3) Real-time page (page 0) TD-9000T (CCL) e Master station Master station e TD-9000T (CCL) Station Remote Remote input Address Name Address Name Area output RWr0000 0x2E0 Load value...

  • Page 14: Remote I/O With 2 Stations Occupied

    3. CC-Link settings 3-3-4. Remote I/O with 2 stations occupied TD-9000T (CCL) e Master station Master station e TD-9000T (CCL) Station Remote Remote input Address Name Address Name output RX0000 Exclusive area response RY0000 Exclusive area request RX0001 RY0001 RX0002...
  • Page 15 3. CC-Link settings TD-9000T (CCL) e Master station Master station e TD-9000T (CCL) Station Remote Remote input Address Name Address Name output RX0020 CONTINUE RY0020 RX0021 STOP RY0021 RX0022 WAIT RY0022 RX0023 RY0023 Screen selection (indicator RX0024 Screen display (indicator value)
  • Page 16 3. CC-Link settings Sensor number (designation) Switch the sensor memory to the specified number. ATTENTION To enable sensor switching, set MEMORY CONTROL to “ALLOW” (page 25). Work number (designation) Use to switch to the specified work number. WORK SWITCHING 1 is the LSB and WORK SWITCHING 8 is the MSB.

  • Page 17: Setting Procedures

    3. CC-Link settings Writing operation R/W = OFF 3-4. Setting procedures Common area request [RYn2] 3-4-1. Writing exclusive area values to Common area response [RXn2] the unit Confirm that all exclusive and common area requests and [RXn3] responses are off before conducting the following. Command data [RWwnC,D] When the master station “Exclusive area request”...

  • Page 18: Transmission Of Measurement And Band Wave

    3. CC-Link settings 3-4-3. Transmission of measurement and band waveforms Use page 2 of the remote register to do this (page 9). These are enabled only when set to 4 STATIONS. In the following explanation, station number 1 is used as an example. Band waveform start and stop positions When making settings, set values for the band start position (RWw000) and the band end position (RWw0001), and set control (wave- form selection) (RWw000B) to 0x10.

  • Page 19: Commands

    3. CC-Link settings 3-5. Commands o See “Reading, writing and operations using commands in the common area” on page  17 for details about reading and writing by command. NOTE If values other than parameters are set, they will be ignored. System Command Command No.

  • Page 20: Field Network

    3. CC-Link settings Content Command Command No. Byte Parameter Note 0: None, 1: Load, Output item 5510 2: Displacement, 3: OK count, 4: NG count Load output threshold 5511 ±99999 (HI) Load output threshold 5512 ±99999 Trigger output 1 (LO) Displacement output 5513 ±99999 threshold (HI) Displacement output 5514 ±99999...

  • Page 21: Calibration

    3. CC-Link settings Calibration Command Command No. Byte Parameter Note Content 0: Sensor memory 1, 1: Sensor Sensor memory 1000 memory 2, 2: Sensor memory 3, 3: Sensor memory 4 Sampling 1006 0: 5 kHz, 1: 25 kHz Y axis 1007 0: Load, 1: Load and displacement X axis 1008 0: Time, 1: Displacement The definitions change 0: 80 ms, 1: 170 ms, 2: 400 ms, according to the X...
  • Page 22 3. CC-Link settings Command Command No. Byte Parameter Note Content Enable/disable linearization 1200 0: Disabled, 1: Enabled The point designated by this can be changed Select linearization point 1201 1 to 5 with the following commands. Selection point enabled/ 1202 0: Disabled, 1: Enabled disabled Setting this value will...

  • Page 23: Work

    3. CC-Link settings Content Command Command No. Byte Parameter Note Count number (higher 2 1600 Higher 2 digits (0–15) Always set from higher. digits) Count number (lower 1–15000000 range with 1601 Lower 6 digits (000000–999999) 6 digits) higher Display value (equivalent Pulse displace- 1602 00001–99999...
  • Page 24 3. CC-Link settings Command Command No. Byte Parameter Note Content Enable/Disable waveform If no reference wave- Band judgment comparison (WAVEFORM 7100 0: Disabled, 1: Enabled form has been set, it will COMP.) not become enabled. Zone switching 7101 0: Preset, 1: External input Indicator value display Zone judgment 7102...

  • Page 25: Setting Lists

    4. Setting lists 4-1. Setting value list Item Setting Format Default value Setting range/options CONTROL INPUT Selection CONT. TERMINAL CONT. TERMINAL, COMM. Field network MEMORY CONTROL Selection FORBID FORBID, ALLOW OPPUPIED STATIONS Selection 4 STATIONS 4 STATIONS, 2 STATIONS STATION NUMBER Input 1 to 63 CC-Link 156 ...
  • Page 26 5. Specifications General Weight About 1,040 g o Specifications and appearance are subject to change without notice. o Weight and dimensions are approximate. o Illustrations in this manual might differ slightly from production models.
