3 | Operation

3 Operation
3.1

Overview of the folding shade

1
6
5
5
F
4

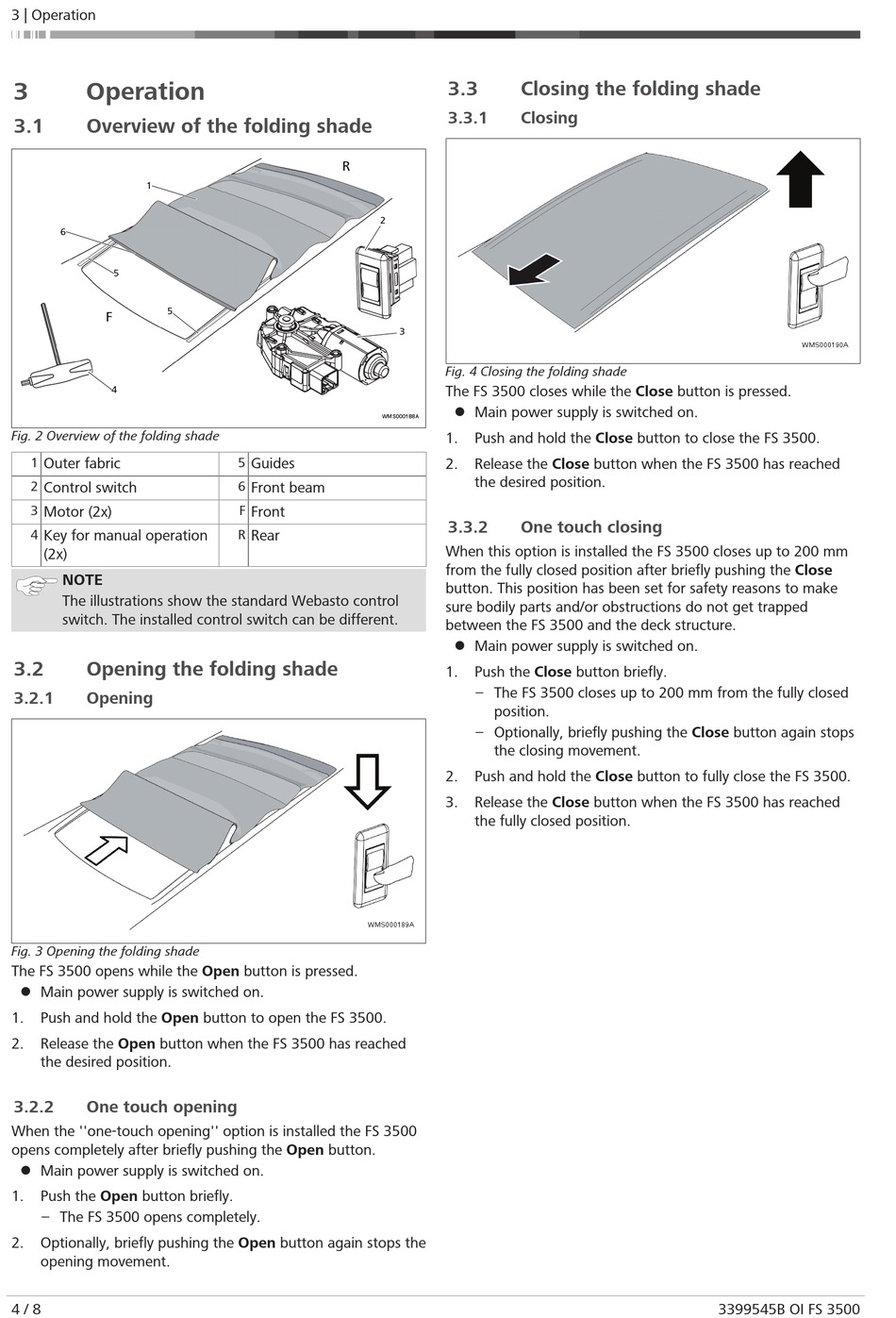

Fig. 2 Overview of the folding shade
1
Outer fabric
2 Control switch
3 Motor (2x)
4 Key for manual operation
(2x)
NOTE
The illustrations show the standard Webasto control
switch. The installed control switch can be different.
3.2

Opening the folding shade

3.2.1 Opening
Fig. 3 Opening the folding shade
The FS 3500 opens while the Open button is pressed.
l Main power supply is switched on.
1. Push and hold the Open button to open the FS 3500.
2. Release the Open button when the FS 3500 has reached
the desired position.
3.2.2 One touch opening
When the ''one-touch opening'' option is installed the FS 3500
opens completely after briefly pushing the Open button.
l Main power supply is switched on.
1. Push the Open button briefly.
– The FS 3500 opens completely.
2. Optionally, briefly pushing the Open button again stops the
opening movement.
4 / 8
R
2
3
WMS000188A
5
Guides
6 Front beam
F Front
R Rear
WMS000189A
3.3

Closing the folding shade

3.3.1 Closing
Fig. 4 Closing the folding shade
The FS 3500 closes while the Close button is pressed.
l Main power supply is switched on.
1. Push and hold the Close button to close the FS 3500.
2. Release the Close button when the FS 3500 has reached
the desired position.
3.3.2 One touch closing
When this option is installed the FS 3500 closes up to 200 mm
from the fully closed position after briefly pushing the Close
button. This position has been set for safety reasons to make
sure bodily parts and/or obstructions do not get trapped
between the FS 3500 and the deck structure.
l Main power supply is switched on.
1. Push the Close button briefly.
– The FS 3500 closes up to 200 mm from the fully closed
position.
– Optionally, briefly pushing the Close button again stops
the closing movement.
2. Push and hold the Close button to fully close the FS 3500.
3. Release the Close button when the FS 3500 has reached
the fully closed position.
WMS000190A
3399545B OI FS 3500
