Fast Ethernet Office Switch • User Manual
thank you for purchasing the intEllinEt nEtWoRK solutions
switch, Model 502023 (5-port plastic housing), Model 523301 (5-port metal housing),
Model 502054 (8-port plastic housing) or Model 523318 (8-port metal housing).

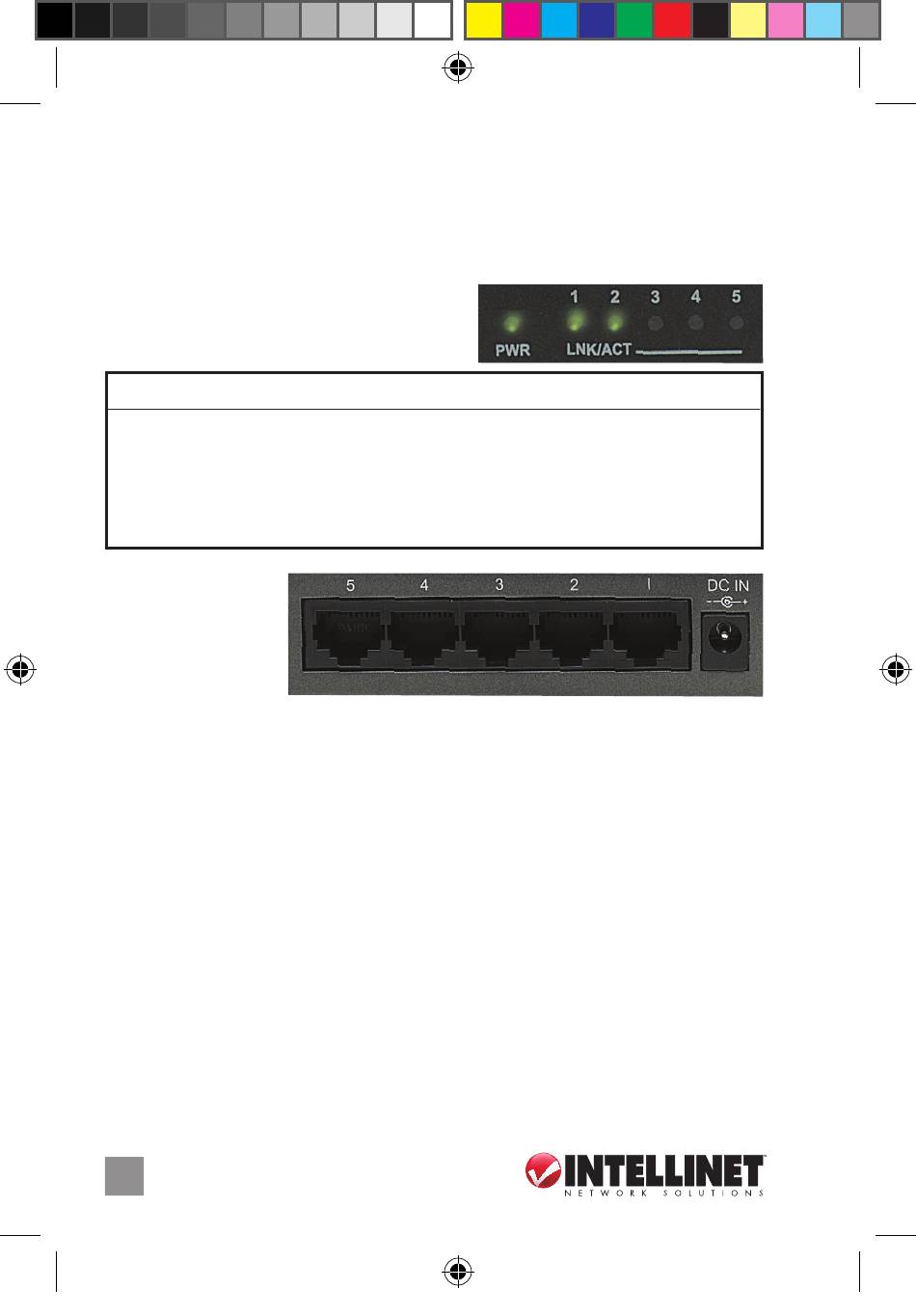

Front Panel
the lED indicators — power, link/activity —
make monitoring and troubleshooting easier.
LED
pWR
lnK/act
rear Panel
Power
plug the female end
of the power adapter
firmly into the in jack
on the rear panel and the other end into an electrical outlet. confirm that the power
lED is lit. NOTE: to ensure proper operation, use only the included power adapter.
all ports on the switch support auto-MDi/MDi-X functionality, so crossover cables and
uplink ports are not needed for connections to pcs, routers, hubs, other switches, etc.
cat5/5e utp/stp cables provide optimal performance; if a status lED doesn't indicate
a link or activity, check the corresponding device for proper setup and operation.
InStallatIon
prior to use, it is recommended that the switch be placed/positioned:
• on a level surface that can support the weight of the switch (and any other items
that need to be considered);
• with a minimum of 25 mm (approx. 1") of clearance on the top and sides for
adequate ventilation;
• away from sources of electrical noise: radios, transmitters, broadband amplifiers, etc.;
• where it cannot be affected by excessive moisture; and
• within 100 m (approx. 328') of network devices it's to be connected to.
2
502023_523301_502054_523318_07_UM_ML.indd 2
Status
on
Off
on
Blinking
Off
English
Operation
power on
Check the AC connection; turn the power on
Valid port connection
Valid port connection; data transmitted/received
No link established
English
Fast Ethernet office
™
4/1/10 9:39:08 AM
