Summary of Contents for Intellinet 503631

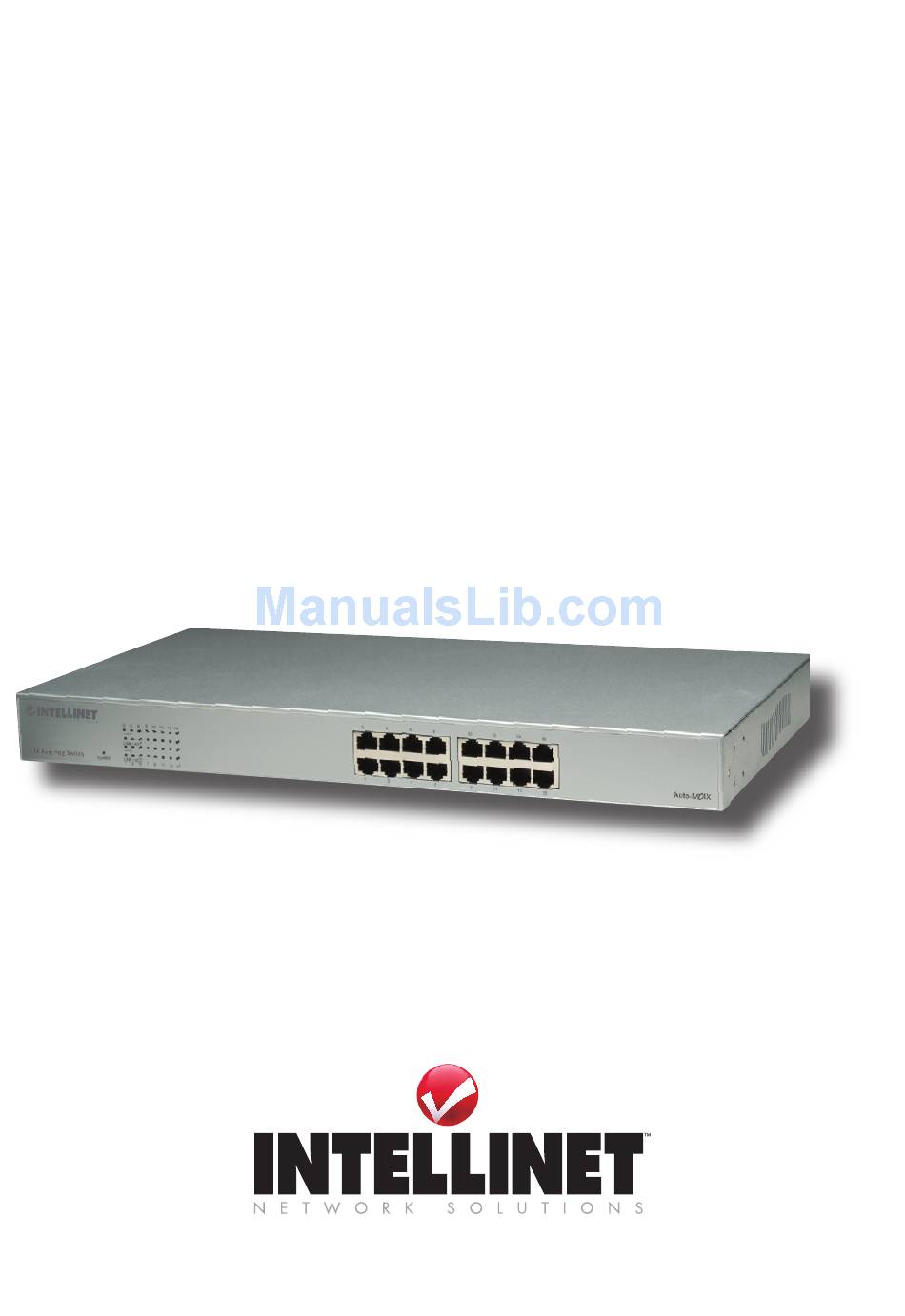

- Page 1 Fast EthErnEt rackmount E switch usEr manual Models 503631 & 524155 INT-503631/524155-UM-0408-01...
- Page 3 • Full-power Class 2 (Model 524155) or Class 3 (Model 503631) Poe design • Power output up to 7.3 Watts (Model 524155) or 15.4 Watts (Model 503631) per port • store and forward switching architecture •...
- Page 4 FCC Warning This device has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and radiates radio frequency energy and, if not installed and used in accordance with the user manual, may cause interference, which the user will be required to correct at his own expense.
- Page 5 LEDs The front-panel leds (at left in image above) will be on (lighted), off or blinking/flashing, indicating function status as follows. PoWeR The switch has power and is ready for use. off: The switch has no power. lINK/ACT on: The port is ready for 10/100 Mbps connection. Flashing: data is being transmitted/received at 10 Mbps.
-
Page 6: Specifications
• operating temperature: 0 – 60°C (32 – 140°F) • operating humidity: 10 – 90% RH, non-condensing • storage temperature: -20 – 90°C (-4 – 194°F) Package Contents • Fast ethernet Rackmount Poe switch, Model 503631 or 524155 • Power cable • User manual... - Page 8 INTELLINET NETWORK SOLUTIONS offers a complete line ™ of active and passive networking products. Ask your local computer dealer for more information or visit www.intellinet-network.com Copyright © INTELLINET NETWORK SOLUTIONS All products mentioned are trademarks or registered trademarks of their respective owners.
