Intellinet 502023 User Manual

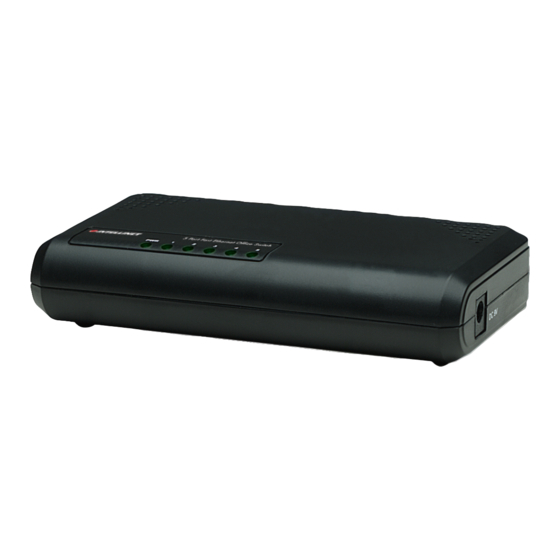

5-port fast ethernet office switch
Hide thumbs
Also See for 502023:
- User manual (13 pages) ,
- User manual (8 pages) ,
- User manual (13 pages)
Related Manuals for Intellinet 502023
Summary of Contents for Intellinet 502023

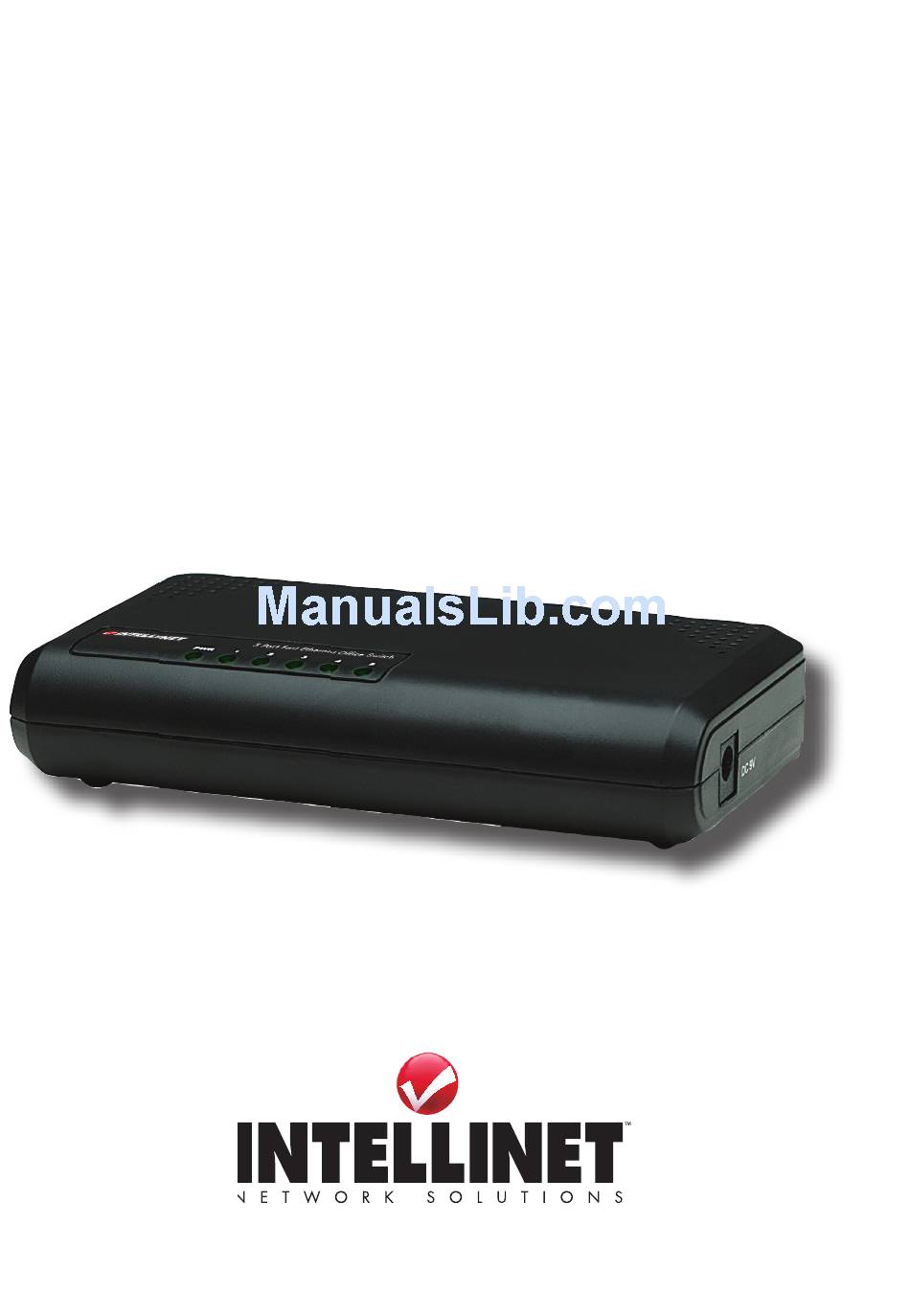

- Page 1 Fast EthErnEt OFFicE switch usEr manual Models 502023, 523301, 502054, 523318 Model shown: 502023 5-Port INT-502023/523301/502054/523318-UM-0408-04...
- Page 2 Thank you for purchasing the INTELLINET NETWORK SOLUTIONS ™ Fast Ethernet Office Switch, Model 502023 (5-port with plastic housing), Model 523301 (5-port with metal housing), Model 502054 (8-port with plastic housing) or Model 523318 (8-port with metal housing). This high-performance switch provides you with the ability to segment network traffic, extend Fast Ethernet connection distance and convert data packets between different transmission speeds.
-
Page 3: Fcc Statement
Fcc statEmEnt These Fast Ethernet Office Switches have been tested and comply with the limits for a Class B digital device, pursuant to Part 15 of the Federal Communications Commission (FCC) Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. - Page 4 Power Plug the female end of the power adapter firmly into the receptacle (on the rear panel of Models 502023, 523301 and 523318; on the side panel of Model 502054) and the other end into an electrical outlet. Confirm that the power LED is lit for a normal power status. NOTE: To ensure proper operation, use only the power adapter included with this switch.
- Page 5 Ports All ports on the Fast Ethernet Office Switch support Auto-MDI/MDI-X functionality, so crossover cables and uplink ports are not needed for connections to PCs, routers, hubs, additional switches or other devices. Cat5/5e UTP/STP cables provide optimal performance; if a status LED corresponding to any of the ports in use doesn’t indicate a link or activity, check the connected device for proper setup and operation.
-
Page 6: Specifications
• FCC Class B, CE Mark General • Ports: - Models 502023 & 523301: 5 10/100 Mbps NWay - Models 502054 & 523318: 8 10/100 Mbps NWay • Cable: Cat3, 4, 5 UTP/STP • Duplex modes: all ports (up to 200 Mbps) •... -
Page 7: Package Contents
- Models 523301 & 523318: metal • Physical size: - Models 502023 & 523301: 125 x 72 x 25 mm (5 x 2.8 x 1 in.) - Models 523301 & 523301: 130 x 77 x 24 mm (5.1 x 3 x 0.9 in.) Package Contents •... - Page 8 INTellINeT NeTWoRK solUTIoNs offers a complete line ™ of active and passive networking products. Ask your local computer dealer for more information or visit www.intellinet-network.com Copyright © INTELLINET NETWORK SOLUTIONS All products mentioned are trademarks or registered trademarks of their respective owners.
