Intellinet 503907 User Manual

Cat5 kvm switch
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
c
5
at
kvm
switch
user
manual

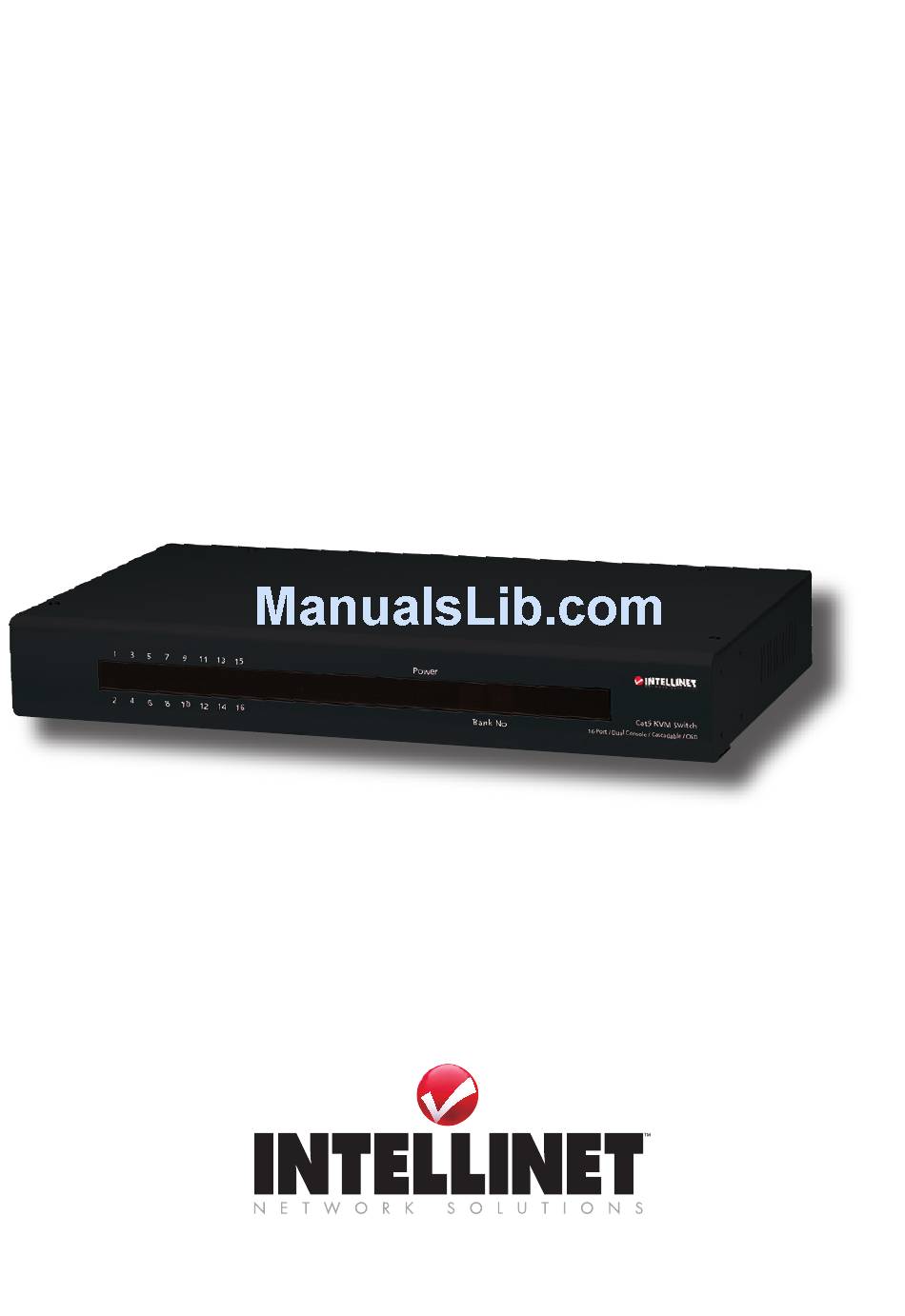

Models 503907
& 503914

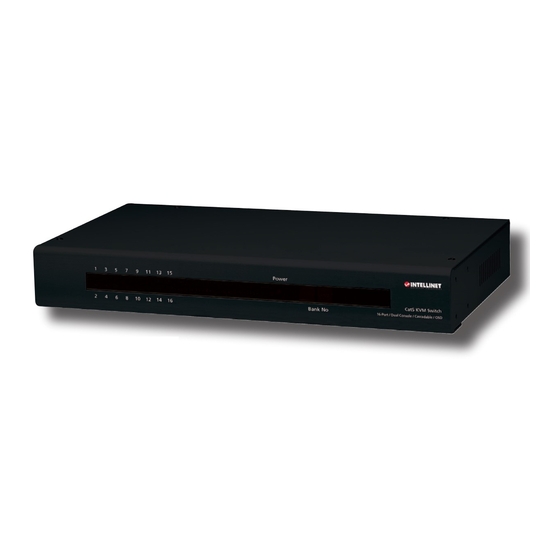

Shown: Model 503914 16-Port
INT-503907/503914-UM-0808-01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 503907 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Intellinet 503907

Summary of Contents for Intellinet 503907

  • Page 1 Models 503907 & 503914 Shown: Model 503914 16-Port INT-503907/503914-UM-0808-01...
  • Page 2 Thank you for purchasing this INTELLINET NETWORK SOLUTIONS Cat5 KVM Switch, Model 503907 (8-port) or Model 503914 (16-port). Designed for computer/server management, this rackmount device provides dual-console access for up to 64 (8-port) or 128 (16-port) computers using cost-effective Cat5e/6 cabling.
  • Page 3 64 (8-port) or 128 (16-port) computers connected. 2. Use the enclosed daisy-chain cable (HD15 male to female) to connect the female Daisy Chain Out port of the master (first) switch to the male Daisy Chain In port of the second switch. Connect the power adapter cord to the second switch to power it on.

  • Page 4: Operation

    PS/2 or USB Dongle Operation There are two ways to select a specific computer (on a specific switch, if you have daisy-chained switches): using hotkey sequences (see the Quick Reference Sheet on Page 9) or the OSD Main menu (below).
  • Page 5 2 seconds; otherwise, the hotkey sequence will not be validated. OSD (On-Screen Display) Menus With the Cat5 KVM Switch(es) installed and powered on for the first time, an OSD login prompt will display. Since by default the password protection is disabled, you can just press Enter to bypass the prompt and access all the control features as ADMIN.
  • Page 6 Status Menu: This screen presents the unit- specific bank number, firmware version, KVM switch model and the maximum number of ports. In a daisy-chained application, it lists details of all banks.

  • Page 7: Port Switching

    ScrLk + ScrLk + 0 + 2 + 1 + 6 switches to Bank 2, Port 16. To switch ports using the OSD, go to the Main menu and use the Up/Down arrow keys and/or PgUp/PgDn keys to find and highlight the computer you want to switch to, then press Enter.

  • Page 8: Firmware Upgrade

    For the Cat5 KVM Switch itself, use a USB cable (type A or B) to connect a host computer to the Daisy Chain In port on the back panel of the switch. For the dongle, use the Auto Upgrade feature available on the Dongle Status submenu (see above).
  • Page 10 - Via on-screen display (OSD) • Cascading function: - Cascade up to 8 KVM switches via special daisy chain port - Compatible models: 503914 (16-port), 503907 (8-port) • Video resolution: maximum 1600 x 1200 • Video bandwidth: maximum 165 MHz •...
  • Page 11 - Via on-screen display (OSD) • Cascading function: - Cascade up to 8 KVM switches via special daisy chain port - Compatible models: 503914 (16-port), 503907 (8-port) • Video resolution: maximum 1600 x 1200 • Video bandwidth: maximum 165 MHz •...
  • Page 12 INTellINeT NeTWoRK solUTIoNs offers a complete line ™ of active and passive networking products. Ask your local computer dealer for more information or visit www.intellinet-network.com Copyright © INTELLINET NETWORK SOLUTIONS All products mentioned are trademarks or registered trademarks of their respective owners.

This manual is also suitable for:

503914
