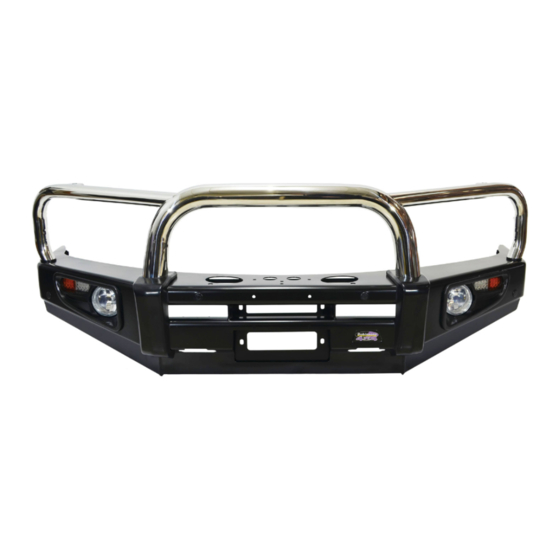

Bullbar Installation Guide
Part Number: BU45-3539, BU45-3701, BU45-3700
Fits:
This Bullbar will take approximately 3 hours to install
Tools required are
•
Spanners and socket set.
•
Screwdrivers
•
Pliers and side cutters
Dobinsons BULLBARS should be installed by a qualified installer and it is
the installer responsibility to ensure correct fitment.
Fully read and understand the instructions before beginning the installation
Dobinsons Springs and Suspension
Nissan Navara D23 NP300
www.dobinsonsprings.com
Advertisement
Related Manuals for Dobinsons BU45-3539
Summary of Contents for Dobinsons BU45-3539
- Page 1 • Screwdrivers • Pliers and side cutters Dobinsons BULLBARS should be installed by a qualified installer and it is the installer responsibility to ensure correct fitment. Fully read and understand the instructions before beginning the installation Dobinsons Springs and Suspension...
-
Page 2: Parts List
12. Lower Plate Bracket, 1 pcs 13. Rubber Headlight Infills, 1 pair 14. 3 x Under Protection Plate, 1 set 15. Bolt M6 x 1 x 15, 21 pcs 16. M6 Clip Nut, 21 pcs Dobinsons Springs and Suspension www.dobinsonsprings.com... - Page 3 7. Carefully remove the bumper from the the vehicle. vehicle, and remove the bumper re- enforcement bar. Remove the recovery points and put aside for later fitment. Dobinsons Springs and Suspension www.dobinsonsprings.com...
- Page 4 Please take a few clear photos 14. Re-install the factory recovery point to the left hand side of the vehicle under the man bullbar bracket and secure with bolts. Please take a few clear photos Dobinsons Springs and Suspension www.dobinsonsprings.com...
- Page 5 17. If not installing a winch skip to step 26. 26. Wire up the lights. Using a multimeter or test 18. See the Installation section of your Dobinsons light first locate the earth wire, parker positive 4x4 Winch manual for specific detailed fitting and indicator positive wires from the wiring instructions.
- Page 6 For this reason bracket mounting plate and bullbar mounting Dobinsons bullbars utilise a Halogen bulb. plate. Fix with 8mm bolts and nyloc nuts to Halogen bulbs generate a considerable keep the bullbar in its position. This may be...
