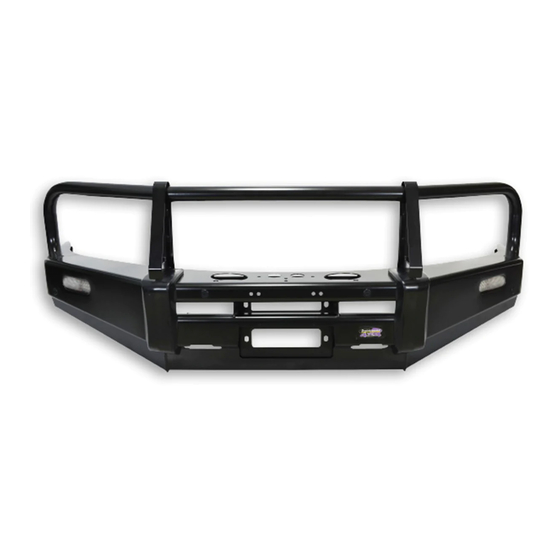

Bullbar Installation Guide
ENSURE PAGE SCALING IS TURNED
OFF WHEN PRINTING. CHECK TEMPLATE SCALE LINE FIRST
Part Number: BU59-3545 & BU59-3714 & BU59-3716
Fits:
This Bullbar will take approximately 4 hours to install
Tools required are
•
Spanners and socket set.
•
Pneumatic hacksaw.
Screwdrivers
•
•
Pliers and side cutters
Dobinsons BULLBARS should be installed by a qualified installer and it is
the installer responsibility to ensure correct fitment.
Fully read and understand the instructions before beginning the installation
Dobinsons Springs and Suspension
Toyota Landcruiser 200 Series Mid-2015 on
www.dobinsonsprings.com
Advertisement
Related Manuals for Dobinsons BU59-3545
Summary of Contents for Dobinsons BU59-3545
- Page 1 Screwdrivers • • Pliers and side cutters Dobinsons BULLBARS should be installed by a qualified installer and it is the installer responsibility to ensure correct fitment. Fully read and understand the instructions before beginning the installation Dobinsons Springs and Suspension...
- Page 2 4. Remove all the fasters along the wheel arch edge of the bumper and the bottom of the bumper that attach the bumper to the vehicle. Reach in behind the bumper and disconnect the fog lights. Dobinsons Springs and Suspension www.dobinsonsprings.com...
- Page 3 Cut out the template. 12. Tape the outer edges of the bumper to prevent scratching and to allow a suitable Dobinsons Springs and Suspension www.dobinsonsprings.com...
- Page 4 16. Mask a line across the bumper from the bottom cut edge on each side (at the top of the fog light recess) across the centre of the bumper across the top of the registration number plate screw clips. Dobinsons Springs and Suspension www.dobinsonsprings.com...
- Page 5 20. If not installing a winch skip to step 30. box mounting options. If mounting to the top 21. See the Installation section of your Dobinsons of the bullbar using the supplied bracket, 4x4 Winch manual for specific detailed fitting check clearance of control box to grill and also instructions.
- Page 6 If the vehicle is not fitted with OEM fog lights the wiring loom supplied can be used. Follow the wiring diagram at the end of this manual. Dobinsons Springs and Suspension www.dobinsonsprings.com...
- Page 7 It is also important to note that due to their nature fog lights are required to provide a yellow light to allow clear fog vision. For this reason Dobinsons bullbars utilise a Halogen bulb. Dobinsons Springs and Suspension www.dobinsonsprings.com...
- Page 8 2 0 0 S E R I E S T O Y O T A L A N D C R U I S E R MI D 2 0 1 5 O N . C H E C K S C A L E L I N E B E F O R E C U T T I N G ! ! ! ! ! ! ! 1 0 0 MM S C A L E L I N E A L I G N ME N T MA R K S C U T...
- Page 9 A L I G N ME N T MA R K S C U T 2 0 0 S E R I E S T O Y O T A L A N D C R U I S E R MI D 2 0 1 5 O N . C H E C K S C A L E L I N E B E F O R E C U T T I N G ! ! ! ! ! ! ! 1 0 0 MM S C A L E L I N E...
- Page 11 (Customers with Stainless Loop Deluxe Models Only) The top loops on your Dobinsons Stainless Loop Deluxe steel bullbar are manufactured from high quality 304 grade stainless steel. Once formed and welded it is highly polished to provide a high gloss finish. Whilst the material is a high quality stainless steel, like any other exterior polished surface, care and some maintenance is required to ensure the surface finish quality.
- Page 12 C). After polishing use a soft, clean, dry rag to clean the surface and inspect in the light for an even finish. D). Once complete clean thoroughly again with a sponge and warm water. Dobinsons Spring and Suspension www.dobinsonsprings.com...
