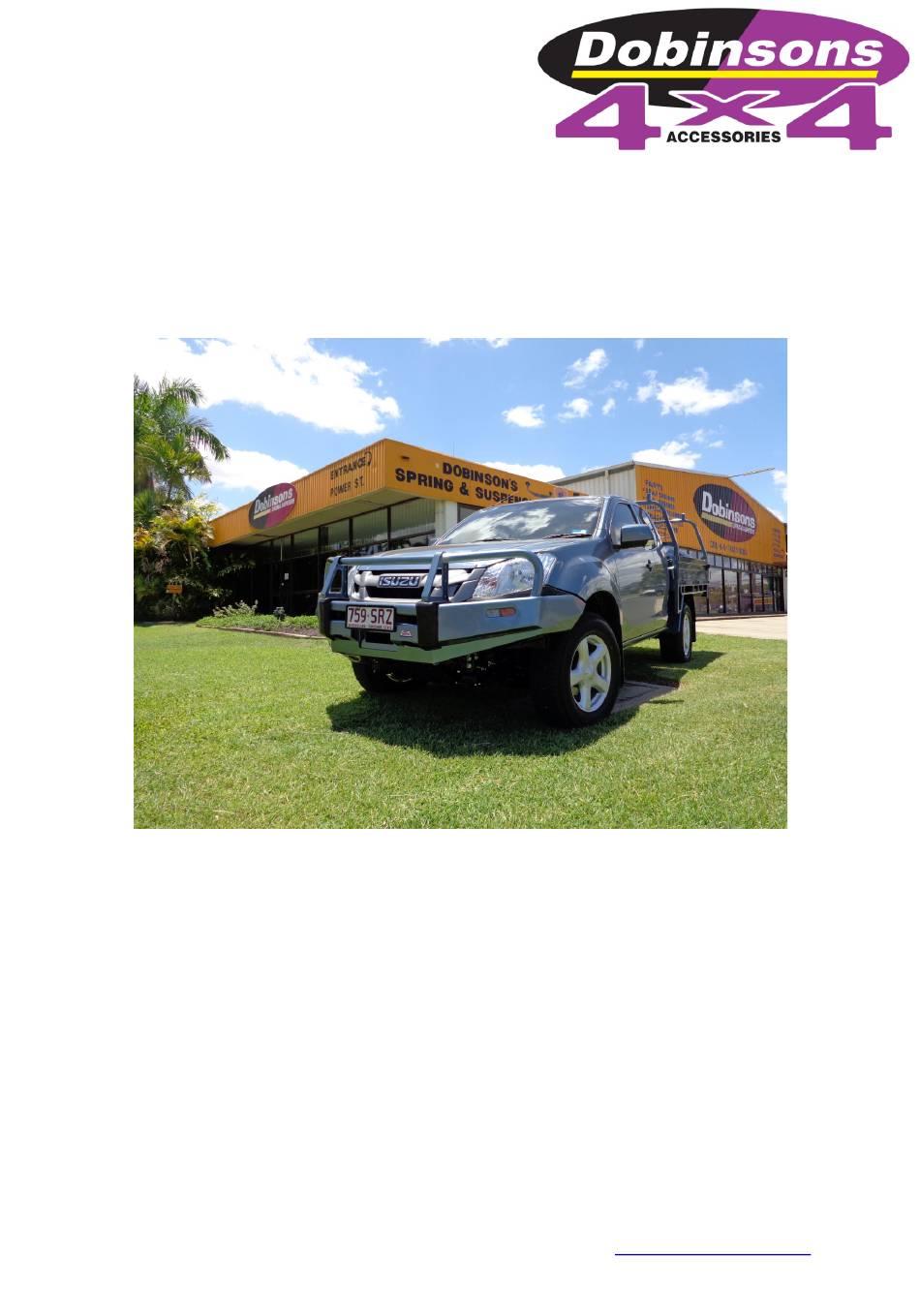

Bullbar Installation Guide
ENSURE PAGE SCALING IS TURNED TO
NONE OR OFF WHEN PRINTING
Part Number: BU21-3529, BU21-3685, BU21-3681
Fits:
This Bullbar will take approximately 3 hours to install
Tools required are
•
Spanners and socket set.
•
Pneumatic hacksaw (For 4x2 lo-rider models)
•
Screwdrivers
•
Pliers and side cutters
•
Torx-bit Screwdriver Set
Dobinsons BULLBARS should be installed by a qualified installer and it is
the installer responsibility to ensure correct fitment.
Fully read and understand the instructions before beginning the installation
Dobinsons Springs and Suspension
Isuzu D-Max 2012 on
www.dobinsonsprings.com
Advertisement
Related Manuals for Dobinsons Isuzu D-Max 2012 on
Summary of Contents for Dobinsons Isuzu D-Max 2012 on
- Page 1 Pliers and side cutters • Torx-bit Screwdriver Set Dobinsons BULLBARS should be installed by a qualified installer and it is the installer responsibility to ensure correct fitment. Fully read and understand the instructions before beginning the installation Dobinsons Springs and Suspension...
- Page 2 Dobinsons Springs and Suspension www.dobinsonsprings.com...
- Page 3 Dobinsons Springs and Suspension www.dobinsonsprings.com...
- Page 4 3 and the under protection cross beam (item 3). Ensure that the U-bolts do not pass over any wiring. Note: Ensure clearance to the radiator supports and these brackets, grind a small amount away if necessary. Dobinsons Springs and Suspension www.dobinsonsprings.com...
- Page 5 19. If not installing a winch skip to step 27. 20. See the Installation section of your Dobinsons For 4x4 and 4x2 high rider skip to step 17 4x4 Winch manual for specific detailed fitting instructions.
- Page 6 Shown Below on 4x2 Lowrider (note the bar light wiring plugs and join. If the vehicle is not wings sit on the outside of panel) fitted with OEM fog lights the wiring loom Dobinsons Springs and Suspension www.dobinsonsprings.com...
- Page 7 For this reason Dobinsons bullbars utilise a Halogen bulb. Halogen bulbs generate a considerable amount of heat to achieve the yellow colour and this causes the air inside the fog light lens to expand and contract.
- Page 8 Dobinsons Springs and Suspension www.dobinsonsprings.com...
- Page 12 (Customers with Stainless Loop Deluxe Models Only) The top loops on your Dobinsons Stainless Loop Deluxe steel bullbar are manufactured from high quality 304 grade stainless steel. Once formed and welded it is highly polished to provide a high gloss finish. Whilst the material is a high quality stainless steel, like any other exterior polished surface, care and some maintenance is required to ensure the surface finish quality.
- Page 13 C). After polishing use a soft, clean, dry rag to clean the surface and inspect in the light for an even finish. D). Once complete clean thoroughly again with a sponge and warm water. Dobinsons Spring and Suspension www.dobinsonsprings.com...
