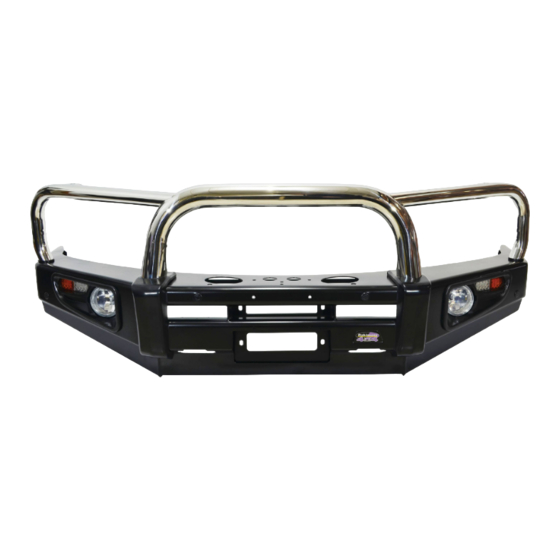

Bullbar Installation Guide
Part Number: BU59-3661& BU59-3511
Fits:
Tools required are
•
Spanners and socket set.
•
Screwdrivers
•
Pliers and side cutters
Dobinsons BULLBARS should be installed by a qualified installer and it is
Fully read and understand the instructions before beginning the installation
Dobinsons Springs and Suspension
Toyota Prado 120 Series
This Bullbar will take approximately 3 hours to install
the installer responsibility to ensure correct fitment.
www.dobinsonsprings.com
Advertisement
Related Manuals for Dobinsons BU59-3661
Summary of Contents for Dobinsons BU59-3661
- Page 1 • Screwdrivers • Pliers and side cutters Dobinsons BULLBARS should be installed by a qualified installer and it is the installer responsibility to ensure correct fitment. Fully read and understand the instructions before beginning the installation Dobinsons Springs and Suspension...
- Page 2 Dobinsons Springs and Suspension www.dobinsonsprings.com...
- Page 3 Dobinsons Springs and Suspension www.dobinsonsprings.com...
- Page 4 1 and 2 to take up the gap as per the picture below. Ensure though that when tightening the bracket tights correctly and the washers do not sit behind between the chassis and mounts. Dobinsons Springs and Suspension www.dobinsonsprings.com...
- Page 5 10. If not installing a winch skip to step 19. of the bullbar using the supplied bracket, 11. See the Installation section of your Dobinsons check clearance of control box to grill and also 4x4 Winch manual for specific detailed fitting check where the wires will route as if the instructions.
- Page 6 10- plate. Fix with 8mm bolts and nyloc nuts to 20mm. keep the bullbar in its position. This is easiest done by drilling from the inside. Dobinsons Springs and Suspension www.dobinsonsprings.com...
- Page 7 For this reason Dobinsons bullbars utilise a Halogen bulb. Halogen bulbs generate a considerable amount of heat to achieve the yellow colour and this causes the air inside the fog light lens to expand and contract.
- Page 9 (Customers with Stainless Loop Deluxe Models Only) The top loops on your Dobinsons Stainless Loop Deluxe steel bullbar are manufactured from high quality 304 grade stainless steel. Once formed and welded it is highly polished to provide a high gloss finish. Whilst the material is a high quality stainless steel, like any other exterior polished surface, care and some maintenance is required to ensure the surface finish quality.
- Page 10 C). After polishing use a soft, clean, dry rag to clean the surface and inspect in the light for an even finish. D). Once complete clean thoroughly again with a sponge and warm water. Dobinsons Spring and Suspension www.dobinsonsprings.com...
