Connecting relay outputs

To operate locks or alarm systems, the AMC2 has eight relay outputs. The outputs will be
connected to the 3-pin pluggable screw connectors S5, S6, S10, S11, S17, S18, S22 and S23.
For more information on these connections, refer to Connecting diagrams, page 45 .

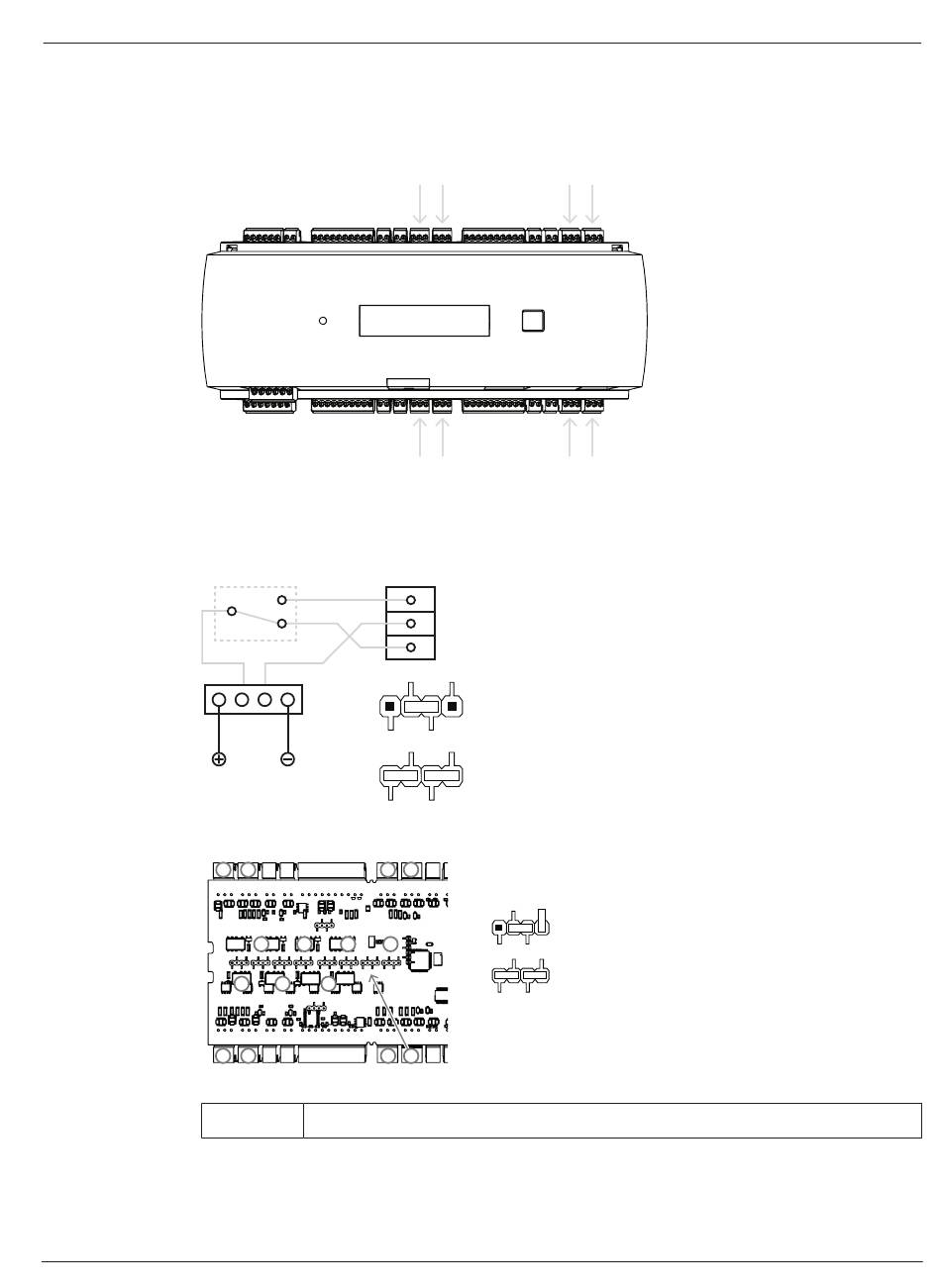

Figure 4.18: Location of the relay output connectors
By default, the relay outputs are connected as floating contacts (E1). However, it is possible
to connect the internal voltage 12/24 V of the AMC2 to each relay output (E2) to control
external consumers.
Figure 4.19: Relay mode settings
8
4
Figure 4.20: Location of relay output jumpers (bottom side)
Bosch Security Systems B.V.
E 1:
E 2:
7 6 5
8 6 5
7
4 3 2
3 2 1
E1 Delivery status
NO
C
NC
E 1:
E 2:
