Installing

4.1

Mounting the device on a mounting rail

The controller can be attached on a standard 35 mm (1.377 in.) mounting rail using a snap-in
mechanism. Attach the controller into the upper edge of the mounting rail [1], then push
down the device and snap it onto the rail by pushing it towards the back [2].
1

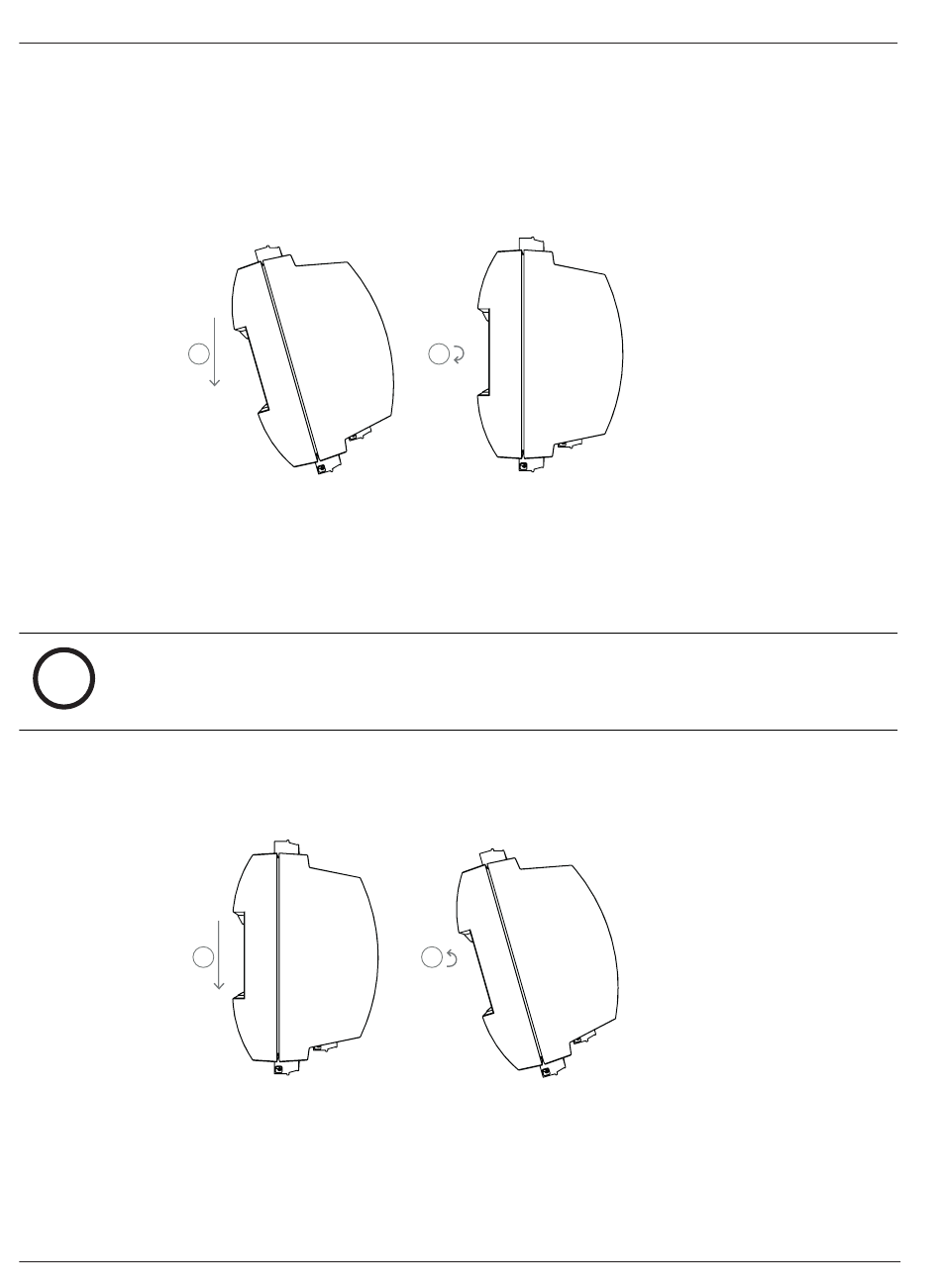

Figure 4.1: Mounting the controller on a mounting rail
For information on how to install the device in an enclosure, refer to the separate instruction
manual of the enclosure AEC-AMC2-UL01 or AEC-AMC2-UL02. After installing the device, keep
the door of the enclosure closed.
4.2

Unmounting the device from a mounting rail

Notice!
i
To remove the controller from a mounting rail, first remove all pluggable connectors.
Push down the controller until the lower edge snaps out of the mounting rail [1]. Pull the
lower end of the controller from the mounting rail [2].
Figure 4.2: Unmounting the controller from a mounting rail
