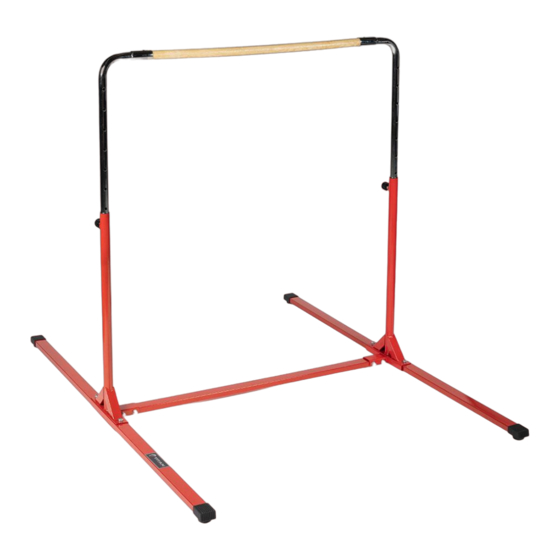

- Page 1 JR. GYMNASTICS KIP BAR KIPBAR 409001 Operator’s Manual Read the Operator’s Manual entirely. When you see this symbol, the subsequent instructions and warnings are serious follow without exception. Your life and the lives of others depend on it!
- Page 2 PARTS DIAGRAM / EXPLODED VIEW...
- Page 3 ASSEMBLY INSTRUCTIONS 1. Attach a 25x50 END COVER (6) to each end of both BASE FRAMES (A). 2. Secure both BASE FRAMES (A) to the CROSS TUBE (D) with M10x65 BOLTS (1), M10 WASHERS (8), and M10 NYLON NUTS (7). 3.
- Page 4 ASSEMBLY INSTRUCTIONS 5. Loosely screw an M16 POP PIN (4) into each of the UPRIGHTS (B & C). 6. Insert the WOOD HANDLE (F) into the tops of each ADJUSTABLE TUBE (E), and secure in place with M5x15 WOOD SCREWS (3). 7.
- Page 5 ACKNOWLEDGEMENT OF RISK AND RELEASE OF LIABILITY The use of any equipment, including this one, involves the potential risk of injury. Apart from any warranty claim that might be presented for a claimed defect in material or workmanship of the product, you accept and assume full responsibility for any and all injuries, damages (both economic and non-economic), and losses of any type, which may occur, and you fully and forever release and discharge Titan, its insurers, employees, officers, directors, associates, and agents from any and all claims, demands, damages,...
- Page 6 NEED HELP? CONTACT US FIRST. 1-888-410-1503 info@titan.fitness www.titan.fitness © 2022 Titan Brands...
