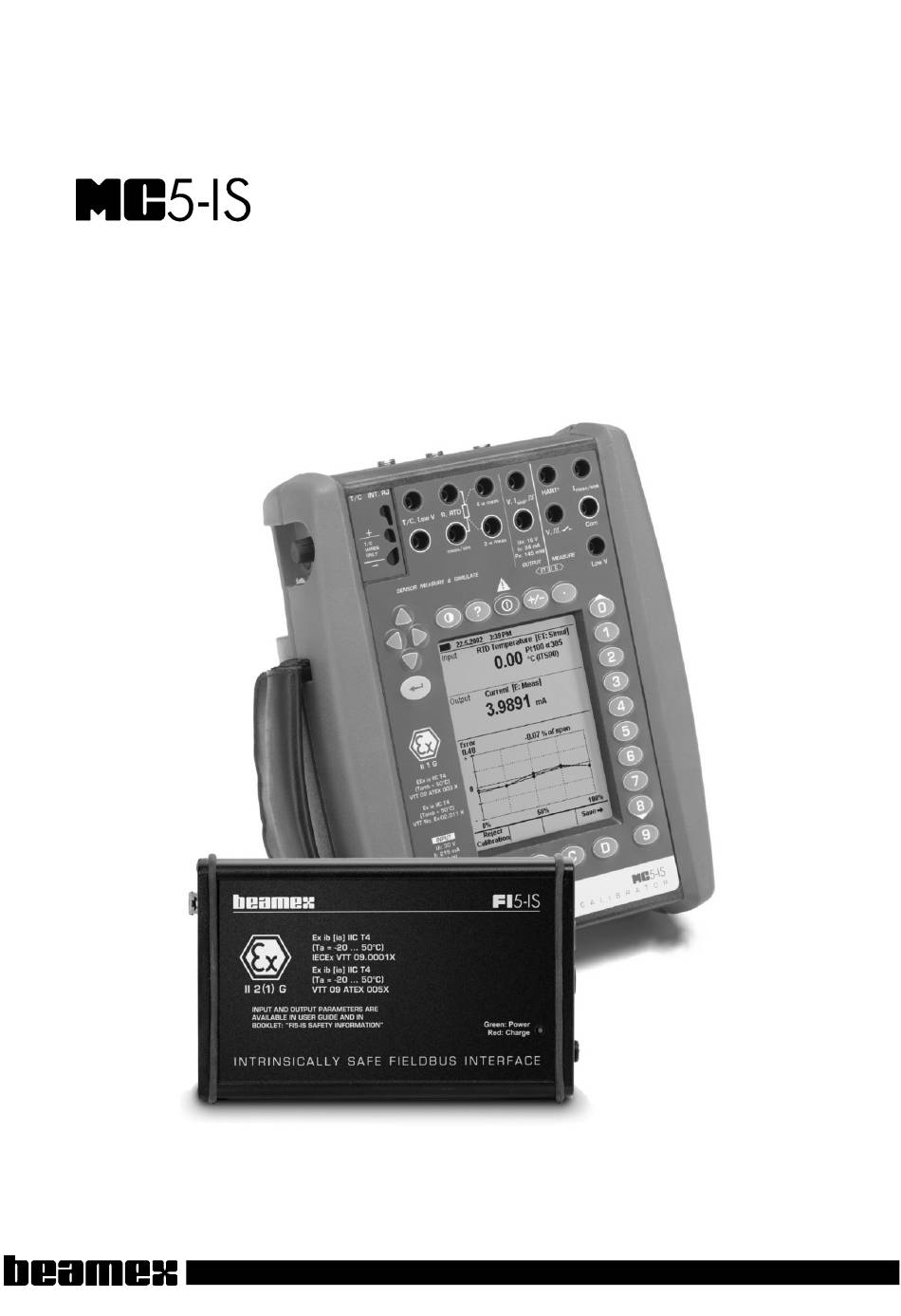

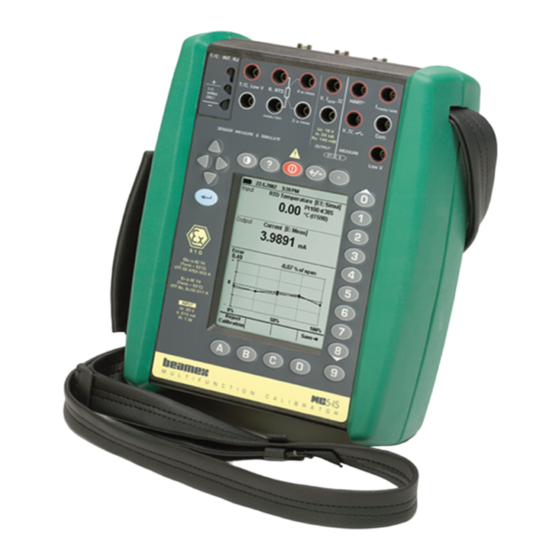

  • Page 1 User Guide Fieldbus Option for PROFIBUS PA...
  • Page 2 We reserve rights to make modifications to this manual without any further notice. For more detailed technical data about MC5-IS Intrinsically Safe Cali- brator, please refer to MC5-IS User Guide or contact the manufactur- © Copyright 2009 BEAMEX OY AB...
  • Page 3 Trademarks ® QCAL is a registered trademark owned by Beamex Oy Ab. ® PROFIBUS is a registered trademark of PROFIBUS International. FOUNDATION™ Fieldbus is a registered trademark of the Fieldbus Foundation. ® HART is a registered trademark of the HART Communication Foundation.

  • Page 4: Table Of Contents

    Device Descriptions ..................14   Viewing Device Descriptions in MC5-IS ............. 14   Device Description Sender ................. 15   Fieldbus Instruments and Beamex's Calibration Database Software ....16   Connecting to a PROFIBUS PA Instrument ..........17   Connections ..................... 18  ...
  • Page 5 Fieldbus Communication Settings ............33   Appendix 1, Codes in Profibus PA Profile Version 3.0 ......34   Appendix 2, Codes in Profibus PA Profile Version 2.0 ......39   Notes ......................41   General...

  • Page 6: General

    FI5-IS Intrinsically Safe Fieldbus Interface allows you to ca- librate Intrinsically Safe PROFIBUS PA fieldbus instruments. All you need is a fieldbus compatible MC5-IS and a FI5-IS suited for your fieldbus type. The MC5-IS/FI5-IS for PROFIBUS PA features listed below are presented in more detail further on in this manual.

  • Page 7: What Is Fieldbus

    User Guide – MC5-IS Fieldbus Option for PROFIBUS PA What is Fieldbus Fieldbus is an industrial digital communications network specif- ically designed for process automation use. It is meant to re- place the existing standard 4 … 20 mA analog signal.

  • Page 8: Batteries

    User Guide – MC5-IS Fieldbus Option for PROFIBUS PA Batteries The rechargeable battery inside FI5-IS provides supply power to the communication between MC5-IS and FI5-IS. With fresh, fully charged batteries, FI5-IS may be used for ap- prox. 10 hours without recharging. To save batteries, discon- nect the fieldbus cables when FI5-IS is not used.

  • Page 9: Disposal Of Waste Electrical And Electronic Equipment

    User Guide – MC5-IS Fieldbus Option for PROFIBUS PA Disposal of Waste Electrical and Electronic Equipment Beamex is an environmentally conscious company developing products with a view to ensure that they are easy to recycle and do not introduce hazardous materials into the environ- ment.

  • Page 10: Safety

    User Guide – MC5-IS Fieldbus Option for PROFIBUS PA Safety Symbols Used The following symbols concerning electrical safety are used in FI5-IS. Caution! See manual for further information Ex Information and Approvals Please read the separate leaflet shipped with FI5-IS entitled (in English) Safety Information for Beamex MC5-IS Intrinsically Safe Multifunction Calibrator.
  • Page 11 User Guide – MC5-IS Fieldbus Option for PROFIBUS PA Special Conditions for Safe Use Opening FI5-IS voids safety and warranty, if it is valid. The permissible ambient temperature range is -20 °C  T  +50 °C.. The battery shall not be charged on a hazardous location.
  • Page 12 User Guide – MC5-IS Fieldbus Option for PROFIBUS PA Input Parameters Fieldbus terminals Maximum values, 24 V DC 250 mA 1.2 W 0 0 Non-FISCO Maximum values with 17.5 V DC 250 mA 1.2 W 0 0 FISCO, IEC 60079-27...

  • Page 13: Notes And Warnings

    User Guide – MC5-IS Fieldbus Option for PROFIBUS PA Notes and Warnings This manual describes the use of MC5-IS and FI5-IS for PRO- FIBUS PA. For additional fieldbus information, please refer to your fieldbus control system manuals as well as the manuals for instruments to be calibrated.
  • Page 14 The consequences may be serious damage, injuries or death! Using MC5-IS and FI5-IS to change the parameters of an instrument may result in discrepancies: A fieldbus host control system may mirror all instrument parameters in its permanent database.

  • Page 15: Service

    User Guide – MC5-IS Fieldbus Option for PROFIBUS PA Service FI5-IS may only be serviced by Beamex or a Beamex author- ized service. Contact: BEAMEX OY AB Ristisuonraitti 10 FIN-68600 Pietarsaari FINLAND E-mail: service@beamex.com Internet: http://www.beamex.com Opening of the casing of FI5-IS is not allowed due to ATEX safety reasons.

  • Page 16: Terminology

    User Guide – MC5-IS Fieldbus Option for PROFIBUS PA Terminology There are some inconsistencies between the terminologies used when calibrating/adjusting/trimming traditional analog in- struments and new fieldbus instruments. For both instrument types, the procedure has three phases: 1. Comparing the instrument against a more accurate de- vice (calibrator).

  • Page 17: Mc5-Is, Fi5-Is And Profibus Pa

    User Guide – MC5-IS Fieldbus Option for PROFIBUS PA MC5-IS, FI5-IS and PROFIBUS PA Beamex's MC5-IS and FI5-IS together are the master of a PROFIBUS PA fieldbus segment. Since a PROFIBUS PA segment supports only one master per segment, MC5-IS and FI5-IS cannot be connected to a fieldbus segment that already has a master device.
  • Page 18 User Guide – MC5-IS Fieldbus Option for PROFIBUS PA 2. Verifying Calibration, As Found Connect the instrument to MC5-IS/FI5-IS using one of the me- thod presented in chapter Connecting to a PROFIBUS PA Instrument, starting from page 17. Perform the Verifying Cali- bration using MC5-IS/FI5-IS for PROFIBUS PA as presented in chapters further on.

  • Page 19: Device Descriptions

    For contact info, see the first pages of this manual. The following chapters describe how available device descrip- tions can be viewed in MC5-IS and also how to add new de- vice descriptions to MC5-IS. Viewing Device Descriptions in MC5-IS To view device descrip- 3 0 .

  • Page 20: Device Description Sender

    If the highlight is as shown in the picture above, both FOUNDATION Fieldbus and PROFIBUS PA device de- scriptions are sent to MC5-IS. If you, e.g. have PROFIBUS PA instruments only, highlight corresponding row and send only PROFIBUS PA instrument device descriptions to MC5-IS.

  • Page 21: Fieldbus Instruments And Beamex's Calibration Database Software

    User Guide – MC5-IS Fieldbus Option for PROFIBUS PA Fieldbus Instruments and Beamex's Calibration Database Software CMX Calibration Management Software V2, revision 2.1 and later support fieldbus instruments. Older calibration software (QM6, QD3 etc.) do not support fieldbus instruments. General...

  • Page 22: Connecting To A Profibus Pa Instrument

    User Guide – MC5-IS Fieldbus Option for PROFIBUS PA Connecting to a PROFIBUS PA Instrument In order for MC5-IS/FI5-IS to be able to communicate with a PROFIBUS PA instrument, the instrument may not be con- trolled by any other PROFIBUS master than MC5-IS/FI5-IS.

  • Page 23: Connections

    User Guide – MC5-IS Fieldbus Option for PROFIBUS PA Connections The following picture presents the connections: MC5-IS receives fieldbus data via FI5-IS Fieldbus Interface. Depending on the instrument's input signal, it is either gener- ated/simulated or measured with MC5-IS (not included in the picture).

  • Page 24: Fieldbus And Mc5-Is' Basic Mode

    User Guide – MC5-IS Fieldbus Option for PROFIBUS PA Fieldbus and MC5-IS' Basic Mode Connecting to a PROFIBUS PA Instrument To initiate communica- 3 0 . 0 3 . 2 0 0 7 1 2 : 3 5 tion with a fieldbus in-...
  • Page 25 User Guide – MC5-IS Fieldbus Option for PROFIBUS PA Refer to chapter Con- 3 0 . 0 3 . 2 0 0 7 1 2 : 4 0 necting to a PROFIBUS P R O F I B U S P A PA Instrument on P A - 1 .
  • Page 26 User Guide – MC5-IS Fieldbus Option for PROFIBUS PA After required instrument 3 0 . 0 3 . 2 0 0 7 1 3 : 1 7 data is read, MC5-IS re- R T D - t e m p e r a t u r e D i s c o n n e c t E T : R T D T e m p .

  • Page 27: Fieldbus Window Setup Menu

    User Guide – MC5-IS Fieldbus Option for PROFIBUS PA Fieldbus Window Setup Menu A window reserved for fieldbus communication has its own menu. All menu items are presented in the following subchap- ters. Disconnect Device This option disconnects the fieldbus instrument from MC5- IS/FI5-IS.

  • Page 28: Transducer Block Information

    The most likely one in need of editing is the unit. If MC5- IS supports the unit, it is shown as in the example picture above. If MC5-IS does not support the unit, a numeric value is shown instead of the unit.

  • Page 29: Target Mode

    User Guide – MC5-IS Fieldbus Option for PROFIBUS PA Target Mode Target Mode is an important Transducer Block parameter while calibrating instruments. That's why it is directly available via MC5-IS' menu. Use this to set the instrument in either OOS - Out Of Service or Auto - Automatic mode.

  • Page 30: Add A Fieldbus Device To Database

    M E N U ment's memory. Note. MC5-IS supports Tags and Device IDs that have max. 25 characters. Longer Tags and Device IDs are truncated. The following table presents which Physical Block parameter in a PROFIBUS PA instrument gets linked to which field in MC5-...
  • Page 31 When adding a fieldbus instrument to MC5-IS, the mea- surement unit is fetched from the fieldbus instrument. If MC5-IS does not support the unit, you need to change it to a unit supported by MC5-IS. Verifying Calibration and Trimming is not possible when a unit not supported by MC5-IS is in use in the fieldbus instrument.

  • Page 32: Unit

    Quantity is set to "None". Verifying Calibration and Trimming is not possible when a unit not supported by MC5-IS is in use in the fieldbus in- strument. See Appendix 1, Codes in Profibus PA Profile Version 3.0 on page 34 or Appendix 2, Codes in Profi-...

  • Page 33: Performing A Verifying Calibration

    B a c k R e s t a r t E d i t S e l e c t Note. The instrument data in MC5-IS and in the instrument to be connected need to match. Performing a Verifying Calibration...

  • Page 34: Doing The Verifying Calibration

    When adding a fieldbus instrument to MC5-IS, the mea- surement unit is fetched from the fieldbus instrument. If MC5-IS does not support the unit, you need to change it to a unit supported by MC5-IS. Verifying Calibration and Trimming is not possible when a unit not supported by MC5-IS is in use in the fieldbus instrument.

  • Page 35: Calibrating (Trimming, Adjusting) A Fieldbus Instrument

    User Guide – MC5-IS Fieldbus Option for PROFIBUS PA Calibrating (Trimming, Adjusting) a Fieldbus Instrument To start Calibrating (Trimming, Adjusting) a Fieldbus Instru- ment in Calibration Mode, press Menu Start Fieldbus Adjustment while viewing the calibration windows. The opened 3 0 . 0 3 . 2 0 0 7...
  • Page 36 User Guide – MC5-IS Fieldbus Option for PROFIBUS PA 2. If some of the options in the Fieldbus Instrument Ad- justment menu's items are greyed (refer to the picture on the previous page), the selected output for that par- ticular instrument cannot be trimmed. Change the output...
  • Page 37 User Guide – MC5-IS Fieldbus Option for PROFIBUS PA Trim Upper 100% Range 7. Then select the option from the Fieldbus Instrument Adjustment menu. Other- wise, the trimming procedure is similar to phases 5 and In this case, the corrected value is sent to Transducer Block parameter, CAL_POINT_HI (or similar, depending on the instrument at hand).
  • Page 38 User Guide – MC5-IS Fieldbus Option for PROFIBUS PA Fieldbus Communication Settings You may view/edit field- 3 0 . 0 3 . 2 0 0 7 1 2 : 5 5 bus settings in Basic R T D - t e m p e r a t u r e S e t t i n g s E T : R T D T e m p .
  • Page 39 User Guide – MC5-IS Fieldbus Option for PROFIBUS PA Appendix 1, Codes in Profibus PA Profile Version 3.0 Note. Certain instruments may not support all codes listed here. When in doubt, please consult the instrument's manual. Temperature Units Unit Code in Fieldbus...
  • Page 40 User Guide – MC5-IS Fieldbus Option for PROFIBUS PA Pressure units, continued Unit Code in Fieldbus Displayed Unit in Displayed Unit in Instruments Fieldbus Instruments 1149 mmH2O 1150 mmH2O(4°C) mmH2O @ 4°C 1151 mmH2O(68°F) mmH2O @ 68°F 1152 ftH2O ftH2O 1153 ftH2O(4°C)
  • Page 41 User Guide – MC5-IS Fieldbus Option for PROFIBUS PA Linearization Types, continued Linearization Type, Code Description RTD Pt200 a=0.003850 (IEC 751, DIN 43760, JIS C1604-97, BS1904) RTD Pt500 a=0.003850 (IEC 751, DIN 43760, JIS C1604-97, BS1904) RTD Pt1000 a=0.003850 (IEC 751, DIN 43760, JIS C1604-97, BS1904) RTD Pt10 a=0.003916 (JIS C1604-81)
  • Page 42 User Guide – MC5-IS Fieldbus Option for PROFIBUS PA Linearization Types, continued Linearization Type, Code Description TC Type S, Pt10Rh-Pt (IEC 584, NIST MN 175, DIN 43710,BS 4937, ANSI MC96.1, JIS C1602, NF C42-321) TC Type T, Cu-Cu45Ni (IEC 584, NIST MN 175, DIN 43710,BS 4937, ANSI MC96.1, JIS C1602,...
  • Page 43 User Guide – MC5-IS Fieldbus Option for PROFIBUS PA Reference Junction Type (Variable RJ_TYPE) Reference Junction Type, Code Description No reference: Compensation is not used (e.g. for TC Type B). Internal: Reference junction temperature is measured by the device itself via an internal or external mounted sensor.
  • Page 44 User Guide – MC5-IS Fieldbus Option for PROFIBUS PA Appendix 2, Codes in Profibus PA Profile Version 2.0 Note. Certain instruments may not support all codes listed here. When in doubt, please consult the instrument's manual. Temperature Units Unit Code in Fieldbus...
  • Page 45 User Guide – MC5-IS Fieldbus Option for PROFIBUS PA Electrical Units Unit Code in Fieldbus Displayed Unit in Displayed Unit in Instruments Fieldbus Instruments  k kOhm Unit Used in Calibration (Variable CAL_UNIT) Calibration Unit, Code Description inH2O @ 68 °F inHg @ 0 °C...
  • Page 46 © Copyright 2009 Beamex Inc BEAMEX OY AB 2152 Northwest Parkway Ristisuonraitti 10 Suite A FIN-68600 PIETARSAARI Marietta, GA 30067 FINLAND U.S.A. Phone +358 - 10 - 5505000 Phone 800 888-9892, +358 - 10 - 5505404 +1-770-951-1927 E-mail sales@beamex.com +1-770-951-1928 service@beamex.com...
