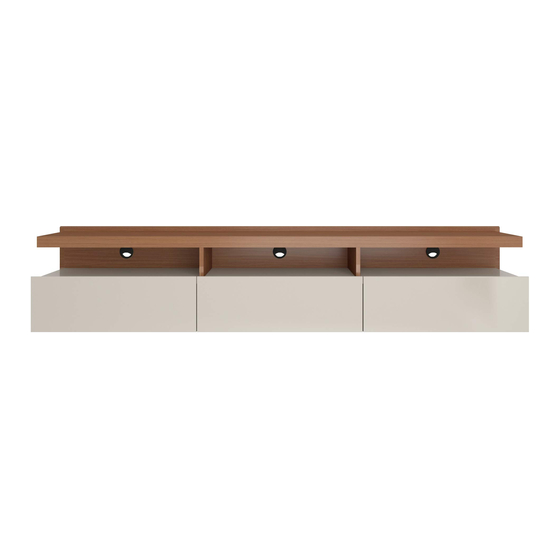

Summary of Contents for Manhattan Comfort CABRINI 220200
- Page 1 ASSEMBLY INSTRUCTIONS COD:220200 CABRINI 1.8 WALL STAND REV. 00...
- Page 2 IMPORTANT REMARKS Never climb or lean on the furniture. Use the packaging to cover the Indentify the parts by observing the You may suffer serious accidents. assembly area and separate number printed on their edges. all parts. CARE INSTRUCTIONS HANDLING Wipe clean using a damp cloth and a mild cleaner.
- Page 3 HARDWARE Identify and separate the hardware used in the assembly. There's a label on each package identifying the parts and where to use them. 0599-12x 0494-12x 1533-24x 0160-12x 3557-06x 3706-06x 6533-12x 3527-37x 0338-6x STICKER-12x 1668-54x 9070-6x 0348-1x 4157-06x 2088-08x 4505-4x 6244-04x 2661-3x WIRE CHANNEL-3x...
- Page 4 DESCRIPTION W:71.26 inches H:14.96 inches D: 17.12 inches L:1810mm A:380mm P:435 mm CÓD:220200 PART QUANTITY DESCRIPTION TOP BOARD CENTER BOARD BOTTOM BOARD UPPER DIVIDER BOTTOM DIVIDER LEFT SIDE RIGHT SIDE DRAWER FRONT DRAWER SIDE DRAWER BACK PANEL DRAWER BOTTOM BACKPLATE SIDE BATTEN 11Lb...
- Page 5 STICKER 0599 0494 1533 3527 1668 2661...
- Page 6 0160 3557 3706 3527 9070 0348 4157 Use the PVA glue before screwing.
- Page 7 1533 6533 3527 0338 1668 2661 9070 2088 6244 DRAWER SLIDE ATTACHMENT Measurement to drill the wall. 71.26 Ø5/16 INCHES 15.94 34.37 5.39 22.20 22.20 16.14 WALL / Stand Floor...
- Page 8 STICKER 4505 WIRE CHANNEL ATTENTION Pass the cables through the wire channel before screwing (P) SAFETY SCREW CLICK DETAIL...
