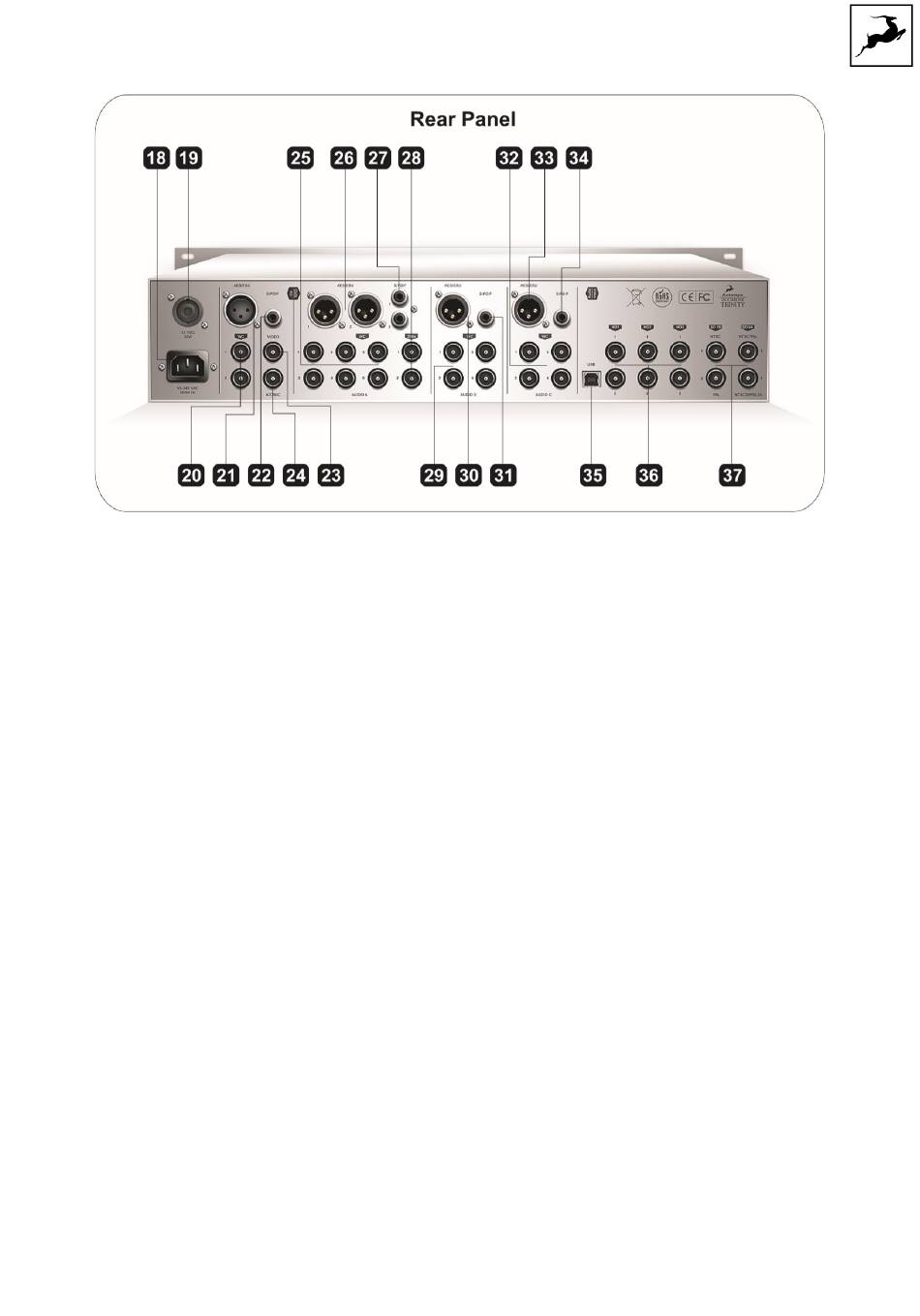

Connect Trinity to an AC or DC power source via rear panel connectors (18) or (19).
Power on from the front panel power button (1). To use the PC/Mac Control Panel
application (Windows 10/macOS 10.11-10.14), connect Trinity to your computer via USB
Type-B (35). Download and install the application
To use Trinity's internal clock, set SOURCE knob (3) to OVEN, and press to confirm. If
slaving to an external source, connect the master sync device to an input on the rear panel,
and select the corresponding position with the SOURCE knob (3). Press to confirm.
Set sample rate: Press AUDIO A button (6) to allow the sample rate to be changed on
Audio channel A. Select desired sample rate with the SAMPLE RATE knob (4) and press to
confirm.
Notes:
● When using internal OVEN, there is a warmup period while the unit is first powered
on. Pressing the INFO button just after powering on will show the oven-controlled
crystal oscillator heating up. The correct operating temperature is reached when
the OVEN light remains lit.
● When making initial connections, it is advised to do so with the studio volume
turned down. Some devices may emit an unpleasant sound until properly
configured to accept incoming clock signal.
● The Control Panel application is not supported under macOS 10.15 Catalina.
Isochrone Trinity User Manual
from here.
