INSTALLATION PRECAUTIONS

1. Before placing the device into its operating location, consider the following:
● To minimize frequency instabilities, the device should not be placed near equipment
generating strong magnetic fields, such as generators, transformers, etc.
● To prevent possible interference, observe a minimum distance of 5cm (2in)
between the cables of this device and any non-coaxial audio cables.
● It's okay to use the device outside of a rack, as long as the above conditions are
met. There is no requirement for the device to be leveled horizontally.

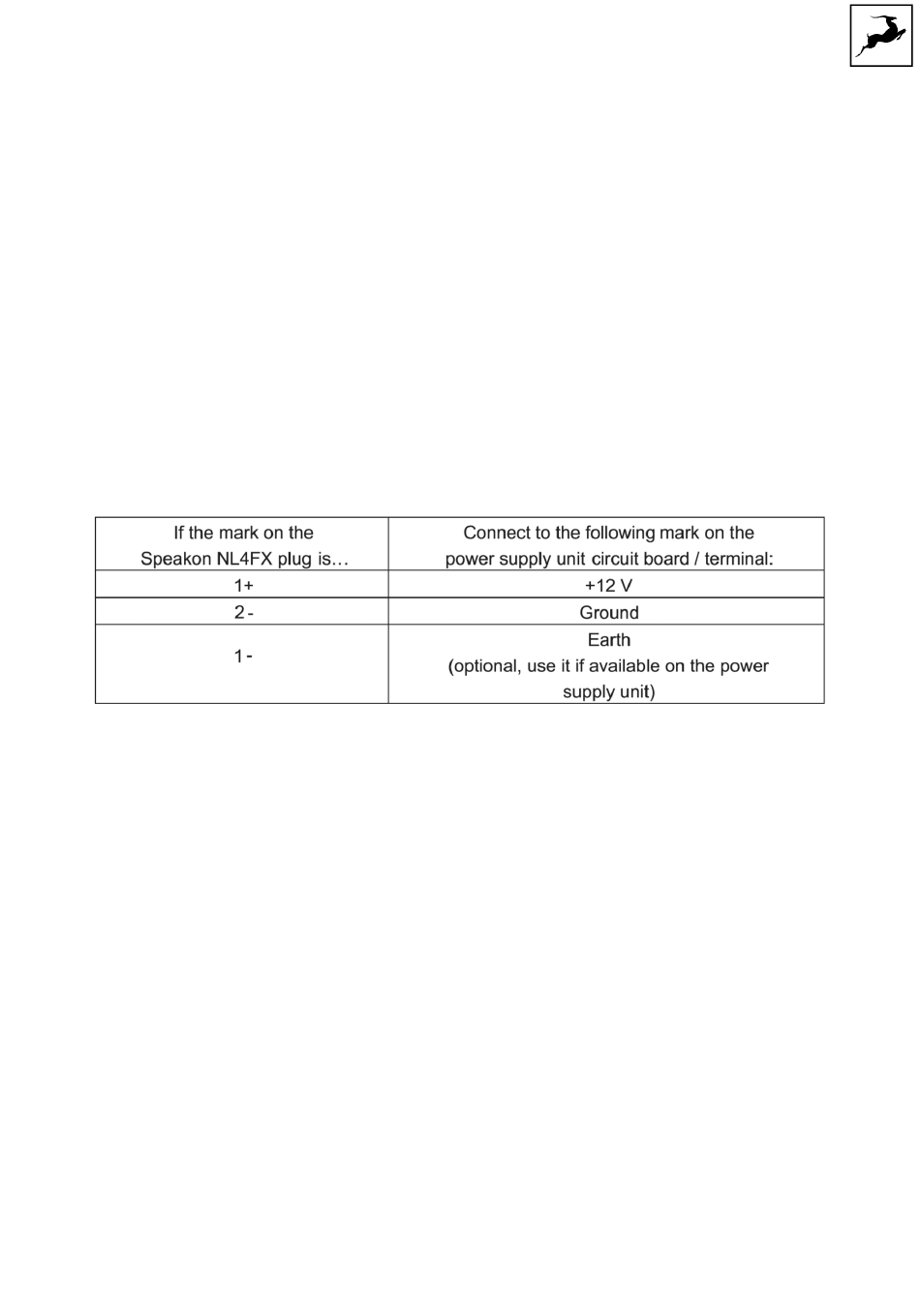

2. If the DC power connection (19) is to be used, make sure the power cable is wired
properly, as reversed polarity may damage the device. Refer to the table below for
information on how to make the connection.
3. Connect the AC Power Connection (18) and/or the DC Power Connection (19) to the
respective power outlet(s). When connecting devices, do so with the studio volume turned
down as some devices may emit an unpleasant sound until properly configured to accept
incoming clock signal.
Isochrone Trinity User Manual
10
