● OVEN - Flashes when Trinity is first turned on and remains glowing when the oven
reaches its operating temperature.
15. INFO Button
Press to display further information on the SOURCE. Press again or wait ten seconds to
return.
16. HD Pull Down Select Buttons
Toggles -0.1% pull down On or Off for each HD channel. Press HD button for the given
channel(s) to confirm edit(s).
17. SD Video Select Button
Use this button to select the format that will be present at rear panel outputs SD 3 & 4.
This is an instant change which does not require confirmation.

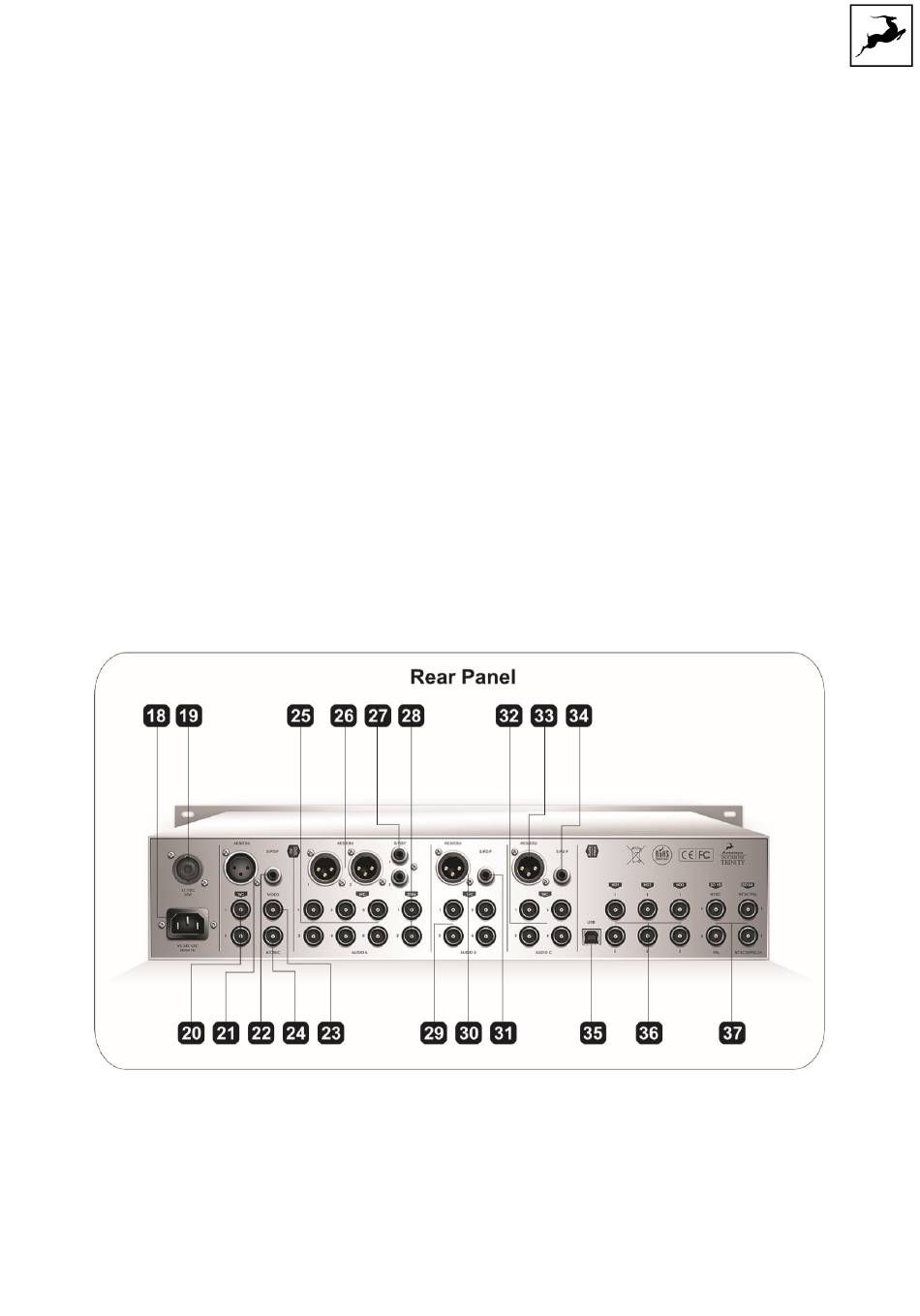

REAR PANEL EXPLAINED
18. AC Power Socket
The IES AC Connection supports an input range of 90-250 VAC. This enables the device
to automatically accommodate mains voltages in any country.
Isochrone Trinity User Manual
14
